    Represents a @link Features::VehicleDesign::StaticCurb Features::VehicleDesign::StaticCurb@endlink  builder
    used to create or edit static curb feature
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateStaticCurbBuilder  Features::VehicleDesignCollection::CreateStaticCurbBuilder @endlink  <br>

Default values. More...

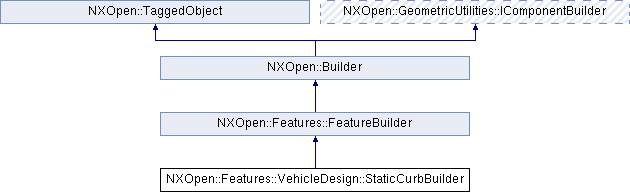

Inheritance diagram for NXOpen::Features::VehicleDesign::StaticCurbBuilder:

Public Types
enum	PositionType { PositionTypeFront, PositionTypeRear, PositionTypeBoth }
	Represents the static curb positions. More...

enum	RequirementsControlType { RequirementsControlTypeStandardDriven, RequirementsControlTypeUserDefined }
	Represents the requirements control types to define the static curb. More...

enum	VisualizationType { VisualizationTypeCurve, VisualizationTypeSurface, VisualizationTypeCurveandSurface }
	Represents the visualization types of the output. More...

Public Member Functions
NXOpen::Expression *	FrontAngle ()
	Returns the expression containing the front angle.

NXString	FrontLoading ()
	Returns the loading applied to the vehicle front used in the static curb.

NXOpen::ScCollector *	FrontMeasuredFaces ()
	Returns the selected front faces for measurement.

NXOpen::Expression *	FrontOffset ()
	Returns the expression containing the front offset.

NXOpen::Features::VehicleDesign::StaticCurbBuilder::PositionType	Position ()
	Returns the static curb position.

NXOpen::Expression *	RearAngle ()
	Returns the expression containing the rear angle.

NXString	RearLoading ()
	Returns the loading applied to the vehicle rear used in the static curb.

NXOpen::ScCollector *	RearMeasuredFaces ()
	Returns the selected rear faces for measurement.

NXOpen::Expression *	RearOffset ()
	Returns the expression containing the rear offset.

NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControlType	RequirementsControl ()
	Returns the requirements control for standard driven or user defined.

void	SetFrontLoading (const NXString &frontLoading)
	Sets the loading applied to the vehicle front used in the static curb.

void	SetFrontLoading (const char *frontLoading)
	Sets the loading applied to the vehicle front used in the static curb.

void	SetPosition (NXOpen::Features::VehicleDesign::StaticCurbBuilder::PositionType position)
	Sets the static curb position.

void	SetRearLoading (const NXString &rearLoading)
	Sets the loading applied to the vehicle rear used in the static curb.

void	SetRearLoading (const char *rearLoading)
	Sets the loading applied to the vehicle rear used in the static curb.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControlType requirementsControlType)
	Sets the requirements control for standard driven or user defined.

void	SetShowDistanceMeasurement (bool showDistanceMeasurement)
	Sets the value to show distance measurement.

void	SetStandard (const NXString &standard)
	Sets the standard used to define the static curb.

void	SetStandard (const char *standard)
	Sets the standard used to define the static curb.

void	SetVisualization (NXOpen::Features::VehicleDesign::StaticCurbBuilder::VisualizationType visualization)
	Sets the visualization type of the static curb output.

bool	ShowDistanceMeasurement ()
	Returns the value to show distance measurement.

NXString	Standard ()
	Returns the standard used to define the static curb.

NXOpen::Features::VehicleDesign::StaticCurbBuilder::VisualizationType	Visualization ()
	Returns the visualization type of the static curb output.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::VehicleDesign::StaticCurb Features::VehicleDesign::StaticCurb@endlink  builder
    used to create or edit static curb feature
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateStaticCurbBuilder  Features::VehicleDesignCollection::CreateStaticCurbBuilder @endlink  <br>

Default values.

Property

Value

Position

Front

RequirementsControl

StandardDriven

Visualization

Surface

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::StaticCurbBuilder::PositionType

Represents the static curb positions.

Enumerator:

PositionTypeFront	Front.
PositionTypeRear	Rear.
PositionTypeBoth	Both.

enum NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControlType

Represents the requirements control types to define the static curb.

Enumerator:

RequirementsControlTypeStandardDriven	Standard Driven.
RequirementsControlTypeUserDefined	User Defined.

enum NXOpen::Features::VehicleDesign::StaticCurbBuilder::VisualizationType

Represents the visualization types of the output.

Enumerator:

VisualizationTypeCurve	Curve.
VisualizationTypeSurface	Surface.
VisualizationTypeCurveandSurface	Curves and Surface.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::VehicleDesign::StaticCurbBuilder::FrontAngle ( )

Returns the expression containing the front angle.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::StaticCurbBuilder::FrontLoading ( )

Returns the loading applied to the vehicle front used in the static curb.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::StaticCurbBuilder::FrontMeasuredFaces ( )

Returns the selected front faces for measurement.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::StaticCurbBuilder::FrontOffset ( )

Returns the expression containing the front offset.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::StaticCurbBuilder::PositionType NXOpen::Features::VehicleDesign::StaticCurbBuilder::Position ( )

Returns the static curb position.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::StaticCurbBuilder::RearAngle ( )

Returns the expression containing the rear angle.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::StaticCurbBuilder::RearLoading ( )

Returns the loading applied to the vehicle rear used in the static curb.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::StaticCurbBuilder::RearMeasuredFaces ( )

Returns the selected rear faces for measurement.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::StaticCurbBuilder::RearOffset ( )

Returns the expression containing the rear offset.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControlType NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControl ( )

Returns the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetFrontLoading ( const NXString & frontLoading )

Sets the loading applied to the vehicle front used in the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontLoading frontloading

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetFrontLoading ( const char * frontLoading )

Sets the loading applied to the vehicle front used in the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontLoading frontloading

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetPosition ( NXOpen::Features::VehicleDesign::StaticCurbBuilder::PositionType position )

Sets the static curb position.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

position position

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetRearLoading ( const NXString & rearLoading )

Sets the loading applied to the vehicle rear used in the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearLoading rearloading

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetRearLoading ( const char * rearLoading )

Sets the loading applied to the vehicle rear used in the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearLoading rearloading

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::StaticCurbBuilder::RequirementsControlType requirementsControlType )

Sets the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirementsControlType requirementscontroltype

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetShowDistanceMeasurement ( bool showDistanceMeasurement )

Sets the value to show distance measurement.

       True will show the distance measurement. False will hide the distance measurement.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showDistanceMeasurement showdistancemeasurement

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetStandard ( const NXString & standard )

Sets the standard used to define the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetStandard ( const char * standard )

Sets the standard used to define the static curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::StaticCurbBuilder::SetVisualization ( NXOpen::Features::VehicleDesign::StaticCurbBuilder::VisualizationType visualization )

Sets the visualization type of the static curb output.

       See @link Features::VehicleDesign::StaticCurbBuilder::VisualizationType Features::VehicleDesign::StaticCurbBuilder::VisualizationType@endlink  for valid values.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

visualization visualization

bool NXOpen::Features::VehicleDesign::StaticCurbBuilder::ShowDistanceMeasurement ( )

Returns the value to show distance measurement.

       True will show the distance measurement. False will hide the distance measurement.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::StaticCurbBuilder::Standard ( )

Returns the standard used to define the static curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::StaticCurbBuilder::VisualizationType NXOpen::Features::VehicleDesign::StaticCurbBuilder::Visualization ( )

Returns the visualization type of the static curb output.

       See @link Features::VehicleDesign::StaticCurbBuilder::VisualizationType Features::VehicleDesign::StaticCurbBuilder::VisualizationType@endlink  for valid values.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_StaticCurbBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
