NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder Class Reference

Represents a @link Features::VehicleDesign::SeatBeltAnchorage Features::VehicleDesign::SeatBeltAnchorage@endlink  builder
 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateSeatBeltAnchorageBuilder  Features::VehicleDesignCollection::CreateSeatBeltAnchorageBuilder @endlink  <br>

Default values. More...

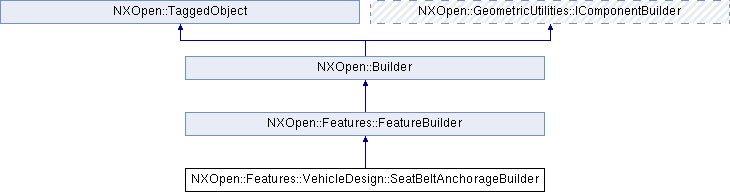

Inheritance diagram for NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder:

Public Types
enum	AnchorageLocationTypes { AnchorageLocationTypesVehicleStructure, AnchorageLocationTypesSeatAssembly }
	the seat belt anchorage location type More...
enum	RoutingTypes { RoutingTypesOutsideSeatThruSeatSpring, RoutingTypesToAnchorage }
	the seat belt routing type More...
enum	SeatPositionTypes { SeatPositionTypesLeft, SeatPositionTypesRight, SeatPositionTypesNotOutboard }
	the seat position type More...
enum	SeatTypes { SeatTypesMovableFront, SeatTypesMovableRear, SeatTypesFixed }
	the seat type More...
enum	StandardTypes { StandardTypesJ383SeatBeltAnchorage, StandardTypesJ1369ChildRestraintTetherStraps, StandardTypesBothJ383AndJ1369 }
	the standard type More...

Public Member Functions
NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocationTypes	AnchorageLocation ()
	Returns the anchorage location type Created in NX6.0.0.
double	BackAngleDbl ()
	Returns the value of back angle Created in NX6.0.0.
NXOpen::Expression *	BackAngleDim ()
	Returns the dimension expression for back angle Created in NX6.0.0.
NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::RoutingTypes	BeltRouting ()
	Returns the belt routing type Created in NX6.0.0.
NXOpen::Expression *	FloorHeightDim ()
	Returns the dimension expression for floor height Created in NX6.0.0.
void	J1369Illu ()
	Shows an illustration picture for standard j1369 Created in NX6.0.0.
void	J383Illu ()
	Shows an illustration picture for standard j383 Created in NX6.0.0.
NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPositionTypes	SeatPosition ()
	Returns the seat position type Created in NX6.0.0.
NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatTypes	SeatType ()
	Returns the seat type Created in NX6.0.0.
void	SetAnchorageLocation (NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocationTypes anchorageLocation)
	Sets the anchorage location type Created in NX6.0.0.
void	SetBackAngleDbl (double backAngleDbl)
	Sets the value of back angle Created in NX6.0.0.
void	SetBeltRouting (NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::RoutingTypes beltRouting)
	Sets the belt routing type Created in NX6.0.0.
void	SetSeatPosition (NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPositionTypes seatPosition)
	Sets the seat position type Created in NX6.0.0.
void	SetSeatType (NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatTypes seatType)
	Sets the seat type Created in NX6.0.0.
void	SetSgrpPoint (NXOpen::Point *sgrpPoint)
	Sets the SgRp point Created in NX6.0.0.
void	SetStandard (NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::StandardTypes standard)
	Sets the standard for seat belt anchorage Created in NX6.0.0.
NXOpen::Point *	SgrpPoint ()
	Returns the SgRp point Created in NX6.0.0.
NXOpen::Expression *	SgrpXvalDim ()
	Returns the dimension expression for the X coordinate of SgRp Created in NX6.0.0.
NXOpen::Expression *	SgrpYvalDim ()
	Returns the dimension expression for the Y coordinate of SgRp Created in NX6.0.0.
NXOpen::Expression *	SgrpZvalDim ()
	Returns the dimension expression for the Z coordinate of SgRp Created in NX6.0.0.
NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::StandardTypes	Standard ()
	Returns the standard for seat belt anchorage Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::VehicleDesign::SeatBeltAnchorage Features::VehicleDesign::SeatBeltAnchorage@endlink  builder
 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateSeatBeltAnchorageBuilder  Features::VehicleDesignCollection::CreateSeatBeltAnchorageBuilder @endlink  <br>

Default values.

Property	Value
AnchorageLocation	VehicleStructure
BackAngleDbl	22
BackAngleDim.Value	22
BeltRouting	OutsideSeatThruSeatSpring
FloorHeightDim.Value	325 (millimeters part), 12.8 (inches part)
SeatPosition	Left
SeatType	MovableFront
SgrpXvalDim.Value	1500 (millimeters part), 59.06 (inches part)
SgrpYvalDim.Value	-400 (millimeters part), -15.75 (inches part)
SgrpZvalDim.Value	650 (millimeters part), 25.59 (inches part)
Standard	J383SeatBeltAnchorage

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocationTypes

the seat belt anchorage location type

Enumerator:

AnchorageLocationTypesVehicleStructure	vehicle structure
AnchorageLocationTypesSeatAssembly	seat assembly

enum NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::RoutingTypes

the seat belt routing type

Enumerator:

RoutingTypesOutsideSeatThruSeatSpring	outside
RoutingTypesToAnchorage	to anchorage

enum NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPositionTypes

the seat position type

Enumerator:

SeatPositionTypesLeft	left
SeatPositionTypesRight	right
SeatPositionTypesNotOutboard	non-outboard

enum NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatTypes

the seat type

Enumerator:

SeatTypesMovableFront	front
SeatTypesMovableRear	rear
SeatTypesFixed	fixed

enum NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::StandardTypes

the standard type

Enumerator:

StandardTypesJ383SeatBeltAnchorage	j383
StandardTypesJ1369ChildRestraintTetherStraps	j1369
StandardTypesBothJ383AndJ1369	both

Member Function Documentation

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocationTypes NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocation

(

)

Returns the anchorage location type
Created in NX6.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::BackAngleDbl

(

)

Returns the value of back angle
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::BackAngleDim

(

)

Returns the dimension expression for back angle
Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::RoutingTypes NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::BeltRouting

(

)

Returns the belt routing type
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::FloorHeightDim

(

)

Returns the dimension expression for floor height
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::J1369Illu

(

)

Shows an illustration picture for standard j1369
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::J383Illu

(

)

Shows an illustration picture for standard j383
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPositionTypes NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPosition

(

)

Returns the seat position type
Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatTypes NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatType

(

)

Returns the seat type
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetAnchorageLocation

(

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::AnchorageLocationTypes

anchorageLocation

)

Sets the anchorage location type
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

anchorageLocation

anchoragelocation

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetBackAngleDbl

(

double

backAngleDbl

)

Sets the value of back angle
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

backAngleDbl

backangledbl

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetBeltRouting

(

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::RoutingTypes

beltRouting

)

Sets the belt routing type
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

beltRouting

beltrouting

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetSeatPosition

(

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatPositionTypes

seatPosition

)

Sets the seat position type
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

seatPosition

seatposition

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetSeatType

(

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SeatTypes

seatType

)

Sets the seat type
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

seatType

seattype

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetSgrpPoint

(

NXOpen::Point *

sgrpPoint

)

Sets the SgRp point
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sgrpPoint

sgrppoint

void NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SetStandard

(

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::StandardTypes

standard

)

Sets the standard for seat belt anchorage
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard

standard

NXOpen::Point* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SgrpPoint

(

)

Returns the SgRp point
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SgrpXvalDim

(

)

Returns the dimension expression for the X coordinate of SgRp
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SgrpYvalDim

(

)

Returns the dimension expression for the Y coordinate of SgRp
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::SgrpZvalDim

(

)

Returns the dimension expression for the Z coordinate of SgRp
Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::StandardTypes NXOpen::Features::VehicleDesign::SeatBeltAnchorageBuilder::Standard

(

)

Returns the standard for seat belt anchorage
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_VehicleDesign_SeatBeltAnchorageBuilder.hxx
