Represents a @link Features::VehicleDesign::ReflectionData Features::VehicleDesign::ReflectionData@endlink  builder
 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateReflectionDataBuilder  Features::VehicleDesignCollection::CreateReflectionDataBuilder @endlink  <br>

Default values. More...

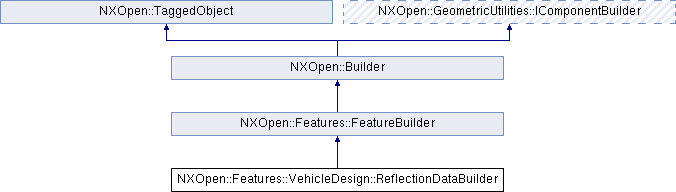

Inheritance diagram for NXOpen::Features::VehicleDesign::ReflectionDataBuilder:

Public Types
enum	ResolutionType { ResolutionTypeLow, ResolutionTypeMedium, ResolutionTypeHigh, ResolutionTypeCustomized }
	the resolution type More...

Public Member Functions
NXOpen::Point *	EyePoint ()
	Returns the eye point Created in NX6.0.0.

bool	IsReflectData ()
	Returns whether to create reflection data as output or not Created in NX6.0.0.

bool	IsReflectTraceCurve ()
	Returns whether to create reflection trace curves as output or not Created in NX6.0.0.

bool	IsRefractData ()
	Returns whether to create refraction data as output or not Created in NX6.0.0.

bool	IsRefractTraceCurve ()
	Returns whether to create refraction trace curves as output or not Created in NX6.0.0.

int	ReflectAccuracy ()
	Returns the customized reflection accuracy, which is the number of dispersed points for the input target objects Created in NX6.0.0.

NXOpen::ScCollector *	ReflectionObject ()
	Returns the reflection object to reflect the input target objects Created in NX6.0.0.

double	RefractionIndex ()
	Returns the refraction index Created in NX6.0.0.

NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ResolutionType	Resolution ()
	Returns the resolution type Created in NX6.0.0.

bool	ReverseDir ()
	Returns whether the direction of reflection objects is reversed to determine their thickness Created in NX6.0.0.

void	SetEyePoint (NXOpen::Point *eyePoint)
	Sets the eye point Created in NX6.0.0.

void	SetReflectAccuracy (int reflectAccuracy)
	Sets the customized reflection accuracy, which is the number of dispersed points for the input target objects Created in NX6.0.0.

void	SetReflectData (bool isReflectData)
	Sets whether to create reflection data as output or not Created in NX6.0.0.

void	SetReflectTraceCurve (bool isReflectTraceCurve)
	Sets whether to create reflection trace curves as output or not Created in NX6.0.0.

void	SetRefractData (bool isRefractData)
	Sets whether to create refraction data as output or not Created in NX6.0.0.

void	SetRefractionIndex (double refractionIndex)
	Sets the refraction index Created in NX6.0.0.

void	SetRefractTraceCurve (bool isRefractTraceCurve)
	Sets whether to create refraction trace curves as output or not Created in NX6.0.0.

void	SetResolution (NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ResolutionType resolution)
	Sets the resolution type Created in NX6.0.0.

void	SetReverseDir (bool reverseDir)
	Sets whether the direction of reflection objects is reversed to determine their thickness Created in NX6.0.0.

void	SetThickness (double thickness)
	Sets the thickness of the reflection objects Created in NX6.0.0.

NXOpen::Section *	TargetObject ()
	Returns the target object to be reflected on the faces and/or planes the target object Created in NX6.0.0.

double	Thickness ()
	Returns the thickness of the reflection objects Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::VehicleDesign::ReflectionData Features::VehicleDesign::ReflectionData@endlink  builder
 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateReflectionDataBuilder  Features::VehicleDesignCollection::CreateReflectionDataBuilder @endlink  <br>

Default values.

Property

Value

IsReflectData

1

IsReflectTraceCurve

0

IsRefractData

0

IsRefractTraceCurve

0

ReflectAccuracy

20

RefractionIndex

1.5

Resolution

Medium

Thickness

5

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ResolutionType

the resolution type

Enumerator:

ResolutionTypeLow	low
ResolutionTypeMedium	medium
ResolutionTypeHigh	high
ResolutionTypeCustomized	user defined

Member Function Documentation

NXOpen::Point* NXOpen::Features::VehicleDesign::ReflectionDataBuilder::EyePoint ( )

Returns the eye point
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::ReflectionDataBuilder::IsReflectData ( )

Returns whether to create reflection data as output or not
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::ReflectionDataBuilder::IsReflectTraceCurve ( )

Returns whether to create reflection trace curves as output or not
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::ReflectionDataBuilder::IsRefractData ( )

Returns whether to create refraction data as output or not
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::ReflectionDataBuilder::IsRefractTraceCurve ( )

Returns whether to create refraction trace curves as output or not
Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ReflectAccuracy ( )

Returns the customized reflection accuracy, which is the number of dispersed points for the input target objects
Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ReflectionObject ( )

Returns the reflection object to reflect the input target objects
Created in NX6.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::ReflectionDataBuilder::RefractionIndex ( )

Returns the refraction index
Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ResolutionType NXOpen::Features::VehicleDesign::ReflectionDataBuilder::Resolution ( )

Returns the resolution type
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::ReflectionDataBuilder::ReverseDir ( )

Returns whether the direction of reflection objects is reversed to determine their thickness
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::ReflectionDataBuilder::SetEyePoint ( NXOpen::Point * eyePoint )

Sets the eye point
Created in NX6.0.0.
