    Represents a @link Features::VehicleDesign::DynamicCurb Features::VehicleDesign::DynamicCurb@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateDynamicCurbBuilder  Features::VehicleDesignCollection::CreateDynamicCurbBuilder @endlink  <br>

Default values. More...

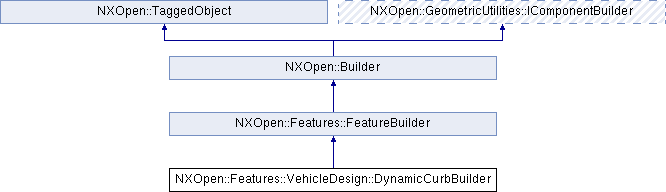

Inheritance diagram for NXOpen::Features::VehicleDesign::DynamicCurbBuilder:

Public Types
enum	MethodType { MethodTypeHorizontal, MethodTypeVerticalTangent, MethodTypeParallelTangent }
	Represents the type of inner line to create dynamic curb. More...

enum	PositionType { PositionTypeFront, PositionTypeRear, PositionTypeBoth }
	Represents the dynamic curb positions. More...

enum	RequirementsControlType { RequirementsControlTypeStandardDriven, RequirementsControlTypeUserDefined }
	Represents the requirements control types to define the dynamic curb. More...

enum	VisualizationType { VisualizationTypeCurve, VisualizationTypeSurface, VisualizationTypeCurveSurface }
	Represents the visualization types of the output. More...

enum	WheelType { WheelTypeStaticRadius, WheelTypeDiameter }
	Represents the type of the wheel size option for dynamic curb. More...

Public Member Functions
NXOpen::Expression *	FrontInnerLength ()
	Returns the expression defining the length of the inner line in front for dynamic curb.

NXOpen::Expression *	FrontInnerOffset ()
	Returns the expression defining the value of inner offset in front for dynamic curb.

NXOpen::Expression *	FrontOuterOffset ()
	Returns the expression defining the value of outer offset in front for dynamic curb.

NXOpen::ScCollector *	FrontSelector ()
	Returns the faces representing the front car body geometry for the measurement.

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::MethodType	InnerLineType ()
	Returns the inner line type for dynamic curb.

NXString	Loading ()
	Returns the loading used in the dynamic curb.

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::PositionType	Position ()
	Returns the dynamic curb position.

NXOpen::Expression *	RearInnerLength ()
	Returns the expression defining the length of the inner line in rear for dynamic curb.

NXOpen::Expression *	RearInnerOffset ()
	Returns the expression defining the value of inner offset in rear for dynamic curb.

NXOpen::Expression *	RearOuterOffset ()
	Returns the expression defining the value of outer offset in rear for dynamic curb.

NXOpen::ScCollector *	RearSelector ()
	Returns the faces representing the rear car body geometry for the measurement.

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControlType	RequirementsControl ()
	Returns the requirements control for standard driven or user defined.

void	SetInnerLineType (NXOpen::Features::VehicleDesign::DynamicCurbBuilder::MethodType innerLineType)
	Sets the inner line type for dynamic curb.

void	SetLoading (const NXString &loading)
	Sets the loading used in the dynamic curb.

void	SetLoading (const char *loading)
	Sets the loading used in the dynamic curb.

void	SetPosition (NXOpen::Features::VehicleDesign::DynamicCurbBuilder::PositionType position)
	Sets the dynamic curb position.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControlType requirementsControl)
	Sets the requirements control for standard driven or user defined.

void	SetShowClearance (bool showClearance)
	Sets the indication if the distance measurement will be shown.

void	SetStandard (const NXString &standard)
	Sets the standard used to define the dynamic curb.

void	SetStandard (const char *standard)
	Sets the standard used to define the dynamic curb.

void	SetVisualization (NXOpen::Features::VehicleDesign::DynamicCurbBuilder::VisualizationType visualization)
	Sets the visualization type of the dynamic curb output.

void	SetWheelSize (NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelType wheelSize)
	Sets the wheel size option which determines the size of the wheels in the dynamic curb.

bool	ShowClearance ()
	Returns the indication if the distance measurement will be shown.

NXString	Standard ()
	Returns the standard used to define the dynamic curb.

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::VisualizationType	Visualization ()
	Returns the visualization type of the dynamic curb output.

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelType	WheelSize ()
	Returns the wheel size option which determines the size of the wheels in the dynamic curb.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::VehicleDesign::DynamicCurb Features::VehicleDesign::DynamicCurb@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateDynamicCurbBuilder  Features::VehicleDesignCollection::CreateDynamicCurbBuilder @endlink  <br>

Default values.

Property

Value

InnerLineType

Horizontal

Position

Front

RequirementsControl

StandardDriven

ShowClearance

0

Visualization

Surface

WheelSize

StaticRadius

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::DynamicCurbBuilder::MethodType

Represents the type of inner line to create dynamic curb.

Enumerator:

MethodTypeHorizontal	horizontal
MethodTypeVerticalTangent	vertical tangent
MethodTypeParallelTangent	parallel tangent

enum NXOpen::Features::VehicleDesign::DynamicCurbBuilder::PositionType

Represents the dynamic curb positions.

Enumerator:

PositionTypeFront	front
PositionTypeRear	rear
PositionTypeBoth	both

enum NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControlType

Represents the requirements control types to define the dynamic curb.

Enumerator:

RequirementsControlTypeStandardDriven	standard driven
RequirementsControlTypeUserDefined	user defined

enum NXOpen::Features::VehicleDesign::DynamicCurbBuilder::VisualizationType

Represents the visualization types of the output.

Enumerator:

VisualizationTypeCurve	curve
VisualizationTypeSurface	surface
VisualizationTypeCurveSurface	curve surface

enum NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelType

Represents the type of the wheel size option for dynamic curb.

Enumerator:

WheelTypeStaticRadius	static radius
WheelTypeDiameter	diameter

Member Function Documentation

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::FrontInnerLength ( )

Returns the expression defining the length of the inner line in front for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::FrontInnerOffset ( )

Returns the expression defining the value of inner offset in front for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::FrontOuterOffset ( )

Returns the expression defining the value of outer offset in front for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::FrontSelector ( )

Returns the faces representing the front car body geometry for the measurement.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::MethodType NXOpen::Features::VehicleDesign::DynamicCurbBuilder::InnerLineType ( )

Returns the inner line type for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::DynamicCurbBuilder::Loading ( )

Returns the loading used in the dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::PositionType NXOpen::Features::VehicleDesign::DynamicCurbBuilder::Position ( )

Returns the dynamic curb position.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RearInnerLength ( )

Returns the expression defining the length of the inner line in rear for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RearInnerOffset ( )

Returns the expression defining the value of inner offset in rear for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RearOuterOffset ( )

Returns the expression defining the value of outer offset in rear for dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RearSelector ( )

Returns the faces representing the rear car body geometry for the measurement.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControlType NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControl ( )

Returns the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetInnerLineType ( NXOpen::Features::VehicleDesign::DynamicCurbBuilder::MethodType innerLineType )

Sets the inner line type for dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

innerLineType innerlinetype

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetLoading ( const NXString & loading )

Sets the loading used in the dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetLoading ( const char * loading )

Sets the loading used in the dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetPosition ( NXOpen::Features::VehicleDesign::DynamicCurbBuilder::PositionType position )

Sets the dynamic curb position.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

position position

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::DynamicCurbBuilder::RequirementsControlType requirementsControl )

Sets the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirementsControl requirementscontrol

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetShowClearance ( bool showClearance )

Sets the indication if the distance measurement will be shown.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showClearance showclearance

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetStandard ( const NXString & standard )

Sets the standard used to define the dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetStandard ( const char * standard )

Sets the standard used to define the dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetVisualization ( NXOpen::Features::VehicleDesign::DynamicCurbBuilder::VisualizationType visualization )

Sets the visualization type of the dynamic curb output.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

visualization visualization

void NXOpen::Features::VehicleDesign::DynamicCurbBuilder::SetWheelSize ( NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelType wheelSize )

Sets the wheel size option which determines the size of the wheels in the dynamic curb.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wheelSize wheelsize

bool NXOpen::Features::VehicleDesign::DynamicCurbBuilder::ShowClearance ( )

Returns the indication if the distance measurement will be shown.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::DynamicCurbBuilder::Standard ( )

Returns the standard used to define the dynamic curb.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::VisualizationType NXOpen::Features::VehicleDesign::DynamicCurbBuilder::Visualization ( )

Returns the visualization type of the dynamic curb output.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelType NXOpen::Features::VehicleDesign::DynamicCurbBuilder::WheelSize ( )

Returns the wheel size option which determines the size of the wheels in the dynamic curb.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_DynamicCurbBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
