Represents a Features::VehicleDesign::CrashBarrier builder to create and edit a vehicle design crash barrier. More...

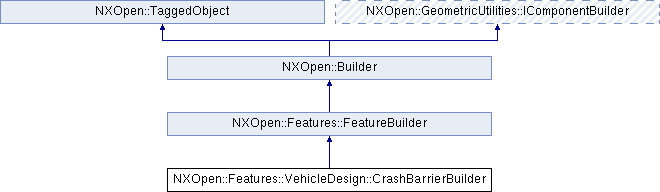

Inheritance diagram for NXOpen::Features::VehicleDesign::CrashBarrierBuilder:

Public Types
enum	CrossPositionType { CrossPositionTypeCentered, CrossPositionTypeOverlap }
	Represents the cross position types. More...

enum	OverlapSideType { OverlapSideTypeRight, OverlapSideTypeLeft }
	Represents the overlap side types for the front and rear barriers. More...

enum	PositionObjectType { PositionObjectTypeBaseData, PositionObjectTypeVehicleObject }
	Represents the position object types. More...

enum	RequirementsControlsControlType { RequirementsControlsControlTypeStandardDriven, RequirementsControlsControlTypeUserDefined }
	Represents the requirements control types to define the crash barrier. More...

enum	ShapeType { ShapeTypeRCAR2004Front, ShapeTypeRCAR2004Rear, ShapeTypeRcar2006, ShapeTypeIihs2009, ShapeTypeIIHS2009MultiDomain }
	Represents the shape types. More...

enum	SideOverlapSideType { SideOverlapSideTypeFront, SideOverlapSideTypeRear }
	Represents the overlap side types for side barrier. More...

enum	SidePositionType { SidePositionTypeLeft, SidePositionTypeRight, SidePositionTypeBoth }
	Represents the position types for side barrier. More...

Public Member Functions
bool	ActiveFront ()
	Returns the value indicating if the front barrier is displayed.

bool	ActiveRear ()
	Returns the value indicating if the rear barrier is displayed.

bool	ActiveSide ()
	Returns the value indicating if the side barrier is displayed.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType	FrontCrossPosition ()
	Returns the cross position type of front barrier.

NXOpen::Expression *	FrontHeightAboveRoad ()
	Returns the expression containing the height above road value of front barrier.

NXString	FrontLoading ()
	Returns the loading applied to the vehicle front used in the crash barrier.

NXOpen::Expression *	FrontOverlapPercentage ()
	Returns the expression containing the overlap percentage of front barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType	FrontOverlapSide ()
	Returns the overlap side type of front barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType	FrontPositionObject ()
	Returns the positioing object type of front barrier.

NXOpen::ScCollector *	FrontSelectPositioningObject ()
	Returns the positioing objects of front barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType	FrontShape ()
	Returns the shape type of front barrier.

NXOpen::Expression *	FrontShift ()
	Returns the expression containing the shift value of front barrier.

bool	FrontUserDefineWidth ()
	Returns the user defined width type of front barrier.

NXOpen::Expression *	FrontUserDefineWidthValue ()
	Returns the expression containing the user defined width value of front barrier.

NXOpen::ScCollector *	LeftSideSelectPositioningObject ()
	Returns the left side position objects of side barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType	RearCrossPosition ()
	Returns the cross position type of rear barrier.

NXOpen::Expression *	RearHeightAboveRoad ()
	Returns the expression containing the height above road value of rear barrier.

NXString	RearLoading ()
	Returns the loading applied to the vehicle rear used in the crash barrier.

NXOpen::Expression *	RearOverlapPercentage ()
	Returns the expression containing the user defined width value of rear barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType	RearOverlapSide ()
	Returns the overlap side type of rear barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType	RearPositionObject ()
	Returns the user defined position object type of rear barrier.

NXOpen::ScCollector *	RearSelectPositioningObject ()
	Returns the user defined position objects of rear barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType	RearShape ()
	Returns the shape type of rear barrier.

NXOpen::Expression *	RearShift ()
	Returns the expression containing the shift value of rear barrier.

bool	RearUserDefineWidth ()
	Returns the user defined width type of rear barrier.

NXOpen::Expression *	RearUserDefineWidthValue ()
	Returns the expression containing the user defined width value of rear barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControlsControlType	RequirementsControl ()
	Returns the requirements control for standard driven or user defined.

NXOpen::ScCollector *	RightSideSelectPositioningObject ()
	Returns the right side position objects of side barrier.

void	SetActiveFront (bool activeFront)
	Sets the value indicating if the front barrier is displayed.

void	SetActiveRear (bool activeRear)
	Sets the value indicating if the rear barrier is displayed.

void	SetActiveSide (bool activeSide)
	Sets the value indicating if the side barrier is displayed.

void	SetFrontCrossPosition (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType frontCrossPosition)
	Sets the cross position type of front barrier.

void	SetFrontLoading (const NXString &frontLoading)
	Sets the loading applied to the vehicle front used in the crash barrier.

void	SetFrontLoading (const char *frontLoading)
	Sets the loading applied to the vehicle front used in the crash barrier.

void	SetFrontOverlapSide (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType frontOverlapSide)
	Sets the overlap side type of front barrier.

void	SetFrontPositionObject (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType frontPositionObject)
	Sets the positioing object type of front barrier.

void	SetFrontShape (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType frontShap)
	Sets the shape type of front barrier.

void	SetFrontUserDefineWidth (bool frontUserDefineWidth)
	Sets the user defined width type of front barrier.

void	SetRearCrossPosition (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType rearCrossPosition)
	Sets the cross position type of rear barrier.

void	SetRearLoading (const NXString &rearLoading)
	Sets the loading applied to the vehicle rear used in the crash barrier.

void	SetRearLoading (const char *rearLoading)
	Sets the loading applied to the vehicle rear used in the crash barrier.

void	SetRearOverlapSide (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType rearOverlapSide)
	Sets the overlap side type of rear barrier.

void	SetRearPositionObject (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType rearPositionObject)
	Sets the user defined position object type of rear barrier.

void	SetRearShape (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType rearShape)
	Sets the shape type of rear barrier.

void	SetRearUserDefineWidth (bool rearUserDefineWidth)
	Sets the user defined width type of rear barrier.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControlsControlType requirement)
	Sets the requirements control for standard driven or user defined.

void	SetSideCrossPosition (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType sideCrossPosition)
	Sets the cross position type of side barrier.

void	SetSideLoading (const NXString &sideLoading)
	Sets the loading applied to the vehicle side used in the crash barrier.

void	SetSideLoading (const char *sideLoading)
	Sets the loading applied to the vehicle side used in the crash barrier.

void	SetSideOverlapSide (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSideType sideOverlapSide)
	Sets the overlap side type of side barrier.

void	SetSidePosition (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionType sidePosition)
	Sets the position type of side barrier.

void	SetSidePositionObject (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType sidePositionObject)
	Sets the side position object type of side barrier.

void	SetSideShape (NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType sideShape)
	Sets the shape type of side barrier.

void	SetSideUserDefineLength (bool sideUserDefineLength)
	Sets the user defined width type of side barrier.

void	SetStandard (const NXString &standard)
	Sets the standard used to define the crash barrier.

void	SetStandard (const char *standard)
	Sets the standard used to define the crash barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType	SideCrossPosition ()
	Returns the cross position type of side barrier.

NXOpen::Expression *	SideHeightAboveRoad ()
	Returns the expression containing the height above road value of side barrier.

NXString	SideLoading ()
	Returns the loading applied to the vehicle side used in the crash barrier.

NXOpen::Expression *	SideOverlapPercentage ()
	Returns the expression containing the overlap percentage of side barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSideType	SideOverlapSide ()
	Returns the overlap side type of side barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionType	SidePosition ()
	Returns the position type of side barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType	SidePositionObject ()
	Returns the side position object type of side barrier.

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType	SideShape ()
	Returns the shape type of side barrier.

NXOpen::Expression *	SideShift ()
	Returns the expression containing the shift value of side barrier.

bool	SideUserDefineLength ()
	Returns the user defined width type of side barrier.

NXOpen::Expression *	SideUserDefineLengthValue ()
	Returns the expression containing the user defined width value of side barrier.

NXString	Standard ()
	Returns the standard used to define the crash barrier.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::CrashBarrier builder to create and edit a vehicle design crash barrier.

<br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateCrashBarrierBuilder  Features::VehicleDesignCollection::CreateCrashBarrierBuilder @endlink  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType

Represents the cross position types.

Enumerator:

CrossPositionTypeCentered	centered
CrossPositionTypeOverlap	overlap

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType

Represents the overlap side types for the front and rear barriers.

Enumerator:

OverlapSideTypeRight	right
OverlapSideTypeLeft	left

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType

Represents the position object types.

Enumerator:

PositionObjectTypeBaseData	base data
PositionObjectTypeVehicleObject	vehicle object

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControlsControlType

Represents the requirements control types to define the crash barrier.

Enumerator:

RequirementsControlsControlTypeStandardDriven	standard driven
RequirementsControlsControlTypeUserDefined	user defined

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType

Represents the shape types.

Enumerator:

ShapeTypeRCAR2004Front	rcar2004front
ShapeTypeRCAR2004Rear	rcar2004rear
ShapeTypeRcar2006	rcar2006
ShapeTypeIihs2009	iihs2009
ShapeTypeIIHS2009MultiDomain	iihs2009multi domain

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSideType

Represents the overlap side types for side barrier.

Enumerator:

SideOverlapSideTypeFront	front
SideOverlapSideTypeRear	rear

enum NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionType

Represents the position types for side barrier.

Enumerator:

SidePositionTypeLeft	left
SidePositionTypeRight	right
SidePositionTypeBoth	both

Member Function Documentation

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ActiveFront ( )

Returns the value indicating if the front barrier is displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ActiveRear ( )

Returns the value indicating if the rear barrier is displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ActiveSide ( )

Returns the value indicating if the side barrier is displayed.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontCrossPosition ( )

Returns the cross position type of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontHeightAboveRoad ( )

Returns the expression containing the height above road value of front barrier.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontLoading ( )

Returns the loading applied to the vehicle front used in the crash barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontOverlapPercentage ( )

Returns the expression containing the overlap percentage of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontOverlapSide ( )

Returns the overlap side type of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontPositionObject ( )

Returns the positioing object type of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontSelectPositioningObject ( )

Returns the positioing objects of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontShape ( )

Returns the shape type of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontShift ( )

Returns the expression containing the shift value of front barrier.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontUserDefineWidth ( )

Returns the user defined width type of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::FrontUserDefineWidthValue ( )

Returns the expression containing the user defined width value of front barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::LeftSideSelectPositioningObject ( )

Returns the left side position objects of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearCrossPosition ( )

Returns the cross position type of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearHeightAboveRoad ( )

Returns the expression containing the height above road value of rear barrier.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearLoading ( )

Returns the loading applied to the vehicle rear used in the crash barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearOverlapPercentage ( )

Returns the expression containing the user defined width value of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearOverlapSide ( )

Returns the overlap side type of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearPositionObject ( )

Returns the user defined position object type of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearSelectPositioningObject ( )

Returns the user defined position objects of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearShape ( )

Returns the shape type of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearShift ( )

Returns the expression containing the shift value of rear barrier.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearUserDefineWidth ( )

Returns the user defined width type of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RearUserDefineWidthValue ( )

Returns the expression containing the user defined width value of rear barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControlsControlType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControl ( )

Returns the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RightSideSelectPositioningObject ( )

Returns the right side position objects of side barrier.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetActiveFront ( bool activeFront )

Sets the value indicating if the front barrier is displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

activeFront activefront

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetActiveRear ( bool activeRear )

Sets the value indicating if the rear barrier is displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

activeRear activerear

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetActiveSide ( bool activeSide )

Sets the value indicating if the side barrier is displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

activeSide activeside

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontCrossPosition ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType frontCrossPosition )

Sets the cross position type of front barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontCrossPosition frontcrossposition

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontLoading ( const NXString & frontLoading )

Sets the loading applied to the vehicle front used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontLoading frontloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontLoading ( const char * frontLoading )

Sets the loading applied to the vehicle front used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontLoading frontloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontOverlapSide ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType frontOverlapSide )

Sets the overlap side type of front barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontOverlapSide frontoverlapside

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontPositionObject ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType frontPositionObject )

Sets the positioing object type of front barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontPositionObject frontpositionobject

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontShape ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType frontShap )

Sets the shape type of front barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontShap frontshap

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetFrontUserDefineWidth ( bool frontUserDefineWidth )

Sets the user defined width type of front barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontUserDefineWidth frontuserdefinewidth

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearCrossPosition ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType rearCrossPosition )

Sets the cross position type of rear barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearCrossPosition rearcrossposition

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearLoading ( const NXString & rearLoading )

Sets the loading applied to the vehicle rear used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearLoading rearloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearLoading ( const char * rearLoading )

Sets the loading applied to the vehicle rear used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearLoading rearloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearOverlapSide ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::OverlapSideType rearOverlapSide )

Sets the overlap side type of rear barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearOverlapSide rearoverlapside

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearPositionObject ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType rearPositionObject )

Sets the user defined position object type of rear barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearPositionObject rearpositionobject

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearShape ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType rearShape )

Sets the shape type of rear barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearShape rearshape

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRearUserDefineWidth ( bool rearUserDefineWidth )

Sets the user defined width type of rear barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearUserDefineWidth rearuserdefinewidth

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::RequirementsControlsControlType requirement )

Sets the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirement requirement

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideCrossPosition ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType sideCrossPosition )

Sets the cross position type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideCrossPosition sidecrossposition

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideLoading ( const NXString & sideLoading )

Sets the loading applied to the vehicle side used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideLoading sideloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideLoading ( const char * sideLoading )

Sets the loading applied to the vehicle side used in the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideLoading sideloading

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideOverlapSide ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSideType sideOverlapSide )

Sets the overlap side type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideOverlapSide sideoverlapside

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSidePosition ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionType sidePosition )

Sets the position type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sidePosition sideposition

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSidePositionObject ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType sidePositionObject )

Sets the side position object type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sidePositionObject sidepositionobject

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideShape ( NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType sideShape )

Sets the shape type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideShape sideshape

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetSideUserDefineLength ( bool sideUserDefineLength )

Sets the user defined width type of side barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sideUserDefineLength sideuserdefinelength

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetStandard ( const NXString & standard )

Sets the standard used to define the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SetStandard ( const char * standard )

Sets the standard used to define the crash barrier.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::CrossPositionType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideCrossPosition ( )

Returns the cross position type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideHeightAboveRoad ( )

Returns the expression containing the height above road value of side barrier.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideLoading ( )

Returns the loading applied to the vehicle side used in the crash barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapPercentage ( )

Returns the expression containing the overlap percentage of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSideType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideOverlapSide ( )

Returns the overlap side type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePosition ( )

Returns the position type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::PositionObjectType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SidePositionObject ( )

Returns the side position object type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CrashBarrierBuilder::ShapeType NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideShape ( )

Returns the shape type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideShift ( )

Returns the expression containing the shift value of side barrier.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideUserDefineLength ( )

Returns the user defined width type of side barrier.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CrashBarrierBuilder::SideUserDefineLengthValue ( )

Returns the expression containing the user defined width value of side barrier.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CrashBarrierBuilder::Standard ( )

Returns the standard used to define the crash barrier.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_CrashBarrierBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
