Represents a Features::VehicleDesign::BaseDataBuilder . More...

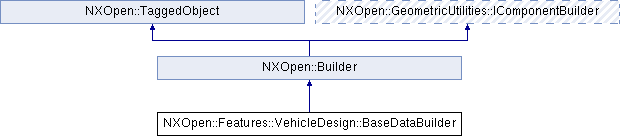

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataBuilder:

Public Member Functions
void	AddLoading (NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *loading)
	Adds a loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , to the base data.

void	AddPassenger (NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *passenger)
	Adds a passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , to the base data.

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *	CreateLoading (NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *pOther)
	Creates an instance of Features::VehicleDesign::BaseDataLoadingBuilder from another instance.

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *	CreatePassenger (NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *pOther)
	Creates an instance of Features::VehicleDesign::BaseDataPassengerBuilder from another instance.

NXOpen::Features::VehicleDesign::BaseDataDriverBuilder *	Driver ()
	Returns the driver builder, which represents a Features::VehicleDesign::BaseDataDriverBuilder .

double	GetBodyWidth ()
	Returns the body width.

double	GetFrontOverhang ()
	Returns the front overhang of the vehicle.

int	GetLoadingCount ()
	Returns the total number of loadings in the base data.

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *	GetNthLoading (int nIndex)
	Returns the nth loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , from the base data.

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *	GetNthPassenger (int nIndex)
	Returns the nth passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , from the base data.

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder *	GetNthWheel (int nWheelIndex)
	Gets the nth wheel.

int	GetPassengerCount ()
	Returns the total number of passengers in the base data.

double	GetRearOverhang ()
	Returns the rear overhang of the vehicle.

double	GetVehicleLength ()
	Returns the overall vehicle length.

double	GetVehicleWidth ()
	Returns the vehicle width.

double	GetWheelbase ()
	Returns the wheelbase of the vehicle.

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *	LoadingDefinition ()
	Returns the loading definition.

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *	PassengerDefinition ()
	Returns the passenger definition.

void	RemoveLoading (NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *loading)
	Removes a loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , from the base data.

void	RemovePassenger (NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *passenger)
	Removes a passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , from the base data.

void	SetBodyWidth (double bodyWidth)
	Sets the body width.

void	SetFrontOverhang (double overhangFront)
	Sets the front overhang of the vehicle.

void	SetRearOverhang (double overhangBack)
	Sets the rear overhang of the vehicle.

void	SetShowSurface (bool showSurface)
	Sets the option to indicate whether to show surface or not.

void	SetShowWireframe (bool showWireframe)
	Sets the option to indicate whether to show curve or not.

void	SetVehicleCategory (const NXString &vehicleCategory)
	Sets the vehicle category.

void	SetVehicleCategory (const char *vehicleCategory)
	Sets the vehicle category.

void	SetVehicleDescription (const NXString &vehicleDescription)
	Sets the name or short description of the vehicle.

void	SetVehicleDescription (const char *vehicleDescription)
	Sets the name or short description of the vehicle.

void	SetVehicleWidth (double vehicleWidth)
	Sets the vehicle width.

void	SetWheelPositionDefinition (NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions positionDefinition)
	Sets the wheel position definition option of the vehicle.

bool	ShowSurface ()
	Returns the option to indicate whether to show surface or not.

bool	ShowWireframe ()
	Returns the option to indicate whether to show curve or not.

NXString	VehicleCategory ()
	Returns the vehicle category.

NXString	VehicleDescription ()
	Returns the name or short description of the vehicle.

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions	WheelPositionDefinition ()
	Returns the wheel position definition option of the vehicle.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataBuilder .

To create a new instance of this class, use Features::VehicleDesignCollection::CreateBaseDataBuilder

Created in NX8.5.0.

Member Function Documentation

void NXOpen::Features::VehicleDesign::BaseDataBuilder::AddLoading ( NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder * loading )

Adds a loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , to the base data.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::BaseDataBuilder::AddPassenger ( NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder * passenger )

Adds a passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , to the base data.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

passenger passenger

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::CreateLoading ( NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder * pOther )

Creates an instance of Features::VehicleDesign::BaseDataLoadingBuilder from another instance.

           If pOther is NULL, the created builder will be initialized with default value.
           If pOther is not NULL, the created builder will be iniialized with pOther's value.
         @return

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pOther data to be initialized from, can be NULL

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::CreatePassenger ( NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder * pOther )

Creates an instance of Features::VehicleDesign::BaseDataPassengerBuilder from another instance.

           If pOther is NULL, the created builder will be initialized with default value.
           If pOther is not NULL, the created builder will be iniialized with pOther's value.
         @return

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pOther Data to be initialized from, can be NULL

NXOpen::Features::VehicleDesign::BaseDataDriverBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::Driver ( )

Returns the driver builder, which represents a Features::VehicleDesign::BaseDataDriverBuilder .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetBodyWidth ( )

Returns the body width.

This value is used for calculating the fields of vision according to US and CDN standards instead of vehicle width.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetFrontOverhang ( )

Returns the front overhang of the vehicle.

           The front overhang is measured from the front wheel center point in the negative x direction.  @return

Created in NX8.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::BaseDataBuilder::GetLoadingCount ( )

Returns the total number of loadings in the base data.

Returns: Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::GetNthLoading ( int nIndex )

Returns the nth loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , from the base data.

Returns: Created in NX8.5.0.

License requirements : None

Parameters

nIndex nindex

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::GetNthPassenger ( int nIndex )

Returns the nth passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , from the base data.

Returns: Created in NX8.5.0.

License requirements : None

Parameters

nIndex nindex

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::GetNthWheel ( int nWheelIndex )

Gets the nth wheel.

Returns: Created in NX8.5.0.

License requirements : None

Parameters

nWheelIndex nwheelindex

int NXOpen::Features::VehicleDesign::BaseDataBuilder::GetPassengerCount ( )

Returns the total number of passengers in the base data.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetRearOverhang ( )

Returns the rear overhang of the vehicle.

       The rear overhang is measured from the rear wheel center point in the positive x direction.  @return

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetVehicleLength ( )

Returns the overall vehicle length.

Vehicle length is a computed value and cannot be changed by the user. The underlying formula calculates vehicle length based on wheelbase plus front and back overhang.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetVehicleWidth ( )

Returns the vehicle width.

The vehicle width is calculated outgoing from the vehicle mid plane half of the defined value in positive y direction and as well half of the defined value in negative y direction.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataBuilder::GetWheelbase ( )

Returns the wheelbase of the vehicle.

Wheelbase is a computed value and cannot be changed by the user. The underlying formula calculates wheelbase based on the x coordinate of the rear wheel center point minus the x coordinate of the front wheel center point.

Returns: Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::LoadingDefinition ( )

Returns the loading definition.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder* NXOpen::Features::VehicleDesign::BaseDataBuilder::PassengerDefinition ( )

Returns the passenger definition.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataBuilder::RemoveLoading ( NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder * loading )

Removes a loading, which represents Features::VehicleDesign::BaseDataLoadingBuilder , from the base data.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::BaseDataBuilder::RemovePassenger ( NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder * passenger )

Removes a passenger, which represents Features::VehicleDesign::BaseDataPassengerBuilder , from the base data.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

passenger passenger

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetBodyWidth ( double bodyWidth )

Sets the body width.

This value is used for calculating the fields of vision according to US and CDN standards instead of vehicle width.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

bodyWidth bodywidth

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetFrontOverhang ( double overhangFront )

Sets the front overhang of the vehicle.

           The front overhang is measured from the front wheel center point in the negative x direction.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

overhangFront overhangfront

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetRearOverhang ( double overhangBack )

Sets the rear overhang of the vehicle.

       The rear overhang is measured from the rear wheel center point in the positive x direction.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

overhangBack overhangback

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetShowSurface ( bool showSurface )

Sets the option to indicate whether to show surface or not.

If it is true, the wheel surface is shown.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showSurface showsurface

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetShowWireframe ( bool showWireframe )

Sets the option to indicate whether to show curve or not.

If it is true, the wheel curve is shown.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showWireframe showwireframe

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetVehicleCategory ( const NXString & vehicleCategory )

Sets the vehicle category.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

vehicleCategory vehiclecategory

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetVehicleCategory ( const char * vehicleCategory )

Sets the vehicle category.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

vehicleCategory vehiclecategory

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetVehicleDescription ( const NXString & vehicleDescription )

Sets the name or short description of the vehicle.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

vehicleDescription vehicledescription

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetVehicleDescription ( const char * vehicleDescription )

Sets the name or short description of the vehicle.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

vehicleDescription vehicledescription

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetVehicleWidth ( double vehicleWidth )

Sets the vehicle width.

The vehicle width is calculated outgoing from the vehicle mid plane half of the defined value in positive y direction and as well half of the defined value in negative y direction.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

vehicleWidth vehiclewidth

void NXOpen::Features::VehicleDesign::BaseDataBuilder::SetWheelPositionDefinition ( NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions positionDefinition )

Sets the wheel position definition option of the vehicle.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

positionDefinition positiondefinition

bool NXOpen::Features::VehicleDesign::BaseDataBuilder::ShowSurface ( )

Returns the option to indicate whether to show surface or not.

If it is true, the wheel surface is shown.
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::BaseDataBuilder::ShowWireframe ( )

Returns the option to indicate whether to show curve or not.

If it is true, the wheel curve is shown.
Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataBuilder::VehicleCategory ( )

Returns the vehicle category.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataBuilder::VehicleDescription ( )

Returns the name or short description of the vehicle.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions NXOpen::Features::VehicleDesign::BaseDataBuilder::WheelPositionDefinition ( )

Returns the wheel position definition option of the vehicle.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_BaseDataBuilder.hxx

Public Member Functions

Detailed Description

Member Function Documentation
