Represents a Features::VehicleDesign::BaseDataLoadingBuilder . More...

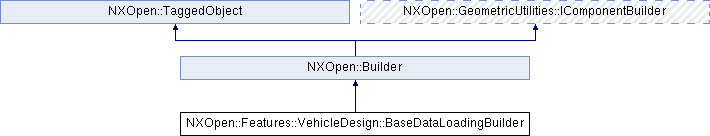

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder:

Public Types
enum	LoadingType { LoadingTypeStandard, LoadingTypeUserDefined }
	This enum represents the vehicle loading types. More...

Public Member Functions
bool	Active ()
	Returns the status to indicate whether the loading is active or not.

void	Assign (NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder *other)
	Assigns value from another loading.

NXOpen::NXColor *	Color ()
	Returns the color of loading.

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions	DataDefinition ()
	Returns the Data Definition option of loading.

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder *	FrontWheel ()
	Returns the front wheel data of this loading.

std::vector< NXString >	GetDescription ()
	Gets the loading descriptions.

NXString	Name ()
	Returns the name of loading.

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder *	RearWheel ()
	Returns the rear wheel data of this loading.

void	SetActive (bool active)
	Sets the status to indicate whether the loading is active or not.

void	SetColor (NXOpen::NXColor *color)
	Sets the color of loading.

void	SetDataDefinition (NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions dataDefinition)
	Sets the Data Definition option of loading.

void	SetDescription (const std::vector< NXString > &description)
	Sets the loading descriptions.

void	SetName (const NXString &name)
	Sets the name of loading.

void	SetName (const char *name)
	Sets the name of loading.

void	SetReferencePlane (NXOpen::DatumPlane *referencePlane)
	Sets the reference plane to represent the loading plane.

void	SetType (NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::LoadingType loadingType)
	Sets the vehicle loading type.

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::LoadingType	Type ()
	Returns the vehicle loading type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataLoadingBuilder .

An instance of this class can be obtained from BaseDataBuilder::CreateLoading

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::LoadingType

This enum represents the vehicle loading types.

Enumerator:

LoadingTypeStandard	Standard - Defined in the registration file, user can not delete it.
LoadingTypeUserDefined	User-Defined - user can add or delete it.

Member Function Documentation

bool NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::Active ( )

Returns the status to indicate whether the loading is active or not.

If it is true, the loading is active.
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::Assign ( NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder * other )

Assigns value from another loading.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

other other

NXOpen::NXColor* NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::Color ( )

Returns the color of loading.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::DataDefinition ( )

Returns the Data Definition option of loading.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder* NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::FrontWheel ( )

Returns the front wheel data of this loading.

Created in NX8.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::GetDescription ( )

Gets the loading descriptions.

Returns: Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::Name ( )

Returns the name of loading.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder* NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::RearWheel ( )

Returns the rear wheel data of this loading.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetActive ( bool active )

Sets the status to indicate whether the loading is active or not.

If it is true, the loading is active.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

active active

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetColor ( NXOpen::NXColor * color )

Sets the color of loading.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetDataDefinition ( NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions dataDefinition )

Sets the Data Definition option of loading.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dataDefinition datadefinition

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetDescription ( const std::vector< NXString > & description )

Sets the loading descriptions.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

description description

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetName ( const NXString & name )

Sets the name of loading.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetName ( const char * name )

Sets the name of loading.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetReferencePlane ( NXOpen::DatumPlane * referencePlane )

Sets the reference plane to represent the loading plane.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

referencePlane referenceplane

void NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::SetType ( NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::LoadingType loadingType )

Sets the vehicle loading type.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loadingType loadingtype

NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::LoadingType NXOpen::Features::VehicleDesign::BaseDataLoadingBuilder::Type ( )

Returns the vehicle loading type.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_BaseDataLoadingBuilder.hxx
