Represents a Features::VehicleDesign::BaseDataPassengerBuilder . More...

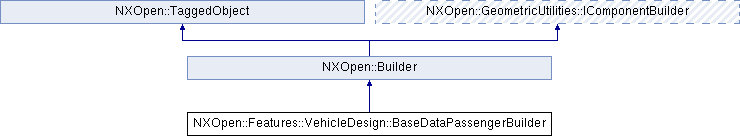

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder:

Public Types
enum	SeatDirectionOptions { SeatDirectionOptionsFrontward, SeatDirectionOptionsBackward, SeatDirectionOptionsLeft, SeatDirectionOptionsRight, SeatDirectionOptionsCustom }
	This enum represents the options to define the passenger's seat direction type. More...

Public Member Functions
bool	Active ()
	Returns the status to indicate whether the passenger is active or not.

void	Assign (NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder *other)
	Assigns values from another passenger.

NXString	Description ()
	Returns the name or short description of the passenger.

double	GetBackAngle ()
	Returns the passenger's back angle.

double	GetHorizontalPointTravel ()
	Returns the passenger's horizontal adjustment in x direction.

double	GetSeatAngle ()
	Returns the passenger's seat angle.

NXOpen::Point *	HeelReferencePoint ()
	Returns the passenger's heel reference point.

bool	HeelReferencePointActive ()
	Returns the status to indicate whether the passenger heel reference point is active or not.

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirectionOptions	SeatDirection ()
	Returns the direction that this passenger is facing.

NXOpen::Point *	SeatReferencePoint ()
	Returns the passenger's seat reference point.

bool	SeatReferencePointActive ()
	Returns the status to indicate whether the passenger seat reference point is active or not.

void	SetActive (bool active)
	Sets the status to indicate whether the passenger is active or not.

void	SetBackAngle (double dValue)
	Sets the passenger's back angle.

void	SetDescription (const NXString &description)
	Sets the name or short description of the passenger.

void	SetDescription (const char *description)
	Sets the name or short description of the passenger.

void	SetHeelReferencePoint (NXOpen::Point *refPoint)
	Sets the passenger's heel reference point.

void	SetHeelReferencePointActive (bool activeStatus)
	Sets the status to indicate whether the passenger heel reference point is active or not.

void	SetHorizontalPointTravel (double dValue)
	Sets the passenger's horizontal adjustment in x direction.

void	SetSeatAngle (double dValue)
	Sets the passenger's seat angle.

void	SetSeatDirection (NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirectionOptions seatDirection)
	Sets the direction that this passenger is facing.

void	SetSeatReferencePoint (NXOpen::Point *refPoint)
	Sets the passenger's seat reference point.

void	SetSeatReferencePointActive (bool activeStatus)
	Sets the status to indicate whether the passenger seat reference point is active or not.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataPassengerBuilder .

An instance of this class can be obtained from BaseDataBuilder::CreatePassenger

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirectionOptions

This enum represents the options to define the passenger's seat direction type.

Enumerator:

SeatDirectionOptionsFrontward	Seat position driving direction.
SeatDirectionOptionsBackward	Seat position opposite to the driving direction.
SeatDirectionOptionsLeft	Seat directed towards the left side of the car.
SeatDirectionOptionsRight	Seat directed towards the right side of the car.
SeatDirectionOptionsCustom	Specify a custom value for the seat position (in deg). 1 to 179: Turning the seat rightwards; 1 to 179: Turning the seat leftwards.

Member Function Documentation

bool NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::Active ( )

Returns the status to indicate whether the passenger is active or not.

If it is true, the passenger is active.
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::Assign ( NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder * other )

Assigns values from another passenger.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

other other

NXString NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::Description ( )

Returns the name or short description of the passenger.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::GetBackAngle ( )

Returns the passenger's back angle.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::GetHorizontalPointTravel ( )

Returns the passenger's horizontal adjustment in x direction.

Returns: Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::GetSeatAngle ( )

Returns the passenger's seat angle.

Returns: Created in NX8.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::HeelReferencePoint ( )

Returns the passenger's heel reference point.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::HeelReferencePointActive ( )

Returns the status to indicate whether the passenger heel reference point is active or not.

If it is true, the passenger heel reference point is active.
Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirectionOptions NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirection ( )

Returns the direction that this passenger is facing.

Created in NX8.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatReferencePoint ( )

Returns the passenger's seat reference point.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatReferencePointActive ( )

Returns the status to indicate whether the passenger seat reference point is active or not.

If it is true, the passenger seat reference point is active.
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetActive ( bool active )

Sets the status to indicate whether the passenger is active or not.

If it is true, the passenger is active.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

active active

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetBackAngle ( double dValue )

Sets the passenger's back angle.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetDescription ( const NXString & description )

Sets the name or short description of the passenger.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

description description

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetDescription ( const char * description )

Sets the name or short description of the passenger.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

description description

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetHeelReferencePoint ( NXOpen::Point * refPoint )

Sets the passenger's heel reference point.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

refPoint refpoint

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetHeelReferencePointActive ( bool activeStatus )

Sets the status to indicate whether the passenger heel reference point is active or not.

If it is true, the passenger heel reference point is active.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

activeStatus activestatus

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetHorizontalPointTravel ( double dValue )

Sets the passenger's horizontal adjustment in x direction.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetSeatAngle ( double dValue )

Sets the passenger's seat angle.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetSeatDirection ( NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SeatDirectionOptions seatDirection )

Sets the direction that this passenger is facing.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

seatDirection seatdirection

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetSeatReferencePoint ( NXOpen::Point * refPoint )

Sets the passenger's seat reference point.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

refPoint refpoint

void NXOpen::Features::VehicleDesign::BaseDataPassengerBuilder::SetSeatReferencePointActive ( bool activeStatus )

Sets the status to indicate whether the passenger seat reference point is active or not.

If it is true, the passenger seat reference point is active.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

activeStatus activestatus

The documentation for this class was generated from the following file:

Features_VehicleDesign_BaseDataPassengerBuilder.hxx
