NXOpen::Features::ShipDesign::SplitStandardPartBuilder Class Reference

    Represents a @link SplitStandardPartBuilder SplitStandardPartBuilder@endlink .This class is for splitting ship standard part
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSplitStandardPartBuilder  Features::ShipCollection::CreateSplitStandardPartBuilder @endlink  <br>

Default values. More...

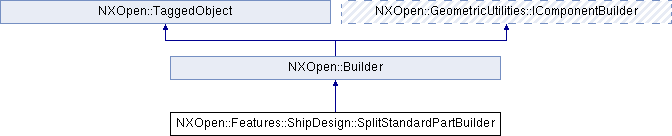

Inheritance diagram for NXOpen::Features::ShipDesign::SplitStandardPartBuilder:

Public Types
enum	ToolTypes { ToolTypesFacePlane, ToolTypesCurve }
	Represents the split tool types. More...

Public Member Functions
double	AngularTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.
NXOpen::Features::ShipDesign::CornerCutBuilder *	BaseCornerCut ()
	Returns the corner cut at the base point on the standard part.
void	ConvertObjectsToAdd (const std::vector< NXOpen::DisplayableObject * > &selectedObjectTags)
	Converts the selected objects to acceptable one and add to the selection list.
void	ConvertObjectsToRemove (const std::vector< NXOpen::DisplayableObject * > &selectedObjectTags)
	Converts the selected objects to acceptable one and remove it from the selection list.
double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.
NXOpen::Expression *	LocationOffset ()
	Returns the offset value to the split location on the standard part base.
NXOpen::Expression *	OrientationAngle ()
	Returns the orientation angle relative to the split curve or plane to split the standard part.
NXOpen::Features::ShipDesign::CornerCutBuilder *	ReinforcementCornerCut ()
	Returns the corner cut at the reinforcement point.
NXOpen::Expression *	ReinforceOffset ()
	Returns the offset value to the split location on the standard part reinforcement.
void	Reset ()
	Resets the calculation results of standard part split when tool object changes.
bool	ReverseSplitDirection ()
	Returns the flag to indicate whether to reverse the split direction or not.
void	SetAngularTolerance (double angularTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.
void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.
void	SetReverseSplitDirection (bool reverseSplitDirection)
	Sets the flag to indicate whether to reverse the split direction or not.
void	SetSplitReinforcement (bool splitReinforcement)
	Sets the flag to indicate whether to split the reinforcement part on the standard part.
void	SetToolType (int toolType)
	Sets the split tool type to split the standard part.
bool	SplitReinforcement ()
	Returns the flag to indicate whether to split the reinforcement part on the standard part.
NXOpen::Section *	ToolCurve ()
	Returns the tool curve which used to split the standard part.
NXOpen::SelectNXObject *	ToolFacePlane ()
	Returns the tool face or plane used to split the standard part.
int	ToolType ()
	Returns the split tool type to split the standard part.
NXOpen::Weld::CharacteristicsBuilder *	WeldCharacteristics ()
	Returns the weld characteristics assigned to the split edges.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link SplitStandardPartBuilder SplitStandardPartBuilder@endlink .This class is for splitting ship standard part
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSplitStandardPartBuilder  Features::ShipCollection::CreateSplitStandardPartBuilder @endlink  <br>

Default values.

Property	Value
AngularTolerance	0.5
BaseCornerCut.DistanceTolerance	0.0254 (millimeters part), 0.001 (inches part)
DistanceTolerance	0.0254
LocationOffset.Value	0 (millimeters part), 0 (inches part)
OrientationAngle.Value	0
ReinforceOffset.Value	0 (millimeters part), 0 (inches part)
SplitReinforcement	1

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ToolTypes

Represents the split tool types.

Enumerator:

ToolTypesFacePlane	Face or plane object.
ToolTypesCurve	Curve.

Member Function Documentation

double NXOpen::Features::ShipDesign::SplitStandardPartBuilder::AngularTolerance

(

)

Returns the tolerance, in degrees, used to determine when angles are zero.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::CornerCutBuilder* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::BaseCornerCut

(

)

Returns the corner cut at the base point on the standard part.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ConvertObjectsToAdd

(

const std::vector< NXOpen::DisplayableObject * > &

selectedObjectTags

)

Converts the selected objects to acceptable one and add to the selection list.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

selectedObjectTags

selectedobjecttags

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ConvertObjectsToRemove

(

const std::vector< NXOpen::DisplayableObject * > &

selectedObjectTags

)

Converts the selected objects to acceptable one and remove it from the selection list.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

selectedObjectTags

selectedobjecttags

double NXOpen::Features::ShipDesign::SplitStandardPartBuilder::DistanceTolerance

(

)

Returns the tolerance used to determine when distances are considered zero.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::LocationOffset

(

)

Returns the offset value to the split location on the standard part base.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::OrientationAngle

(

)

Returns the orientation angle relative to the split curve or plane to split the standard part.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::CornerCutBuilder* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ReinforcementCornerCut

(

)

Returns the corner cut at the reinforcement point.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ReinforceOffset

(

)

Returns the offset value to the split location on the standard part reinforcement.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::Reset

(

)

Resets the calculation results of standard part split when tool object changes.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

bool NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ReverseSplitDirection

(

)

Returns the flag to indicate whether to reverse the split direction or not.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SetAngularTolerance

(

double

angularTolerance

)

Sets the tolerance, in degrees, used to determine when angles are zero.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

angularTolerance

angulartolerance

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SetDistanceTolerance

(

double

distanceTolerance

)

Sets the tolerance used to determine when distances are considered zero.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

distanceTolerance

distancetolerance

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SetReverseSplitDirection

(

bool

reverseSplitDirection

)

Sets the flag to indicate whether to reverse the split direction or not.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

reverseSplitDirection

reversesplitdirection

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SetSplitReinforcement

(

bool

splitReinforcement

)

Sets the flag to indicate whether to split the reinforcement part on the standard part.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

splitReinforcement

splitreinforcement

void NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SetToolType

(

int

toolType

)

Sets the split tool type to split the standard part.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

toolType

tooltype

bool NXOpen::Features::ShipDesign::SplitStandardPartBuilder::SplitReinforcement

(

)

Returns the flag to indicate whether to split the reinforcement part on the standard part.

Created in NX9.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ToolCurve

(

)

Returns the tool curve which used to split the standard part.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ToolFacePlane

(

)

Returns the tool face or plane used to split the standard part.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::SplitStandardPartBuilder::ToolType

(

)

Returns the split tool type to split the standard part.

Created in NX9.0.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Features::ShipDesign::SplitStandardPartBuilder::WeldCharacteristics

(

)

Returns the weld characteristics assigned to the split edges.

Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_SplitStandardPartBuilder.hxx
