Used to create or edit a Features::ShipDesign::PlatePreparation feature. More...

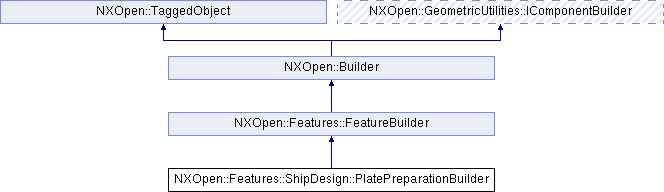

Inheritance diagram for NXOpen::Features::ShipDesign::PlatePreparationBuilder:

Public Member Functions
void	AddPart (const NXString &partName)
	Add the part to the collection of parts to be unformed and scaled.

void	AddPart (const char *partName)
	Add the part to the collection of parts to be unformed and scaled.

int	CalculationMethod ()
	Returns the calculation method defining methods to calculate shrinkage factors.

NXOpen::CoordinateSystem *	CoordinateSystem ()
	Returns the coordinate system defining the origin as well as the X and Y axis for shrinkage.

NXOpen::Expression *	Length ()
	Returns the expression containing the scale factor for the length direction (X).

void	RemovePart (const NXString &partName)
	Remove the part from the collection of parts to be unformed and scaled.

void	RemovePart (const char *partName)
	Remove the part from the collection of parts to be unformed and scaled.

void	SetCalculationMethod (int calculationMethod)
	Sets the calculation method defining methods to calculate shrinkage factors.

void	SetCoordinateSystem (NXOpen::CoordinateSystem *coordinateSystem)
	Sets the coordinate system defining the origin as well as the X and Y axis for shrinkage.

void	SetXDirectionType (int xDirType)
	Sets the option that determines how the X direction is created.

NXOpen::Expression *	Width ()
	Returns the expression containing the scale factor for the width direction (Y).

NXOpen::Expression *	XCount ()
	Returns the expression containing the attached part count in x direction.

int	XDirectionType ()
	Returns the option that determines how the X direction is created.

NXOpen::Expression *	XWidth ()
	Returns the expression containing the width in x direction.

NXOpen::Expression *	YCount ()
	Returns the expression containing the attached part count in y direction.

NXOpen::Expression *	YWidth ()
	Returns the expression containing the width in y direction.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to create or edit a Features::ShipDesign::PlatePreparation feature.

<br> To create a new instance of this class, use @link Features::ShipCollection::CreatePlatePreparationBuilder  Features::ShipCollection::CreatePlatePreparationBuilder @endlink  <br>

Created in NX5.0.0.

Member Function Documentation

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::AddPart ( const NXString & partName )

Add the part to the collection of parts to be unformed and scaled.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

partName NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::AddPart ( const char * partName )

Add the part to the collection of parts to be unformed and scaled.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

partName NOTE: The full Unicode character set is not supported for this parameter.

int NXOpen::Features::ShipDesign::PlatePreparationBuilder::CalculationMethod ( )

Returns the calculation method defining methods to calculate shrinkage factors.

Created in NX8.5.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::Features::ShipDesign::PlatePreparationBuilder::CoordinateSystem ( )

Returns the coordinate system defining the origin as well as the X and Y axis for shrinkage.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::Length ( )

Returns the expression containing the scale factor for the length direction (X).

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::RemovePart ( const NXString & partName )

Remove the part from the collection of parts to be unformed and scaled.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

partName NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::RemovePart ( const char * partName )

Remove the part from the collection of parts to be unformed and scaled.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

partName NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::SetCalculationMethod ( int calculationMethod )

Sets the calculation method defining methods to calculate shrinkage factors.

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

calculationMethod calculationmethod

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::SetCoordinateSystem ( NXOpen::CoordinateSystem * coordinateSystem )

Sets the coordinate system defining the origin as well as the X and Y axis for shrinkage.

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

coordinateSystem coordinatesystem

void NXOpen::Features::ShipDesign::PlatePreparationBuilder::SetXDirectionType ( int xDirType )

Sets the option that determines how the X direction is created.

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

xDirType xdirtype

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::Width ( )

Returns the expression containing the scale factor for the width direction (Y).

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::XCount ( )

Returns the expression containing the attached part count in x direction.

Created in NX8.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::PlatePreparationBuilder::XDirectionType ( )

Returns the option that determines how the X direction is created.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::XWidth ( )

Returns the expression containing the width in x direction.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::YCount ( )

Returns the expression containing the attached part count in y direction.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlatePreparationBuilder::YWidth ( )

Returns the expression containing the width in y direction.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_PlatePreparationBuilder.hxx
