Represents a @link Features::ShipDesign::PenetrationRequest Features::ShipDesign::PenetrationRequest@endlink  builder  <br> To create a new instance of this class, use @link Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationRequestBuilder  Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationRequestBuilder @endlink  <br>

Default values. More...

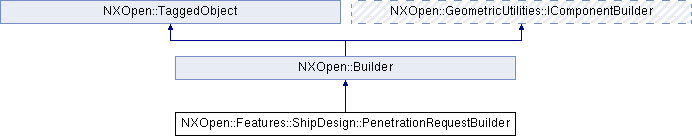

Inheritance diagram for NXOpen::Features::ShipDesign::PenetrationRequestBuilder:

Public Types
enum	RequestDialogType { RequestDialogTypeUnknown, RequestDialogTypeCreate, RequestDialogTypeModify, RequestDialogTypeRevise, RequestDialogTypeAssociate, RequestDialogTypeEditAssociate }
	Represents the dialog type. More...

Public Member Functions
void	AddAdjacentStructure (NXOpen::Body *adjacentStructure)
	Adds adjacent structures Created in NX8.5.0.

void	AddNonIntersectedStructure (NXOpen::Body *structure)
	Adds nonintersected structures Created in NX8.5.0.

NXString	CompensationNumber ()
	Returns the compensation number Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::CompensationType	CompensationType ()
	Returns the compensation type Created in NX8.0.0.

NXOpen::Expression *	CornerRadius ()
	Returns the corner radius expression Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType	CoutoutType ()
	Returns the coutout type Created in NX8.0.0.

bool	Cut ()
	Returns the cut Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType	DialogType ()
	Returns the dialog type Created in NX8.5.0.

NXOpen::Expression *	Diameter ()
	Returns the diameter expression Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType	DirectionType ()
	Returns the direction Created in NX8.0.0.

NXString	DueDate ()
	Returns the due date Created in NX8.0.0.

std::vector< NXString >	GetRequestDescription ()
	Returns the description.

bool	Hanger ()
	Returns the hanger Created in NX8.0.0.

NXString	HangerNumber ()
	Returns the hanger number Created in NX8.0.0.

NXOpen::Expression *	Height ()
	Returns the height expression Created in NX8.0.0.

NXString	HoleSubType ()
	Returns the hole sub-type Created in NX8.5.0.

NXString	HoleType ()
	Returns the hole type Created in NX8.5.0.

NXOpen::Direction *	HorizontalDirection ()
	Returns the horizontal direction Created in NX8.0.0.

NXOpen::Sketch *	ModifiedSketch ()
	Returns the modified sketch Created in NX8.5.0.

NXOpen::Expression *	Offset ()
	Returns the offset expression Created in NX8.0.0.

NXOpen::Direction *	Orientation ()
	Returns the orientation Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::PenetrationType	PenetrationType ()
	Returns the penetration type Created in NX8.0.0.

NXOpen::Point *	Point ()
	Returns the penetrating point Created in NX8.0.0.

NXOpen::Expression *	Radius ()
	Returns the radius expression Created in NX8.0.0.

void	RemoveAllAdjacentStructures ()
	Removes all adjacent structures Created in NX8.5.0.

void	RemoveNonIntersectedStructures ()
	Removes all nonintersected structures Created in NX8.5.0.

NXString	RequestName ()
	Returns the request name Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::RequestType	RequestType ()
	Returns the request type Created in NX8.0.0.

NXOpen::Routing::RouteObjectCollector *	RouteObjectCollector ()
	Returns the route object collector Created in NX8.0.0.

NXOpen::Routing::RouteObjectCollector *	RoutePenetrating ()
	Returns the route penetrating Created in NX8.0.0.

NXOpen::NXObject *	SelectedSegment ()
	Returns the selected segment Created in NX8.0.0.

NXOpen::SelectNXObject *	SelectionCompensation ()
	Returns the selection compensation Created in NX8.0.0.

NXOpen::SelectNXObject *	SelectionHanger ()
	Returns the selection hanger Created in NX8.0.0.

NXOpen::SelectNXObject *	SelectionStructure ()
	Returns the selection structure Created in NX8.0.0.

void	SetCompensationNumber (const NXString &stringCompensationNumber)
	Sets the compensation number Created in NX8.0.0.

void	SetCompensationNumber (const char *stringCompensationNumber)
	Sets the compensation number Created in NX8.0.0.

void	SetCompensationType (NXOpen::Features::ShipDesign::PenetrationRequest::CompensationType enumCompensationType)
	Sets the compensation type Created in NX8.0.0.

void	SetCoutoutType (NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType)
	Sets the coutout type Created in NX8.0.0.

void	SetCut (bool toggleCut)
	Sets the cut Created in NX8.0.0.

void	SetDialogType (NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType dialogType)
	Sets the dialog type Created in NX8.5.0.

void	SetDirectionType (NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection)
	Sets the direction Created in NX8.0.0.

void	SetDueDate (const NXString &stringDueDate)
	Sets the due date Created in NX8.0.0.

void	SetDueDate (const char *stringDueDate)
	Sets the due date Created in NX8.0.0.

void	SetHanger (bool toggleHanger)
	Sets the hanger Created in NX8.0.0.

void	SetHangerNumber (const NXString &stringHangerNumber)
	Sets the hanger number Created in NX8.0.0.

void	SetHangerNumber (const char *stringHangerNumber)
	Sets the hanger number Created in NX8.0.0.

void	SetHoleSubType (const NXString &stringHoleType)
	Sets the hole sub-type Created in NX8.5.0.

void	SetHoleSubType (const char *stringHoleType)
	Sets the hole sub-type Created in NX8.5.0.

void	SetHoleType (const NXString &stringHoleType)
	Sets the hole type Created in NX8.5.0.

void	SetHoleType (const char *stringHoleType)
	Sets the hole type Created in NX8.5.0.

void	SetHorizontalDirection (NXOpen::Direction *vectorHorizontalDirection)
	Sets the horizontal direction Created in NX8.0.0.

void	SetModifiedSketch (NXOpen::Sketch *modifiedSketch)
	Sets the modified sketch Created in NX8.5.0.

void	SetOrientation (NXOpen::Direction *vectorOrientation)
	Sets the orientation Created in NX8.0.0.

void	SetPenetrationType (NXOpen::Features::ShipDesign::PenetrationRequest::PenetrationType enumPenetrationType)
	Sets the penetration type Created in NX8.0.0.

void	SetPoint (NXOpen::Point *pointPenetrating)
	Sets the penetrating point Created in NX8.0.0.

void	SetRequestDescription (const std::vector< NXString > &stringDesc)
	Sets the description Created in NX8.0.0.

void	SetRequestName (const NXString &stringName)
	Sets the request name Created in NX8.0.0.

void	SetRequestName (const char *stringName)
	Sets the request name Created in NX8.0.0.

void	SetRequestType (NXOpen::Features::ShipDesign::PenetrationRequest::RequestType enumRequestType)
	Sets the request type Created in NX8.0.0.

void	SetSelectedSegment (NXOpen::NXObject *selectedSegment)
	Sets the selected segment Created in NX8.0.0.

void	SetSpill (bool toggleSpill)
	Sets the spill Created in NX8.0.0.

NXOpen::Section *	Sketch ()
	Returns the sketch Created in NX8.0.0.

bool	Spill ()
	Returns the spill Created in NX8.0.0.

NXOpen::Expression *	Width ()
	Returns the width expression Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::ShipDesign::PenetrationRequest Features::ShipDesign::PenetrationRequest@endlink  builder  <br> To create a new instance of this class, use @link Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationRequestBuilder  Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationRequestBuilder @endlink  <br>

Default values.

Property

Value

CompensationType

NotRequired

CornerRadius.Value

0 (millimeters part), 0 (inches part)

CoutoutType

Circular

Cut

0

Diameter.Value

0 (millimeters part), 0 (inches part)

DirectionType

PerpendiculartoStructure

Hanger

0

Height.Value

0 (millimeters part), 0 (inches part)

Offset.Value

0 (millimeters part), 0 (inches part)

PenetrationType

PenetratingObject

Radius.Value

0 (millimeters part), 0 (inches part)

RequestType

Single

Spill

0

Width.Value

0 (millimeters part), 0 (inches part)

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType

Represents the dialog type.

Enumerator:

RequestDialogTypeUnknown	unknown
RequestDialogTypeCreate	create
RequestDialogTypeModify	modify
RequestDialogTypeRevise	revise
RequestDialogTypeAssociate	associate
RequestDialogTypeEditAssociate	edit associate

Member Function Documentation

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::AddAdjacentStructure ( NXOpen::Body * adjacentStructure )

Adds adjacent structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

adjacentStructure adjacentstructure

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::AddNonIntersectedStructure ( NXOpen::Body * structure )

Adds nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

structure structure

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::CompensationNumber ( )

Returns the compensation number
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::CompensationType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::CompensationType ( )

Returns the compensation type
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::CornerRadius ( )

Returns the corner radius expression
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::CoutoutType ( )

Returns the coutout type
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Cut ( )

Returns the cut
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::DialogType ( )

Returns the dialog type
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Diameter ( )

Returns the diameter expression
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::DirectionType ( )

Returns the direction
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::DueDate ( )

Returns the due date
Created in NX8.0.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::PenetrationRequestBuilder::GetRequestDescription ( )

Returns the description.

Returns: Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Hanger ( )

Returns the hanger
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::HangerNumber ( )

Returns the hanger number
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Height ( )

Returns the height expression
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::HoleSubType ( )

Returns the hole sub-type
Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::HoleType ( )

Returns the hole type
Created in NX8.5.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::HorizontalDirection ( )

Returns the horizontal direction
Created in NX8.0.0.

License requirements : None

NXOpen::Sketch* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::ModifiedSketch ( )

Returns the modified sketch
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Offset ( )

Returns the offset expression
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Orientation ( )

Returns the orientation
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::PenetrationType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::PenetrationType ( )

Returns the penetration type
Created in NX8.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Point ( )

Returns the penetrating point
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Radius ( )

Returns the radius expression
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RemoveAllAdjacentStructures ( )

Removes all adjacent structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RemoveNonIntersectedStructures ( )

Removes all nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

NXString NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestName ( )

Returns the request name
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::RequestType NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestType ( )

Returns the request type
Created in NX8.0.0.

License requirements : None

NXOpen::Routing::RouteObjectCollector* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RouteObjectCollector ( )

Returns the route object collector
Created in NX8.0.0.

License requirements : None

NXOpen::Routing::RouteObjectCollector* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RoutePenetrating ( )

Returns the route penetrating
Created in NX8.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SelectedSegment ( )

Returns the selected segment
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SelectionCompensation ( )

Returns the selection compensation
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SelectionHanger ( )

Returns the selection hanger
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SelectionStructure ( )

Returns the selection structure
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetCompensationNumber ( const NXString & stringCompensationNumber )

Sets the compensation number
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringCompensationNumber stringcompensationnumber

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetCompensationNumber ( const char * stringCompensationNumber )

Sets the compensation number
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringCompensationNumber stringcompensationnumber

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetCompensationType ( NXOpen::Features::ShipDesign::PenetrationRequest::CompensationType enumCompensationType )

Sets the compensation type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumCompensationType enumcompensationtype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetCoutoutType ( NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType )

Sets the coutout type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumCoutoutType enumcoutouttype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetCut ( bool toggleCut )

Sets the cut
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

toggleCut togglecut

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetDialogType ( NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType dialogType )

Sets the dialog type
Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

dialogType dialogtype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetDirectionType ( NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection )

Sets the direction
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumDirection enumdirection

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetDueDate ( const NXString & stringDueDate )

Sets the due date
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringDueDate stringduedate

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetDueDate ( const char * stringDueDate )

Sets the due date
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringDueDate stringduedate

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHanger ( bool toggleHanger )

Sets the hanger
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

toggleHanger togglehanger

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHangerNumber ( const NXString & stringHangerNumber )

Sets the hanger number
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringHangerNumber stringhangernumber

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHangerNumber ( const char * stringHangerNumber )

Sets the hanger number
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

stringHangerNumber stringhangernumber

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHoleSubType ( const NXString & stringHoleType )

Sets the hole sub-type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHoleSubType ( const char * stringHoleType )

Sets the hole sub-type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHoleType ( const NXString & stringHoleType )

Sets the hole type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHoleType ( const char * stringHoleType )

Sets the hole type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetHorizontalDirection ( NXOpen::Direction * vectorHorizontalDirection )

Sets the horizontal direction
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

vectorHorizontalDirection vectorhorizontaldirection

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetModifiedSketch ( NXOpen::Sketch * modifiedSketch )

Sets the modified sketch
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

modifiedSketch modifiedsketch

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetOrientation ( NXOpen::Direction * vectorOrientation )

Sets the orientation
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

vectorOrientation vectororientation

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetPenetrationType ( NXOpen::Features::ShipDesign::PenetrationRequest::PenetrationType enumPenetrationType )

Sets the penetration type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumPenetrationType enumpenetrationtype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetPoint ( NXOpen::Point * pointPenetrating )

Sets the penetrating point
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

pointPenetrating pointpenetrating

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetRequestDescription ( const std::vector< NXString > & stringDesc )

Sets the description
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringDesc stringdesc

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetRequestName ( const NXString & stringName )

Sets the request name
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringName stringname

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetRequestName ( const char * stringName )

Sets the request name
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringName stringname

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetRequestType ( NXOpen::Features::ShipDesign::PenetrationRequest::RequestType enumRequestType )

Sets the request type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumRequestType enumrequesttype

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetSelectedSegment ( NXOpen::NXObject * selectedSegment )

Sets the selected segment
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

selectedSegment selectedsegment

void NXOpen::Features::ShipDesign::PenetrationRequestBuilder::SetSpill ( bool toggleSpill )

Sets the spill
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

toggleSpill togglespill

NXOpen::Section* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Sketch ( )

Returns the sketch
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Spill ( )

Returns the spill
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationRequestBuilder::Width ( )

Returns the width expression
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_PenetrationRequestBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
