Represents a Features::ShipDesign::MainDimensions builder. More...

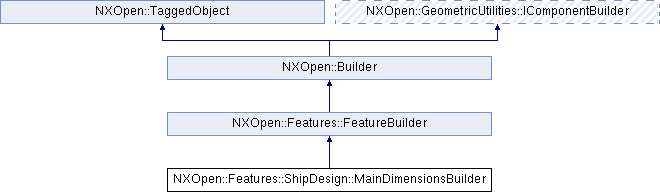

Inheritance diagram for NXOpen::Features::ShipDesign::MainDimensionsBuilder:

Public Member Functions
NXOpen::Expression *	AftPerpendicular ()
	Returns the expression containing the position value of Aft Perpendicular along the X axis.

NXOpen::Expression *	Baseline ()
	Returns the expression containing the position value of baseline along the Z axis.

NXOpen::Expression *	ForwardPerpendicular ()
	Returns the expression containing the position value of forward Perpendicular along the X axis.

NXString	GridID ()
	Returns the unique "Grid ID" for each ship.

NXOpen::Expression *	Midship ()
	Returns the expression containing the position value of midship along the X axis.

void	SetGridID (const NXString &gridID)
	Sets the unique "Grid ID" for each ship.

void	SetGridID (const char *gridID)
	Sets the unique "Grid ID" for each ship.

NXOpen::SelectBody *	ShipBody ()
	Returns the ship body.

NXOpen::Expression *	Waterline ()
	Returns the expression containing the position value of waterline along the Z axis.

NXOpen::Expression *	XMax ()
	Returns the expression containing the x max value.

NXOpen::Expression *	XMin ()
	Returns the expression containing the x min value.

NXOpen::Expression *	YMax ()
	Returns the expression containing the y max value.

NXOpen::Expression *	ZMax ()
	Returns the expression containing the z max value.

NXOpen::Expression *	ZMin ()
	Returns the expression containing the z min value.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::MainDimensions builder.

     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateMainDimensionsBuilder  Features::ShipCollection::CreateMainDimensionsBuilder @endlink  <br>

Default values.

Property

Value

AftPerpendicular.Value

0 (millimeters part), 0 (inches part)

Baseline.Value

0 (millimeters part), 0 (inches part)

ForwardPerpendicular.Value

0 (millimeters part), 0 (inches part)

Midship.Value

0 (millimeters part), 0 (inches part)

Waterline.Value

0 (millimeters part), 0 (inches part)

XMax.Value

25000 (millimeters part), 1000 (inches part)

XMin.Value

0 (millimeters part), 0 (inches part)

YMax.Value

2500 (millimeters part), 100 (inches part)

ZMax.Value

2500 (millimeters part), 100 (inches part)

ZMin.Value

0 (millimeters part), 0 (inches part)

Created in NX5.0.0.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::AftPerpendicular ( )

Returns the expression containing the position value of Aft Perpendicular along the X axis.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::Baseline ( )

Returns the expression containing the position value of baseline along the Z axis.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::ForwardPerpendicular ( )

Returns the expression containing the position value of forward Perpendicular along the X axis.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::MainDimensionsBuilder::GridID ( )

Returns the unique "Grid ID" for each ship.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::Midship ( )

Returns the expression containing the position value of midship along the X axis.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::MainDimensionsBuilder::SetGridID ( const NXString & gridID )

Sets the unique "Grid ID" for each ship.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

gridID gridid

void NXOpen::Features::ShipDesign::MainDimensionsBuilder::SetGridID ( const char * gridID )

Sets the unique "Grid ID" for each ship.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

gridID gridid

NXOpen::SelectBody* NXOpen::Features::ShipDesign::MainDimensionsBuilder::ShipBody ( )

Returns the ship body.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::Waterline ( )

Returns the expression containing the position value of waterline along the Z axis.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::XMax ( )

Returns the expression containing the x max value.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::XMin ( )

Returns the expression containing the x min value.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::YMax ( )

Returns the expression containing the y max value.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::ZMax ( )

Returns the expression containing the z max value.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::MainDimensionsBuilder::ZMin ( )

Returns the expression containing the z min value.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_MainDimensionsBuilder.hxx
