Used to create or edit a Features::ShipDesign::InverseBendingLines feature. More...

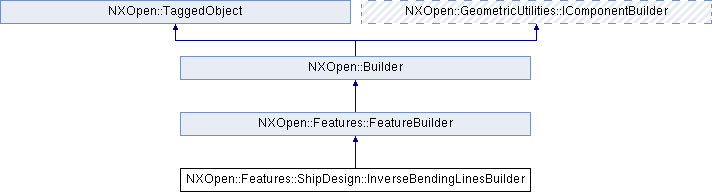

Inheritance diagram for NXOpen::Features::ShipDesign::InverseBendingLinesBuilder:

Public Types
enum	MeasureType { MeasureTypeLeftToRight, MeasureTypeRightToLeft }
	The direction to measure from. More...

enum	MethodType { MethodTypeAutomatic, MethodTypeNumberOfCurves, MethodTypeFillingCoefficient, MethodTypeEvenFit }
	The method used to generate the bending curves. More...

enum	NeutralMethodType { NeutralMethodTypeBaseLine, NeutralMethodTypeCenterLine, NeutralMethodTypeNeutralAxis }
	The method used to calculate the neutral line. More...

enum	ReferencePlaneType { ReferencePlaneTypeXCYCPlane, ReferencePlaneTypeYCZCPlane, ReferencePlaneTypeZCXCPlane, ReferencePlaneTypeNegativeXCYCPlane, ReferencePlaneTypeNegativeYCZCPlane, ReferencePlaneTypeNegativeZCXCPlane, ReferencePlaneTypeDefineCSYS }
	The reference plane to draw the diagram on. More...

Public Member Functions
bool	DrawVentHoles ()
	Returns the switch that determines if vent holes are drawn in the diagram.

NXOpen::Expression *	Extension ()
	Returns the extension added on each end of the profile.

double	FillingCoefficient ()
	Returns the filling coefficient that represents the amplitude of the bending line relative to the profile height.

std::vector< NXOpen::Body * >	GetFailedProfiles (std::vector< int > &failedReasons)
	The profiles that failed and error code for each failed profile.

NXOpen::Expression *	GridSpacing ()
	Returns the grid spacing in the diagram.

NXOpen::Expression *	LowerMargin ()
	Returns the lower margin on the profile.

int	MaxNumberOfCurves ()
	Returns the maximum number of curves to generate on the profile.

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MeasureType	Measure ()
	Returns the measurement direction used in the table, left to right, or right to left.

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MethodType	Method ()
	Returns the method used to calculate the number and spacing of the curves on the profile.

double	NeutralAxisPercent ()
	Returns the height of a line through the profile that maintains a constant length when the profile is bent.

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethodType	NeutralMethod ()
	Returns the neutral method determines the curve that is used for measurements and calculations when un-bending the profile.

double	NonlinearityCoefficient ()
	Returns the nonlinearity coefficient used to determine the bending curve spacing.

int	NumberOfCurves ()
	Returns the number of curves to generate on the profile.

int	NumberOfRows ()
	Returns the number of rows in the table.

double	OffsetBetweenDiagrams ()
	Returns the distance between the bottom of one table and the top of the next diagram.

NXOpen::Expression *	Overlap ()
	Returns the overlap distance of the bending curves.

NXOpen::SelectBodyList *	ProfileBodies ()
	Returns the profile bodies to create Inverse Bending Lines on.

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneType	ReferencePlane ()
	Returns the reference plane type determines how you will define the plane of the diagram and table Created in NX8.0.0.

NXOpen::Point *	ReferencePlanePoint ()
	Returns the reference plane origin when one of the standard planes is chosen.

void	SetDrawVentHoles (bool drawVentHoles)
	Sets the switch that determines if vent holes are drawn in the diagram.

void	SetFillingCoefficient (double fillingCoefficient)
	Sets the filling coefficient that represents the amplitude of the bending line relative to the profile height.

void	SetMaxNumberOfCurves (int maxNumberOfCurves)
	Sets the maximum number of curves to generate on the profile.

void	SetMeasure (NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MeasureType measure)
	Sets the measurement direction used in the table, left to right, or right to left.

void	SetMethod (NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MethodType method)
	Sets the method used to calculate the number and spacing of the curves on the profile.

void	SetNeutralAxisPercent (double neutralAxisPercent)
	Sets the height of a line through the profile that maintains a constant length when the profile is bent.

void	SetNeutralMethod (NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethodType neutralMethod)
	Sets the neutral method determines the curve that is used for measurements and calculations when un-bending the profile.

void	SetNonlinearityCoefficient (double nonlinearityCoefficient)
	Sets the nonlinearity coefficient used to determine the bending curve spacing.

void	SetNumberOfCurves (int numberOfCurves)
	Sets the number of curves to generate on the profile.

void	SetNumberOfRows (int numberOfRows)
	Sets the number of rows in the table.

void	SetOffsetBetweenDiagrams (double offsetBetweenDiagrams)
	Sets the distance between the bottom of one table and the top of the next diagram.

void	SetReferencePlane (NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneType referencePlane)
	Sets the reference plane type determines how you will define the plane of the diagram and table Created in NX8.0.0.

void	SetReferencePlanePoint (NXOpen::Point *referencePlanePoint)
	Sets the reference plane origin when one of the standard planes is chosen.

void	SetUserCsys (NXOpen::CoordinateSystem *userCsys)
	Sets the user defined CSYS used to locate and orient the tables and diagrams.

void	SetVarOverlapMax (int varOverlapMax)
	Sets the variable aligned overlap maximum number of grids.

void	SetVarOverlapMin (int varOverlapMin)
	Sets the variable aligned overlap minimum number of grids.

NXOpen::Expression *	SideMargin ()
	Returns the side margin on each end of the profile.

NXOpen::Expression *	UpperMargin ()
	Returns the upper margin on the profile.

NXOpen::CoordinateSystem *	UserCsys ()
	Returns the user defined CSYS used to locate and orient the tables and diagrams.

NXOpen::Expression *	VarMarginIncrement ()
	Returns the Increment used to vary horizontal margins for profiles.

NXOpen::Expression *	VarMarginMax ()
	Returns the maximum horizontal margin used for profiles.

NXOpen::Expression *	VarMarginMin ()
	Returns the minimum horizontal margin used for profiles.

int	VarOverlapMax ()
	Returns the variable aligned overlap maximum number of grids.

int	VarOverlapMin ()
	Returns the variable aligned overlap minimum number of grids.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to create or edit a Features::ShipDesign::InverseBendingLines feature.

This builder can create or edit multiple features, depending on the number of profile bodies input.
 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateInverseBendingLinesBuilder  Features::ShipCollection::CreateInverseBendingLinesBuilder @endlink  <br>

Default values.

Property

Value

DrawVentHoles

1

Extension.Value

0 (millimeters part), 0 (inches part)

FillingCoefficient

0.75

GridSpacing.Value

200 (millimeters part), 0 (inches part)

LowerMargin.Value

2.5 (millimeters part), 0 (inches part)

MaxNumberOfCurves

5

Measure

LeftToRight

Method

Automatic

NeutralAxisPercent

60

NeutralMethod

BaseLine

NonlinearityCoefficient

0.3

NumberOfCurves

2

NumberOfRows

10

OffsetBetweenDiagrams

500

Overlap.Value

200 (millimeters part), 0 (inches part)

ReferencePlane

XCYCPlane

SideMargin.Value

0 (millimeters part), 0 (inches part)

UpperMargin.Value

5 (millimeters part), 4 (inches part)

VarMarginIncrement.Value

20 (millimeters part), 0.75 (inches part)

VarMarginMax.Value

75 (millimeters part), 3 (inches part)

VarMarginMin.Value

15 (millimeters part), 0.75 (inches part)

VarOverlapMax

2

VarOverlapMin

1

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MeasureType

The direction to measure from.

Enumerator:

MeasureTypeLeftToRight	Left to right.
MeasureTypeRightToLeft	Right to left.

enum NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MethodType

The method used to generate the bending curves.

Enumerator:

MethodTypeAutomatic	Automatic.
MethodTypeNumberOfCurves	Number of curves.
MethodTypeFillingCoefficient	Filling Coefficient (unsupported).
MethodTypeEvenFit	Even Fit.

enum NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethodType

The method used to calculate the neutral line.

Enumerator:

NeutralMethodTypeBaseLine	Base line.
NeutralMethodTypeCenterLine	Center line.
NeutralMethodTypeNeutralAxis	Neutral axis.

enum NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneType

The reference plane to draw the diagram on.

Enumerator:

ReferencePlaneTypeXCYCPlane	XC-YC plane.
ReferencePlaneTypeYCZCPlane	YC-ZC plane.
ReferencePlaneTypeZCXCPlane	ZC-XC plane.
ReferencePlaneTypeNegativeXCYCPlane	-XC-YC plane.
ReferencePlaneTypeNegativeYCZCPlane	-YC-ZC plane.
ReferencePlaneTypeNegativeZCXCPlane	-ZC-XC plane.
ReferencePlaneTypeDefineCSYS	User defined plane.

Member Function Documentation

bool NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::DrawVentHoles ( )

Returns the switch that determines if vent holes are drawn in the diagram.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::Extension ( )

Returns the extension added on each end of the profile.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::FillingCoefficient ( )

Returns the filling coefficient that represents the amplitude of the bending line relative to the profile height.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeFillingCoefficient Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeFillingCoefficient@endlink .

Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::Body *> NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::GetFailedProfiles ( std::vector< int > & failedReasons )

The profiles that failed and error code for each failed profile.

Returns: The profiles that failed.
Created in NX8.0.0.

License requirements : None

Parameters

failedReasons The error code for each failure.

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::GridSpacing ( )

Returns the grid spacing in the diagram.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::LowerMargin ( )

Returns the lower margin on the profile.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MaxNumberOfCurves ( )

Returns the maximum number of curves to generate on the profile.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink  or @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeEvenFit Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeEvenFit@endlink .

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MeasureType NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::Measure ( )

Returns the measurement direction used in the table, left to right, or right to left.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MethodType NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::Method ( )

Returns the method used to calculate the number and spacing of the curves on the profile.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralAxisPercent ( )

Returns the height of a line through the profile that maintains a constant length when the profile is bent.

       Measured as a percentage of the profile height relative to the base line.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethodType NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethod ( )

Returns the neutral method determines the curve that is used for measurements and calculations when un-bending the profile.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NonlinearityCoefficient ( )

Returns the nonlinearity coefficient used to determine the bending curve spacing.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink .

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NumberOfCurves ( )

Returns the number of curves to generate on the profile.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink .

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NumberOfRows ( )

Returns the number of rows in the table.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::OffsetBetweenDiagrams ( )

Returns the distance between the bottom of one table and the top of the next diagram.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::Overlap ( )

Returns the overlap distance of the bending curves.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ProfileBodies ( )

Returns the profile bodies to create Inverse Bending Lines on.

        <br> The list can be populated in any one of the following ways:
       <ul>
       <li>If the list of profile bodies is empty, the function will search the current workset for any bent profiles. For each
           profile that does not have an Inverse Bending Lines feature, a new one is created. A profile that
           already has an Inverse Bending Lines feature associated to it, is edited with the new parameters.</li>
       <li>If the list contains one or more profiles and no feature is given, an Inverse Bending Lines features will
           be created or edited for each profile in the list.</li>
       <li>If a feature is supplied to be edited, the list must contain a single bent profile that resides in the
           same design element as the feature.</li>
       </ul>
        <br>

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneType NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlane ( )

Returns the reference plane type determines how you will define the plane of the diagram and table
Created in NX8.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlanePoint ( )

Returns the reference plane origin when one of the standard planes is chosen.

       Only when reference plane type is one of:
       <ul>
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeXCYCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeXCYCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeYCZCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeYCZCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeZCXCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeZCXCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeXCYCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeXCYCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeYCZCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeYCZCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeZCXCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeZCXCPlane@endlink </li>.
       </ul>

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetDrawVentHoles ( bool drawVentHoles )

Sets the switch that determines if vent holes are drawn in the diagram.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

drawVentHoles drawventholes

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetFillingCoefficient ( double fillingCoefficient )

Sets the filling coefficient that represents the amplitude of the bending line relative to the profile height.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeFillingCoefficient Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeFillingCoefficient@endlink .

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

fillingCoefficient fillingcoefficient

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetMaxNumberOfCurves ( int maxNumberOfCurves )

Sets the maximum number of curves to generate on the profile.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink  or @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeEvenFit Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeEvenFit@endlink .

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

maxNumberOfCurves maxnumberofcurves

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetMeasure ( NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MeasureType measure )

Sets the measurement direction used in the table, left to right, or right to left.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

measure measure

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetMethod ( NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::MethodType method )

Sets the method used to calculate the number and spacing of the curves on the profile.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

method method

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetNeutralAxisPercent ( double neutralAxisPercent )

Sets the height of a line through the profile that maintains a constant length when the profile is bent.

       Measured as a percentage of the profile height relative to the base line.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

neutralAxisPercent neutralaxispercent

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetNeutralMethod ( NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::NeutralMethodType neutralMethod )

Sets the neutral method determines the curve that is used for measurements and calculations when un-bending the profile.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

neutralMethod neutralmethod

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetNonlinearityCoefficient ( double nonlinearityCoefficient )

Sets the nonlinearity coefficient used to determine the bending curve spacing.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink .

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

nonlinearityCoefficient nonlinearitycoefficient

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetNumberOfCurves ( int numberOfCurves )

Sets the number of curves to generate on the profile.

       Only when method is @link Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves Features::ShipDesign::InverseBendingLinesBuilder::MethodTypeNumberOfCurves@endlink .

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

numberOfCurves numberofcurves

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetNumberOfRows ( int numberOfRows )

Sets the number of rows in the table.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

numberOfRows numberofrows

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetOffsetBetweenDiagrams ( double offsetBetweenDiagrams )

Sets the distance between the bottom of one table and the top of the next diagram.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

offsetBetweenDiagrams offsetbetweendiagrams

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetReferencePlane ( NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneType referencePlane )

Sets the reference plane type determines how you will define the plane of the diagram and table
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

referencePlane referenceplane

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetReferencePlanePoint ( NXOpen::Point * referencePlanePoint )

Sets the reference plane origin when one of the standard planes is chosen.

       Only when reference plane type is one of:
       <ul>
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeXCYCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeXCYCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeYCZCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeYCZCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeZCXCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeZCXCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeXCYCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeXCYCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeYCZCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeYCZCPlane@endlink </li>.
       <li>@link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeZCXCPlane Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeNegativeZCXCPlane@endlink </li>.
       </ul>

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

referencePlanePoint referenceplanepoint

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetUserCsys ( NXOpen::CoordinateSystem * userCsys )

Sets the user defined CSYS used to locate and orient the tables and diagrams.

       Only when reference plane type is @link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeDefineCSYS Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeDefineCSYS@endlink .

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

userCsys usercsys

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetVarOverlapMax ( int varOverlapMax )

Sets the variable aligned overlap maximum number of grids.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

varOverlapMax varoverlapmax

void NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SetVarOverlapMin ( int varOverlapMin )

Sets the variable aligned overlap minimum number of grids.

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

varOverlapMin varoverlapmin

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::SideMargin ( )

Returns the side margin on each end of the profile.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::UpperMargin ( )

Returns the upper margin on the profile.

Created in NX8.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::UserCsys ( )

Returns the user defined CSYS used to locate and orient the tables and diagrams.

       Only when reference plane type is @link Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeDefineCSYS Features::ShipDesign::InverseBendingLinesBuilder::ReferencePlaneTypeDefineCSYS@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::VarMarginIncrement ( )

Returns the Increment used to vary horizontal margins for profiles.

Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::VarMarginMax ( )

Returns the maximum horizontal margin used for profiles.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::VarMarginMin ( )

Returns the minimum horizontal margin used for profiles.

Created in NX8.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::VarOverlapMax ( )

Returns the variable aligned overlap maximum number of grids.

Created in NX8.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::InverseBendingLinesBuilder::VarOverlapMin ( )

Returns the variable aligned overlap minimum number of grids.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_InverseBendingLinesBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
