Used to create a Features::ShipDesign::CuttingSideFacesBuilder which is used to attribute the cutting side, and opposing cutting side, faces on the plate bodies. More...

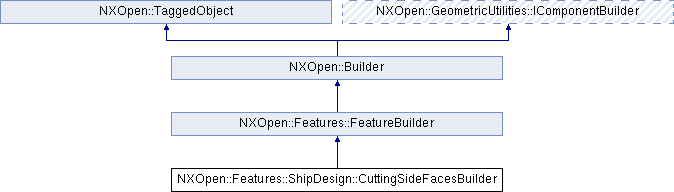

Inheritance diagram for NXOpen::Features::ShipDesign::CuttingSideFacesBuilder:

Public Types
enum	Types { TypesAutomatic, TypesManual, TypesReverse }
	Type of operation to perform on the plate. More...

Public Member Functions
NXOpen::ScCollector *	CuttingSideFaces ()
	Returns the faces to identify, or attribute, as cutting side.

double	DistanceTolerance ()
	Returns the modeling distance tolerance.

bool	ProcessCoplanar ()
	Returns the option identifying if a coplanar rule should be applied to find cutting side faces.

bool	ProcessTangent ()
	Returns the option identifying if a tangent rule should be applied to find adjacent cutting side faces.

bool	ReverseSide ()
	Returns the value to decide if the normal face assignment should be done to the opposite side.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the modeling distance tolerance.

void	SetProcessCoplanar (bool processCoplanar)
	Sets the option identifying if a coplanar rule should be applied to find cutting side faces.

void	SetProcessTangent (bool processTangent)
	Sets the option identifying if a tangent rule should be applied to find adjacent cutting side faces.

void	SetReverseSide (bool reverseSide)
	Sets the value to decide if the normal face assignment should be done to the opposite side.

void	SetType (NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Types type)
	Sets the value for how to process the bodies and faces.

NXOpen::Expression *	TangentFaceThreshold ()
	Returns the value (in degrees) to determine if adjacent surfaces are tangent.

NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Types	Type ()
	Returns the value for how to process the bodies and faces.

NXOpen::Expression *	WeldGapThreshold ()
	Returns the maximum distance the profile, or another plate, can be from the selected plate face.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to create a Features::ShipDesign::CuttingSideFacesBuilder which is used to attribute the cutting side, and opposing cutting side, faces on the plate bodies.

 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateCuttingSideFacesBuilder  Features::ShipCollection::CreateCuttingSideFacesBuilder @endlink  <br>

Default values.

Property

Value

ProcessCoplanar

1

ProcessTangent

1

ReverseSide

0

TangentFaceThreshold.Value

15

WeldGapThreshold.Value

0 (millimeters part), 0 (inches part)

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Types

Type of operation to perform on the plate.

Automatic works through all the visible bodies and assigns the attributes. Manual allows the user to interactively select faces and assign data accordingly. Reverse only allows faces with existing attributes to be selected and then reverse the applied attributes on the existing selected faces.

Enumerator:

TypesAutomatic	Process all the visible solids to assign the cutting side face attributes.
TypesManual	Process all the selected solids to assign the cutting side attributes.
TypesReverse	Reverse the cutting side attributes of the selected solids.

Member Function Documentation

NXOpen::ScCollector* NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::CuttingSideFaces ( )

Returns the faces to identify, or attribute, as cutting side.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::DistanceTolerance ( )

Returns the modeling distance tolerance.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::ProcessCoplanar ( )

Returns the option identifying if a coplanar rule should be applied to find cutting side faces.

No limitiations are placed on adjacency of the faces (they can be far away from each other).
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::ProcessTangent ( )

Returns the option identifying if a tangent rule should be applied to find adjacent cutting side faces.

Faces must be adjacent and within the modeling distance tolerance.
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::ReverseSide ( )

Returns the value to decide if the normal face assignment should be done to the opposite side.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the modeling distance tolerance.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

distanceTolerance distancetolerance

void NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::SetProcessCoplanar ( bool processCoplanar )

Sets the option identifying if a coplanar rule should be applied to find cutting side faces.

No limitiations are placed on adjacency of the faces (they can be far away from each other).
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

processCoplanar processcoplanar

void NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::SetProcessTangent ( bool processTangent )

Sets the option identifying if a tangent rule should be applied to find adjacent cutting side faces.

Faces must be adjacent and within the modeling distance tolerance.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

processTangent processtangent

void NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::SetReverseSide ( bool reverseSide )

Sets the value to decide if the normal face assignment should be done to the opposite side.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

reverseSide reverseside

void NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::SetType ( NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Types type )

Sets the value for how to process the bodies and faces.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

type type

NXOpen::Expression* NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::TangentFaceThreshold ( )

Returns the value (in degrees) to determine if adjacent surfaces are tangent.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Types NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::Type ( )

Returns the value for how to process the bodies and faces.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::CuttingSideFacesBuilder::WeldGapThreshold ( )

Returns the maximum distance the profile, or another plate, can be from the selected plate face.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_CuttingSideFacesBuilder.hxx
