The Unbend feature class. More...

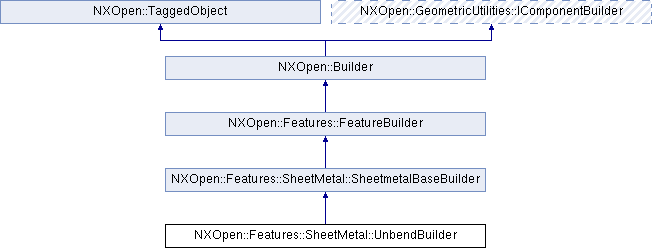

Inheritance diagram for NXOpen::Features::SheetMetal::UnbendBuilder:

Public Member Functions
NXOpen::Section *	AddedGeometry ()
	Returns the added geometry selection Created in NX8.0.0.

NXOpen::ScCollector *	FaceCollector ()
	Returns the bend faces Created in NX5.0.0.

bool	HideOriginalCurves ()
	Returns the option to keep or hide input curves Created in NX8.0.0.

NXOpen::NXObject *	ReferenceEntity ()
	Returns the non-thickness planar face or linear edge to remain fixed while part is unbent Created in NX5.0.0.

void	SetAddedGeometry (NXOpen::Section *addedGeometry)
	Sets the added geometry selection Created in NX8.0.0.

void	SetFaceCollector (NXOpen::ScCollector *faceCollector)
	Sets the bend faces Created in NX5.0.0.

void	SetHideOriginalCurves (bool hideOriginalCurves)
	Sets the option to keep or hide input curves Created in NX8.0.0.

void	SetReferenceEntity (NXOpen::NXObject *referenceEntity)
	Sets the non-thickness planar face or linear edge to remain fixed while part is unbent Created in NX5.0.0.

int	ValidateBuilderData ()
	Verify whether the builder data is valid for creating Unbend or not.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

The Unbend feature class.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateUnbendFeatureBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::Section* NXOpen::Features::SheetMetal::UnbendBuilder::AddedGeometry ( )

Returns the added geometry selection
Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::SheetMetal::UnbendBuilder::FaceCollector ( )

Returns the bend faces
Created in NX5.0.0.
