Represents a Features::SheetMetalFromSolid builder (Sheet Metal from Solid). More...

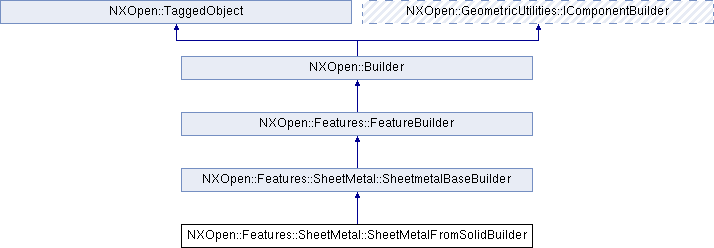

Inheritance diagram for NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder:

Public Member Functions
NXOpen::ScCollector *	BendEdges ()
	Returns the bend edges Created in NX6.0.0.

NXOpen::Features::SheetMetal::BendOptions *	BendOptions ()
	Returns the bend options Created in NX6.0.0.

std::vector< NXOpen::Edge * >	GetAutomaticBendEdges ()
	Get the automatic bend edges.

std::vector< NXOpen::Edge * >	GetCandidateBendEdges ()
	Get the candidate bend edges.

bool	ReverseDirection ()
	Returns the reverse direction Created in NX6.0.0.

void	SetReverseDirection (bool reverseDirection)
	Sets the reverse direction Created in NX6.0.0.

void	SetUseGlobalThickness (bool useGlobalThickness)
	Sets the use global thickness Created in NX6.0.0.

NXOpen::Expression *	Thickness ()
	Returns the thickness Created in NX6.0.0.

bool	UseGlobalThickness ()
	Returns the use global thickness Created in NX6.0.0.

NXOpen::ScCollector *	WebFaces ()
	Returns the web faces Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::SheetMetalFromSolid builder (Sheet Metal from Solid).

 <br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateSheetMetalFromSolidBuilder  Features::SheetMetal::SheetmetalManager::CreateSheetMetalFromSolidBuilder @endlink  <br>

Default values.

Property

Value

Thickness.Value

3.0 (millimeters part), 0.1 (inches part)

UseGlobalThickness

1

Created in NX6.0.0.

Member Function Documentation

NXOpen::ScCollector* NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::BendEdges ( )

Returns the bend edges
Created in NX6.0.0.

License requirements : None

NXOpen::Features::SheetMetal::BendOptions* NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::BendOptions ( )

Returns the bend options
Created in NX6.0.0.

License requirements : None

std::vector<NXOpen::Edge *> NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::GetAutomaticBendEdges ( )

Get the automatic bend edges.

Returns: Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

std::vector<NXOpen::Edge *> NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::GetCandidateBendEdges ( )

Get the candidate bend edges.

Returns: Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::ReverseDirection ( )

Returns the reverse direction
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::SetReverseDirection ( bool reverseDirection )

Sets the reverse direction
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

reverseDirection reversedirection

void NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::SetUseGlobalThickness ( bool useGlobalThickness )

Sets the use global thickness
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

useGlobalThickness useglobalthickness

NXOpen::Expression* NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::Thickness ( )

Returns the thickness
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::UseGlobalThickness ( )

Returns the use global thickness
Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::SheetMetal::SheetMetalFromSolidBuilder::WebFaces ( )

Returns the web faces
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_SheetMetal_SheetMetalFromSolidBuilder.hxx
