Represents a ResizeBendRadius feature builder. More...

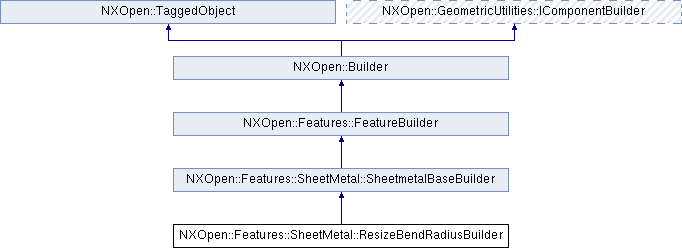

Inheritance diagram for NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder:
Public Types | |
| enum | BendReliefTypeOptions { BendReliefTypeOptionsSquare, BendReliefTypeOptionsRound, BendReliefTypeOptionsNone } |
| This enum represents the bend relief type. More... | |
| enum | Types { TypesFixedFoldedLength, TypesFixedUnfoldedLength } |
| This enum represents the feature types. More... | |
Public Member Functions | |
| NXOpen::ScCollector * | BendFaces () |
| Returns the bend faces Created in NX5.0.0. | |
| NXOpen::Expression * | BendRadius () |
| Returns the bend radius Created in NX5.0.0. | |
| NXOpen::Expression * | BendReliefDepth () |
| Returns the bend relief depth. | |
| NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefTypeOptions | BendReliefType () |
| Returns the relief type for the resize bend radius feature.The options are in Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefType . | |
| NXOpen::Expression * | BendReliefWidth () |
| Returns the bend relief width. | |
| NXOpen::SelectDisplayableObject * | ReferenceEntity () |
| Returns the non-thickness planar face or linear edge to remain fixed while bend is resized Created in NX7.0.0. | |
| void | SetBendReliefType (NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefTypeOptions bendReliefType) |
Created in NX9.0.0. | |
| void | SetType (NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::Types type) |
| Sets the feature type Created in NX7.0.0. | |
| NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::Types | Type () |
| Returns the feature type Created in NX7.0.0. | |
 Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder | |
| NXOpen::Features::SheetMetal::ApplicationContext | GetApplicationContext () |
| Get the application context. | |
| void | SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext) |
| Set the application context. | |
| Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a ResizeBendRadius feature builder.
<br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateResizeBendRadiusFeatureBuilder Features::SheetMetal::SheetmetalManager::CreateResizeBendRadiusFeatureBuilder @endlink <br>
Created in NX5.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::ScCollector* NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendFaces | ( | ) |
Returns the bend faces
Created in NX5.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
| NXOpen::Expression* NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendRadius | ( | ) |
Returns the bend radius
Created in NX5.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
| NXOpen::Expression* NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefDepth | ( | ) |
Returns the bend relief depth.
Created in NX9.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
| NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefTypeOptions NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefType | ( | ) |
Returns the relief type for the resize bend radius feature.The options are in Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefType .
Created in NX9.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
| NXOpen::Expression* NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefWidth | ( | ) |
Returns the bend relief width.
Created in NX9.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
| NXOpen::SelectDisplayableObject* NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::ReferenceEntity | ( | ) |
Returns the non-thickness planar face or linear edge to remain fixed while bend is resized
Created in NX7.0.0.
License requirements : None
| void NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::SetBendReliefType | ( | NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::BendReliefTypeOptions | bendReliefType | ) |
Created in NX9.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
- Parameters
-
bendReliefType bend relief type
| void NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::SetType | ( | NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::Types | type | ) |
Sets the feature type
Created in NX7.0.0.
License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")
- Parameters
-
type type
| NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::Types NXOpen::Features::SheetMetal::ResizeBendRadiusBuilder::Type | ( | ) |
Returns the feature type
Created in NX7.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_SheetMetal_ResizeBendRadiusBuilder.hxx
