Represents a Features::HemFlange builder
To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateHemFlangeFeatureBuilder

Created in NX5.0.0. More...

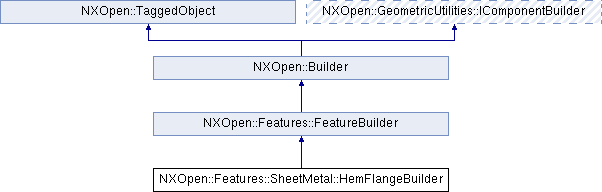

Inheritance diagram for NXOpen::Features::SheetMetal::HemFlangeBuilder:

Public Types
enum	BendReliefOptions { BendReliefOptionsSquare, BendReliefOptionsRound, BendReliefOptionsNone }
	This enum represents the Bend relief type of the hem flange. More...

enum	InsetTypeOptions { InsetTypeOptionsMaterialInside, InsetTypeOptionsMaterialOutside, InsetTypeOptionsBendOutside }
	This enum represents the inset type for the material of the hem flange. More...

enum	TypeOptions { TypeOptionsClosedHemType, TypeOptionsOpenHemType, TypeOptionsSFlangeHemType, TypeOptionsCurlHemType, TypeOptionsOpenLoopHemType, TypeOptionsClosedLoopHemType, TypeOptionsCenteredLoopHemType }
	Represents the Hem Flange type. More...

Public Member Functions
NXOpen::Expression *	BendReliefDepth ()
	Returns the bend relief depth Created in NX5.0.0.

NXOpen::Features::SheetMetal::HemFlangeBuilder::BendReliefOptions	BendReliefType ()
	Returns the bend relief type Created in NX5.0.0.

NXOpen::Expression *	BendReliefWidth ()
	Returns the bend relief width Created in NX5.0.0.

NXOpen::ScCollector *	EdgeChain ()
	Returns the edge chain Created in NX5.0.0.

NXOpen::Expression *	FirstBendRadius ()
	Returns the first bend radius Created in NX5.0.0.

NXOpen::Expression *	FirstFlangeLength ()
	Returns the first flange length Created in NX5.0.0.

NXOpen::Features::SheetMetal::HemFlangeBuilder::InsetTypeOptions	InsetType ()
	Returns the inset type options Created in NX5.0.0.

NXOpen::Expression *	MiterAngle ()
	Returns the miter angle Created in NX5.0.0.

NXOpen::Expression *	NeutralFactor ()
	Returns the neutral factor Created in NX5.0.0.

NXOpen::Expression *	SecondBendRadius ()
	Returns the second bend radius Created in NX5.0.0.

NXOpen::Expression *	SecondFlangeLength ()
	Returns the second flange length Created in NX5.0.0.

void	SetBendReliefType (NXOpen::Features::SheetMetal::HemFlangeBuilder::BendReliefOptions bendReliefType)
	Sets the bend relief type Created in NX5.0.0.

void	SetInsetType (NXOpen::Features::SheetMetal::HemFlangeBuilder::InsetTypeOptions insetType)
	Sets the inset type options Created in NX5.0.0.

void	SetType (NXOpen::Features::SheetMetal::HemFlangeBuilder::TypeOptions type)
	Sets the hem type Created in NX5.0.0.

void	SetUseMiter (bool useMiterHem)
	Sets the use miter hem Created in NX5.0.0.

NXOpen::Expression *	SweepAngle ()
	Returns the sweep Created in NX5.0.0.

NXOpen::Features::SheetMetal::HemFlangeBuilder::TypeOptions	Type ()
	Returns the hem type Created in NX5.0.0.

bool	UseMiter ()
	Returns the use miter hem Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::HemFlange builder
To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateHemFlangeFeatureBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::HemFlangeBuilder::BendReliefOptions

This enum represents the Bend relief type of the hem flange.

Enumerator:

BendReliefOptionsSquare	square
BendReliefOptionsRound	round
BendReliefOptionsNone	none

enum NXOpen::Features::SheetMetal::HemFlangeBuilder::InsetTypeOptions

This enum represents the inset type for the material of the hem flange.

Enumerator:

InsetTypeOptionsMaterialInside	The hem flange is flush with the thickness face on the inside.
InsetTypeOptionsMaterialOutside	The hem flange is flush with the thickness face on the outside.
InsetTypeOptionsBendOutside	The bend and hem flange are outside the thickness face.

enum NXOpen::Features::SheetMetal::HemFlangeBuilder::TypeOptions

Represents the Hem Flange type.

Enumerator:

TypeOptionsClosedHemType	closed hem type
TypeOptionsOpenHemType	open hem type
TypeOptionsSFlangeHemType	sflange hem type
TypeOptionsCurlHemType	curl hem type
TypeOptionsOpenLoopHemType	open loop hem type
TypeOptionsClosedLoopHemType	closed loop hem type
TypeOptionsCenteredLoopHemType	centered loop hem type
