Represents a Flat As Solid feature builder. More...

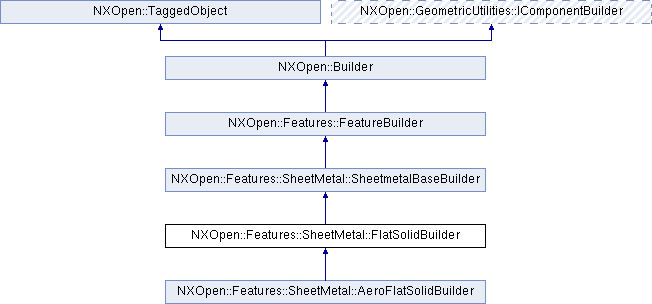

Inheritance diagram for NXOpen::Features::SheetMetal::FlatSolidBuilder:

Public Member Functions
NXOpen::Section *	AddedGeometry ()
	Returns the added geometry selection Created in NX6.0.0.

NXOpen::Features::SheetMetal::CornerTreatmentBuilder *	InnerCornerTreatment ()
	Returns the inner corner treatment corner object Created in NX6.0.0.

NXOpen::Features::SheetMetal::CornerTreatmentBuilder *	OuterCornerTreatment ()
	Returns the outer corner treatment corner object Created in NX6.0.0.

NXOpen::Point3d	ReferenceVertex ()
	Returns the end of the edge where the tangent will define the x axis for flat as solid.

void	SetReferenceVertex (const NXOpen::Point3d &vertex)
	Sets the end of the edge where the tangent will define the x axis for flat as solid.

void	SetTransformToAbsoluteCsys (bool transformFlag)
	Sets the flag which decides if the flattened solid will be transformed to Absolute CSYS.

NXOpen::SelectFace *	StationaryFace ()
	Returns the stationary face selection Created in NX6.0.0.

bool	TransformToAbsoluteCsys ()
	Returns the flag which decides if the flattened solid will be transformed to Absolute CSYS.

int	ValidateBuilderData ()
	Validate the builder data.

NXOpen::SelectEdge *	XAxisEdge ()
	Returns the x axis edge selection Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Flat As Solid feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateFlatSolidFeatureBuilder
Default values.

Property

Value

InnerCornerTreatment.TreatmentType

None

InnerCornerTreatment.UseGlobal

1

InnerCornerTreatment.Value.Value

0 (millimeters part), 0 (inches part)

Created in NX4.0.0.

Member Function Documentation

NXOpen::Section* NXOpen::Features::SheetMetal::FlatSolidBuilder::AddedGeometry ( )

Returns the added geometry selection
Created in NX6.0.0.

License requirements : None

NXOpen::Features::SheetMetal::CornerTreatmentBuilder* NXOpen::Features::SheetMetal::FlatSolidBuilder::InnerCornerTreatment ( )

Returns the inner corner treatment corner object
Created in NX6.0.0.

License requirements : None

NXOpen::Features::SheetMetal::CornerTreatmentBuilder* NXOpen::Features::SheetMetal::FlatSolidBuilder::OuterCornerTreatment ( )

Returns the outer corner treatment corner object
Created in NX6.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Features::SheetMetal::FlatSolidBuilder::ReferenceVertex ( )

Returns the end of the edge where the tangent will define the x axis for flat as solid.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

void NXOpen::Features::SheetMetal::FlatSolidBuilder::SetReferenceVertex ( const NXOpen::Point3d & vertex )

Sets the end of the edge where the tangent will define the x axis for flat as solid.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

vertex One of the end points of the reference edge.

void NXOpen::Features::SheetMetal::FlatSolidBuilder::SetTransformToAbsoluteCsys ( bool transformFlag )

Sets the flag which decides if the flattened solid will be transformed to Absolute CSYS.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

transformFlag True = Transform to ABS, False = Do not transform to ABS.

NXOpen::SelectFace* NXOpen::Features::SheetMetal::FlatSolidBuilder::StationaryFace ( )

Returns the stationary face selection
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::FlatSolidBuilder::TransformToAbsoluteCsys ( )

Returns the flag which decides if the flattened solid will be transformed to Absolute CSYS.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

int NXOpen::Features::SheetMetal::FlatSolidBuilder::ValidateBuilderData ( )

Validate the builder data.

Returns: 0 Means no errors.
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::SelectEdge* NXOpen::Features::SheetMetal::FlatSolidBuilder::XAxisEdge ( )

Returns the x axis edge selection
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_SheetMetal_FlatSolidBuilder.hxx
