Represents a Edge Rip feature builder. More...

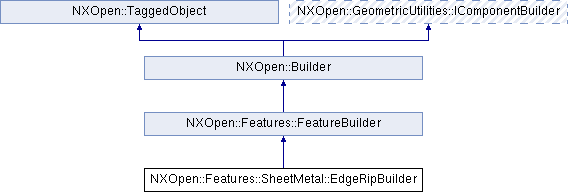

Inheritance diagram for NXOpen::Features::SheetMetal::EdgeRipBuilder:

Public Member Functions
std::vector< NXOpen::Edge * >	GetRipEdges ()
	Edges to rip.

NXOpen::Section *	Section ()
	Returns the section used by Edge Rip Created in NX4.0.0.

void	SetRipEdges (const std::vector< NXOpen::Edge * > &ripEdges)
	Edges to rip Created in NX5.0.0.

void	SetSection (NXOpen::Section *section)
	Sets the section used by Edge Rip Created in NX4.0.0.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the Slave Sketch used by the Edge Rip, If one exists.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the Slave Sketch used by the Edge Rip, If one exists.

int	ValidateBuilderData ()
	Verify whether the builder data is valid for creating a Edge Rip or not.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Edge Rip feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateEdgeRipFeatureBuilder

Created in NX4.0.0.

Member Function Documentation

std::vector<NXOpen::Edge *> NXOpen::Features::SheetMetal::EdgeRipBuilder::GetRipEdges ( )

Edges to rip.

Returns: Rip Edges
Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

NXOpen::Section* NXOpen::Features::SheetMetal::EdgeRipBuilder::Section ( )

Returns the section used by Edge Rip
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

void NXOpen::Features::SheetMetal::EdgeRipBuilder::SetRipEdges ( const std::vector< NXOpen::Edge * > & ripEdges )

Edges to rip
Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

ripEdges Rip Edges

void NXOpen::Features::SheetMetal::EdgeRipBuilder::SetSection ( NXOpen::Section * section )

Sets the section used by Edge Rip
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

section section

void NXOpen::Features::SheetMetal::EdgeRipBuilder::SetSketch ( NXOpen::Features::SketchFeature * sketch )

Sets the Slave Sketch used by the Edge Rip, If one exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

sketch sketch

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::EdgeRipBuilder::Sketch ( )

Returns the Slave Sketch used by the Edge Rip, If one exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

int NXOpen::Features::SheetMetal::EdgeRipBuilder::ValidateBuilderData ( )

Verify whether the builder data is valid for creating a Edge Rip or not.

        <br>
            If the Builder data is valid, returned value shall be 0

        <br>
    @return  Data Validity Flag.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

The documentation for this class was generated from the following file:

Features_SheetMetal_EdgeRipBuilder.hxx
