Represents a Bridge Transition builder
To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateBridgeTransitionBuilder

Created in NX5.0.2. More...

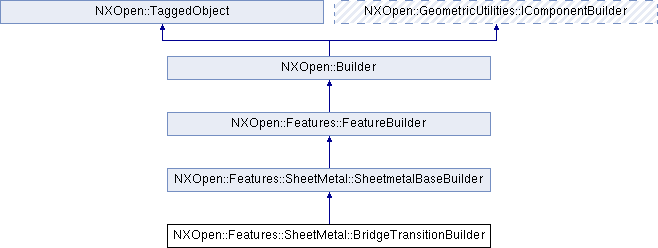

Inheritance diagram for NXOpen::Features::SheetMetal::BridgeTransitionBuilder:

Public Types
enum	InsetOptions { InsetOptionsMaterialInside, InsetOptionsMaterialOutside }
	Enum representing the side of the Bridge Transition material with respect to the specified tangent plane. More...

enum	TypeOptions { TypeOptionsZu, TypeOptionsFold }
	Enum representing types for Bridge Transition feature. More...

enum	WidthDirectionOptions { WidthDirectionOptionsLeft, WidthDirectionOptionsRight }
	Enum representing the width direction for the Bridge Transition. More...

enum	WidthOptions { WidthOptionsFinite, WidthOptionsSymmetric, WidthOptionsFullStartEdge, WidthOptionsFullEndEdge, WidthOptionsFullBothEdges }
	Enum representing width option types for Bridge Transition feature. More...

Public Member Functions
NXOpen::SelectEdge *	EndEdge ()
	Returns the end edge Created in NX5.0.2.

NXOpen::Expression *	EndRadius ()
	Returns the inner bend radius of bend region near end edge.

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetOptions	InsetType ()
	Returns the inset type Created in NX5.0.2.

NXOpen::Expression *	Length ()
	Returns the length of the planar region near start edge.

NXOpen::SelectISurface *	Plane ()
	Returns the tangential plane Created in NX5.0.2.

NXOpen::Point *	Point ()
	Returns the point with respect to which the finite or symmetric width is specified.

void	SetInsetType (NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetOptions insetType)
	Sets the inset type Created in NX5.0.2.

void	SetPoint (NXOpen::Point *point)
	Sets the point with respect to which the finite or symmetric width is specified.

void	SetType (NXOpen::Features::SheetMetal::BridgeTransitionBuilder::TypeOptions type)
	Sets the transition type Created in NX5.0.2.

void	SetWidthDirection (NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptions widthDirection)
	Sets the width direction.

void	SetWidthType (NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthOptions widthType)
	Sets the width type Created in NX5.0.2.

NXOpen::SelectEdge *	StartEdge ()
	Returns the start edge Created in NX5.0.2.

NXOpen::Expression *	StartRadius ()
	Returns the inner bend radius of the bend region near start edge.

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::TypeOptions	Type ()
	Returns the transition type Created in NX5.0.2.

NXOpen::Expression *	Width ()
	Returns the width Created in NX5.0.2.

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptions	WidthDirection ()
	Returns the width direction.

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthOptions	WidthType ()
	Returns the width type Created in NX5.0.2.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Bridge Transition builder
To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateBridgeTransitionBuilder

Created in NX5.0.2.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetOptions

Enum representing the side of the Bridge Transition material with respect to the specified tangent plane.

If it is Features::SheetMetal::BridgeTransitionBuilder::InsetOptionsMaterialInside then the transtion and start edge flow will be on the same logical side of the plane. If they are on opposite sides then use Features::SheetMetal::BridgeTransitionBuilder::InsetOptionsMaterialOutside .

Enumerator:

InsetOptionsMaterialInside	Bridge Transition body near tangential plane and start will be on same side of the tangential plane selected.
InsetOptionsMaterialOutside	Bridge Transition body near tangential plane and start will be on opposite sides of the tangential plane selected.

enum NXOpen::Features::SheetMetal::BridgeTransitionBuilder::TypeOptions

Enum representing types for Bridge Transition feature.

Enumerator:

TypeOptionsZu	Bridge Transition type consisting of Bend-Planar-Bend regions.
TypeOptionsFold	Bridge Transition type consisting of Planar-Bend-Planar regions.

enum NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptions

Enum representing the width direction for the Bridge Transition.

This enum applies only when the width type is Features::SheetMetal::BridgeTransitionBuilder::WidthOptionsFinite . The Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptionsRight option indicates that the width is in the counter clockwise direction of flow of the start edge in the non-thickness face adjacent to it. The Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptionsLeft option indicates the width is in the opposite direction.

Enumerator:

WidthDirectionOptionsLeft	It means Bridge Transition width direction at point specified and fin direction are in opposite direction.
WidthDirectionOptionsRight	It means Bridge Transition width direction at point specified and fin direction are in same direction.

enum NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthOptions

Enum representing width option types for Bridge Transition feature.

Enumerator:

WidthOptionsFinite	Bridge Transition starts at specified point on start edge and extends on one side by the specified distance.
WidthOptionsSymmetric	Bridge Transition starts at specified point on start edge and extends on either side by half the specified distance.
WidthOptionsFullStartEdge	Bridge Transition spans the full length of start edge.
WidthOptionsFullEndEdge	Bridge Transition spans the full length of end edge.
WidthOptionsFullBothEdges	Bridge Transition spans the full length of both the edges.

Member Function Documentation

NXOpen::SelectEdge* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::EndEdge ( )

Returns the end edge
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Expression* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::EndRadius ( )

Returns the inner bend radius of bend region near end edge.

       End radius required to be specified for @link Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsZu Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsZu@endlink .

Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetOptions NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetType ( )

Returns the inset type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Expression* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::Length ( )

Returns the length of the planar region near start edge.

       Length is required to be specified for @link Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsFold Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsFold@endlink .

Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::SelectISurface* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::Plane ( )

Returns the tangential plane
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Point* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::Point ( )

Returns the point with respect to which the finite or symmetric width is specified.

Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

void NXOpen::Features::SheetMetal::BridgeTransitionBuilder::SetInsetType ( NXOpen::Features::SheetMetal::BridgeTransitionBuilder::InsetOptions insetType )

Sets the inset type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

Parameters

insetType insettype

void NXOpen::Features::SheetMetal::BridgeTransitionBuilder::SetPoint ( NXOpen::Point * point )

Sets the point with respect to which the finite or symmetric width is specified.

Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

Parameters

point point

void NXOpen::Features::SheetMetal::BridgeTransitionBuilder::SetType ( NXOpen::Features::SheetMetal::BridgeTransitionBuilder::TypeOptions type )

Sets the transition type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

Parameters

type type

void NXOpen::Features::SheetMetal::BridgeTransitionBuilder::SetWidthDirection ( NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptions widthDirection )

Sets the width direction.

Only applies if the width type is Features::SheetMetal::BridgeTransitionBuilder::WidthOptionsFinite
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

Parameters

widthDirection widthdirection

void NXOpen::Features::SheetMetal::BridgeTransitionBuilder::SetWidthType ( NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthOptions widthType )

Sets the width type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

Parameters

widthType widthtype

NXOpen::SelectEdge* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::StartEdge ( )

Returns the start edge
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Expression* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::StartRadius ( )

Returns the inner bend radius of the bend region near start edge.

       Start radius required to be specified for @link Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsZu Features::SheetMetal::BridgeTransitionBuilder::TypeOptionsZu@endlink .

Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::TypeOptions NXOpen::Features::SheetMetal::BridgeTransitionBuilder::Type ( )

Returns the transition type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Expression* NXOpen::Features::SheetMetal::BridgeTransitionBuilder::Width ( )

Returns the width
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirectionOptions NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthDirection ( )

Returns the width direction.

Only applies if the width type is Features::SheetMetal::BridgeTransitionBuilder::WidthOptionsFinite
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthOptions NXOpen::Features::SheetMetal::BridgeTransitionBuilder::WidthType ( )

Returns the width type
Created in NX5.0.2.

License requirements : nx_flexible_pcb ("NX Flexible PCB") OR adv_sheet_metal_dsgn ("ADVANCED SHEET METAL DESIGN")

The documentation for this class was generated from the following file:

Features_SheetMetal_BridgeTransitionBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
