Represents a Aerospace Sheet Metal Joggle Builder. More...

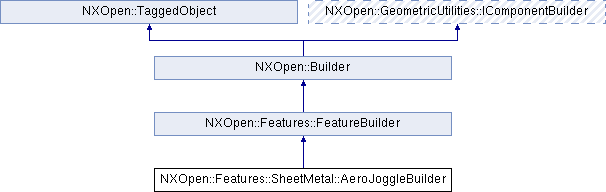

Inheritance diagram for NXOpen::Features::SheetMetal::AeroJoggleBuilder:

Public Types
enum	SideType { SideTypeSide1, SideTypeSide2 }
	This enum defines the side of a twin joggle only side1 is used for a single joggle. More...

Public Member Functions
NXOpen::ScCollector *	BendFaces ()
	Returns the flange.

NXOpen::Expression *	Depth ()
	Returns the depth expression.

bool	FlipJoggleSide ()
	Returns the joggle direction flag.

NXOpen::Expression *	GetClearance (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The clearance expression.

NXOpen::Plane *	GetEndPlane ()
	The end plane.

bool	GetGlobalOffsetRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The Global flag for offset radius.

bool	GetGlobalStationaryRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The Global flag for stationary radius.

NXOpen::Expression *	GetOffsetRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The offset radius expression.

NXOpen::Expression *	GetRunout (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The runout expression.

bool	GetStandardRunout (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The global flag for runout.

NXOpen::Plane *	GetStartPlane ()
	The start plane.

NXOpen::Expression *	GetStationaryRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType)
	The stationary radius expression.

bool	IsSymmetric ()
	Returns the symmetric flag.

bool	IsTwin ()
	Returns the is_twin flag.

bool	JoggleCompensation ()
	Returns the joggle compensation.

bool	JoggleIn ()
	Returns the joggle in flag.

void	SetBendFaces (NXOpen::ScCollector *bendFaces)
	Sets the flange.

void	SetClearance (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const NXString &clearanceStr)
	Set the clearance expression.

void	SetClearance (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const char *clearanceStr)
	Set the clearance expression.

void	SetDepth (const NXString &depthStr)
	Set the depth expression.

void	SetDepth (const char *depthStr)
	Set the depth expression.

void	SetEndPlane (NXOpen::Plane *endPlane)
	Set the end plane.

void	SetFlipJoggleSide (bool flipJoggleSide)
	Sets the joggle direction flag.

void	SetGlobalOffsetRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, bool globalRadius)
	Set the Global flag for offset radius.

void	SetGlobalStationaryRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, bool globalRadius)
	Set the Global flag for stationary radius.

void	SetJoggleCompensation (bool joggleComp)
	Sets the joggle compensation.

void	SetJoggleIn (bool joggleIn)
	Sets the joggle in flag.

void	SetOffsetRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const NXString &radiusStr)
	Set the offset radius expression.

void	SetOffsetRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const char *radiusStr)
	Set the offset radius expression.

void	SetRunout (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const NXString &runoutStr)
	Set the runout expression.

void	SetRunout (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const char *runoutStr)
	Set the runout expression.

void	SetStandardRunout (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, bool standardRunout)
	Set the Global flag for runout.

void	SetStartPlane (NXOpen::Plane *startPlane)
	Set the start plane.

void	SetStationaryRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const NXString &radiusStr)
	Set the stationary radius expression.

void	SetStationaryRadius (NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType sideType, const char *radiusStr)
	Set the stationary radius expression.

void	SetSymmetric (bool isSymmetric)
	Sets the symmetric flag.

void	SetTwin (bool isTwin)
	Sets the is_twin flag.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Aerospace Sheet Metal Joggle Builder.

    <br> To create a new instance of this class, use @link Features::SheetMetal::AeroSheetmetalManager::CreateJoggleBuilder  Features::SheetMetal::AeroSheetmetalManager::CreateJoggleBuilder @endlink  <br>

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::AeroJoggleBuilder::SideType

This enum defines the side of a twin joggle only side1 is used for a single joggle.

Enumerator:

SideTypeSide1	Side 1 (only side of single)
SideTypeSide2	Side 2.
