Represents a Aerospace Sheet Metal Flange Builder. More...

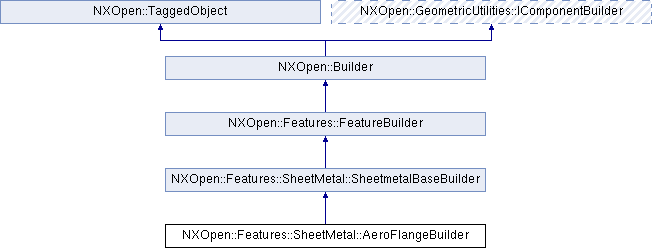

Inheritance diagram for NXOpen::Features::SheetMetal::AeroFlangeBuilder:

Public Types
enum	CompType { CompTypeAutomatic, CompTypeAngle, CompTypeDistance, CompTypeNone }
	This method defines the types of Flange Compensation. More...

enum	DimType { DimTypeInside, DimTypeOutside }
	This enum defines the flange length dimension types. More...

enum	DirType { DirTypeBend, DirTypeDiscard }
	This enum defines the type of direction vector. More...

enum	EndType { EndTypeEnd1, EndTypeEnd2, EndTypeClosed }
	This enum defines the ends of a bend edge. More...

enum	LengthType { LengthTypeValue, LengthTypeInfer }
	This enum defines the length type options. More...

enum	MatType { MatTypeMaterialInside, MatTypeMaterialOutside, MatTypeBendOutside }
	This enum defines the material types. More...

Public Member Functions
NXOpen::Expression *	Angle ()
	Returns the angle expression.

NXOpen::ScCollector *	BaseEdges ()
	Returns the base edge section object for the flange.

NXOpen::Features::SheetMetal::BendOptions *	BendOptions ()
	Returns the base edge section object for the flange.

bool	GetContourFlag ()
	Get the flag that turns on/off the visibility of Contour Curve.

NXOpen::Features::SheetMetal::AeroFlangeBuilder::DimType	GetDimensionType ()
	Get the length dimension type of the flange.

NXOpen::Expression *	GetEndCompensation (NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType endType, NXOpen::Features::SheetMetal::AeroFlangeBuilder::CompType *compType)
	Get end compensation.

NXOpen::Plane *	GetEndPlane (NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType endType)
	Get the end plane.

bool	GetFlipDirection (NXOpen::Features::SheetMetal::AeroFlangeBuilder::DirType type)
	Get flip direction.

NXOpen::Expression *	GetLength (NXOpen::Features::SheetMetal::AeroFlangeBuilder::LengthType *type)
	Get the type of length and the length expression.

NXOpen::Features::SheetMetal::AeroFlangeBuilder::MatType	GetMaterialType ()
	Get the material type of the flange.

NXOpen::ScCollector *	RefFaces ()
	Returns the ref face smart collector object.

void	SetAngle (const NXString &angleExpression)
	Set the angle expression.

void	SetAngle (const char *angleExpression)
	Set the angle expression.

void	SetBaseEdges (NXOpen::ScCollector *baseEdges)
	Sets the base edge section object for the flange.

void	SetContourFlag (bool showContour)
	Set the flag that turns on/off the visibility of Contour Curve.

void	SetDimensionType (NXOpen::Features::SheetMetal::AeroFlangeBuilder::DimType dimType)
	Set the length dimension type of the flange.

void	SetEndCompensation (NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType endType, NXOpen::Features::SheetMetal::AeroFlangeBuilder::CompType compType, const NXString &valueExpression)
	Set end compensation.

void	SetEndCompensation (NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType endType, NXOpen::Features::SheetMetal::AeroFlangeBuilder::CompType compType, const char *valueExpression)
	Set end compensation.

void	SetEndPlane (NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType endType, NXOpen::Plane *endPlane)
	Set the end plane.

void	SetFlipDirection (NXOpen::Features::SheetMetal::AeroFlangeBuilder::DirType type, bool flipFlag)
	Set flip direction.

void	SetLength (NXOpen::Features::SheetMetal::AeroFlangeBuilder::LengthType type, const NXString &valueExpression)
	Set the type of length and the length expression.

void	SetLength (NXOpen::Features::SheetMetal::AeroFlangeBuilder::LengthType type, const char *valueExpression)
	Set the type of length and the length expression.

void	SetMaterialType (NXOpen::Features::SheetMetal::AeroFlangeBuilder::MatType matType)
	Set the material type of the flange.

void	SetRefFaces (NXOpen::ScCollector *faceCollector)
	Sets the ref face smart collector object.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Aerospace Sheet Metal Flange Builder.

    <br> To create a new instance of this class, use @link Features::SheetMetal::AeroSheetmetalManager::CreateFlangeBuilder  Features::SheetMetal::AeroSheetmetalManager::CreateFlangeBuilder @endlink  <br>

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::CompType

This method defines the types of Flange Compensation.

Enumerator:

CompTypeAutomatic	Automatic.
CompTypeAngle	Angle.
CompTypeDistance	Distance.
CompTypeNone	None.

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::DimType

This enum defines the flange length dimension types.

Enumerator:

DimTypeInside	Inside Dimension.
DimTypeOutside	Outside Dimension.

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::DirType

This enum defines the type of direction vector.

Enumerator:

DirTypeBend	Bend Direction Type.
DirTypeDiscard	Discard Direction Type.

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::EndType

This enum defines the ends of a bend edge.

Enumerator:

EndTypeEnd1	Start of section.
EndTypeEnd2	End of section.
EndTypeClosed	Periodic Bend Edge.

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::LengthType

This enum defines the length type options.

Enumerator:

LengthTypeValue	Value.
LengthTypeInfer	Infer from face.

enum NXOpen::Features::SheetMetal::AeroFlangeBuilder::MatType

This enum defines the material types.

Enumerator:

MatTypeMaterialInside	Material Inside.
MatTypeMaterialOutside	Material Outside.
MatTypeBendOutside	Bend Outside.
