Represents a RPO builder. More...

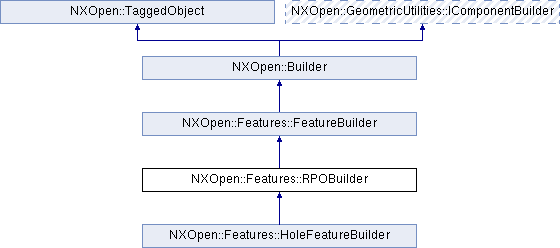

Inheritance diagram for NXOpen::Features::RPOBuilder:

Public Types
enum	AssociativityType { AssociativityTypeEndPoint, AssociativityTypeArcCenter, AssociativityTypeTangency, AssociativityTypeEndPoint1, AssociativityTypeEndPoint2, AssociativityTypeVerticalCenterline1, AssociativityTypeVerticalCenterline2, AssociativityTypeHorizontalCenterline1, AssociativityTypeHorizontalCenterline2 }
	Represents the associativity type for a dimension entity. More...

Public Member Functions
void	ApplyDimensions ()
	Transforms the feature by applying the positioning dimensions Created in NX3.0.0.

NXOpen::Features::RPODimension *	CreateDimension ()
	Creates a new empty RPODimension object.

void	CreatePositioningDimension ()
	Creates a positioning dimension.

void	GetReferenceDirection (NXOpen::IReferenceAxis *reference, NXOpen::AxisOrientation orientation)
	Query/Set a horizontal or vertical reference for the feature.

std::vector < NXOpen::Features::RPODimension * >	GetRpoDimensions ()
	Gets the list of RPO dimemsions.

void	HidePositioningDimensions ()
	Hides display of all the positioning dimensions Created in NX3.0.0.

void	SetExpression (const NXString &expression)
	Sets the expression value in order to constrain the target and tool entities which are set using NXOpen::Features::RPOBuilder::SetTargetAndTool .

void	SetExpression (const char *expression)
	Sets the expression value in order to constrain the target and tool entities which are set using NXOpen::Features::RPOBuilder::SetTargetAndTool .

void	SetReferenceDirection (NXOpen::IReferenceAxis *reference, NXOpen::AxisOrientation orientation)
	Sets a horizontal or vertical reference for the feature.

void	SetRpoDimensions (const std::vector< NXOpen::Features::RPODimension * > &dimensions)
	Sets the list of RPO dimemsions.

void	SetTargetAndTool (NXOpen::PositioningDimension::Subtype subtype, NXOpen::NXObject target, NXOpen::Features::RPOBuilder::AssociativityType targetAssociativity, const NXOpen::Point3d &targetHelpPoint, NXOpen::NXObject tool, NXOpen::Features::RPOBuilder::AssociativityType toolAssociativity, const NXOpen::Point3d &toolHelpPoint)
	Sets the target and tool entities.

void	ShowPositioningDimensions ()
	Displays all the positioning dimensions Created in NX3.0.0.

void	UndoLastDimension ()
	Undo the last positioning dimension Created in NX3.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a RPO builder.

It provides methods to create positioning dimensions to position the feature which is being created.
This is an abstract class, and cannot be instantiated

Created in NX3.0.0.

Member Enumeration Documentation

enum NXOpen::Features::RPOBuilder::AssociativityType

Represents the associativity type for a dimension entity.

Enumerator:

AssociativityTypeEndPoint	End-point (determined from 3d help point)
AssociativityTypeArcCenter	Arc-center.
AssociativityTypeTangency	Tangency.
AssociativityTypeEndPoint1	1st end point (at minimum parameter value)
AssociativityTypeEndPoint2	2nd end point
AssociativityTypeVerticalCenterline1	vertical centerline end point 1
AssociativityTypeVerticalCenterline2	vertical centerline end point 2
AssociativityTypeHorizontalCenterline1	horizontal centerline end point 1
AssociativityTypeHorizontalCenterline2	horizontal centerline end point 2

Member Function Documentation

void NXOpen::Features::RPOBuilder::ApplyDimensions ( )

Transforms the feature by applying the positioning dimensions
Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Features::RPODimension* NXOpen::Features::RPOBuilder::CreateDimension ( )

Creates a new empty RPODimension object.

Returns: The RPO dimensions
Created in NX4.0.0.

License requirements : None

void NXOpen::Features::RPOBuilder::CreatePositioningDimension ( )

Creates a positioning dimension.

   This is third and the last step in creating a positioning dimension.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::RPOBuilder::GetReferenceDirection	(	NXOpen::IReferenceAxis **	reference,
		NXOpen::AxisOrientation *	orientation
	)

Query/Set a horizontal or vertical reference for the feature.

A reference is required to be set before creating a Horizontal or Vertical positioning dimension.
Created in NX4.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

reference	Reference entity
orientation	Orientation of reference

std::vector<NXOpen::Features::RPODimension *> NXOpen::Features::RPOBuilder::GetRpoDimensions ( )

Gets the list of RPO dimemsions.

@return  The RPO dimensions

Created in NX4.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::RPOBuilder::HidePositioningDimensions ( )

Hides display of all the positioning dimensions
Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::RPOBuilder::SetExpression ( const NXString & expression )

Sets the expression value in order to constrain the target and tool entities which are set using NXOpen::Features::RPOBuilder::SetTargetAndTool .

   This is the second step in creating a positioning dimension.
   This step is not needed for @link PositioningDimension::SubtypePointOntoPoint PositioningDimension::SubtypePointOntoPoint@endlink ,
   @link PositioningDimension::SubtypePointOntoLine PositioningDimension::SubtypePointOntoLine@endlink
   and @link PositioningDimension::SubtypeLineOntoLine PositioningDimension::SubtypeLineOntoLine@endlink

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

expression Expression string

void NXOpen::Features::RPOBuilder::SetExpression ( const char * expression )

Sets the expression value in order to constrain the target and tool entities which are set using NXOpen::Features::RPOBuilder::SetTargetAndTool .

   This is the second step in creating a positioning dimension.
   This step is not needed for @link PositioningDimension::SubtypePointOntoPoint PositioningDimension::SubtypePointOntoPoint@endlink ,
   @link PositioningDimension::SubtypePointOntoLine PositioningDimension::SubtypePointOntoLine@endlink
   and @link PositioningDimension::SubtypeLineOntoLine PositioningDimension::SubtypeLineOntoLine@endlink

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

expression Expression string

void NXOpen::Features::RPOBuilder::SetReferenceDirection	(	NXOpen::IReferenceAxis *	reference,
		NXOpen::AxisOrientation	orientation
	)

Sets a horizontal or vertical reference for the feature.

A reference is required to be set before creating a PositioningDimension::SubtypeHorizontal or PositioningDimension::SubtypeVertical subtype of positioning dimension.
Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

reference	Reference entity
orientation	Orientation of reference

void NXOpen::Features::RPOBuilder::SetRpoDimensions ( const std::vector< NXOpen::Features::RPODimension * > & dimensions )

Sets the list of RPO dimemsions.

Created in NX4.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

dimensions The RPO dimensions

void NXOpen::Features::RPOBuilder::SetTargetAndTool	(	NXOpen::PositioningDimension::Subtype	subtype,
		NXOpen::NXObject *	target,
		NXOpen::Features::RPOBuilder::AssociativityType	targetAssociativity,
		const NXOpen::Point3d &	targetHelpPoint,
		NXOpen::NXObject *	tool,
		NXOpen::Features::RPOBuilder::AssociativityType	toolAssociativity,
		const NXOpen::Point3d &	toolHelpPoint
	)

Sets the target and tool entities.

This is the first step in creating a positioning dimension. A positioning dimension constraints two entities. These two entities are referred to as target and tool enitities. The tool entity is selected from the tool body which is being created. For example, if a Pad is being created then the tool entity can be an edge of the Pad. The target entity is an entity which does not belong to the tool body which is being created.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

subtype	Subtype of dimension
target	Target entity
targetAssociativity	Associativity for target entity
targetHelpPoint	Help point for taregt entity
tool	Tool entity
toolAssociativity	Associativity for tool entity
toolHelpPoint	Help point for tool entity

void NXOpen::Features::RPOBuilder::ShowPositioningDimensions ( )

Displays all the positioning dimensions
Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::RPOBuilder::UndoLastDimension ( )

Undo the last positioning dimension
Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

The documentation for this class was generated from the following file:

Features_RPOBuilder.hxx
