Represents a @link Features::LinearDimension Features::LinearDimension@endlink  builder
 <br> To create a new instance of this class, use @link Features::FeatureCollection::CreateLinearDimensionBuilder  Features::FeatureCollection::CreateLinearDimensionBuilder @endlink  <br>

Default values. More...

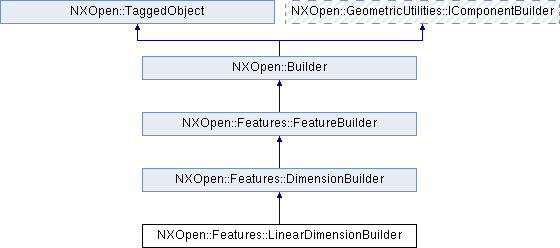

Inheritance diagram for NXOpen::Features::LinearDimensionBuilder:

Public Types
enum	OrientationOptionType { OrientationOptionTypeOrientXpress, OrientationOptionTypeVector }
	the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension More...

Public Member Functions
NXOpen::GeometricUtilities::OrientXpressBuilder *	DimensionOrientation ()
	Returns the OrientXpress that is employed in the ADM Linear Dimension Feature Created in NX6.0.0.

NXOpen::Direction *	DimensionOrientationVector ()
	Returns the dimension orientation vector for the Linear Dimension Created in NX6.0.0.

NXOpen::SelectNXObject *	MeasurementObject ()
	Returns the measurement object to which the ADM Linear Dimension is measured to Created in NX6.0.0.

NXOpen::Features::LinearDimensionBuilder::OrientationOptionType	OrientationOption ()
	Returns the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension Created in NX6.0.0.

NXOpen::SelectNXObject *	OriginObject ()
	Returns the origin object from which the ADM Linear dimension is measured from Created in NX6.0.0.

void	SetDimensionOrientationVector (NXOpen::Direction *dimensionOrientationVector)
	Sets the dimension orientation vector for the Linear Dimension Created in NX6.0.0.

void	SetFaceToMove (NXOpen::Face *face)
	The important face that is being moved through the ADM Linear Dimension Feature.

void	SetOrientationOption (NXOpen::Features::LinearDimensionBuilder::OrientationOptionType orientationOption)
	Sets the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::DimensionBuilder
NXOpen::Annotations::OriginBuilder *	DimensionLocation ()
	Returns the dimension location/placement controlled by the annotation origin block Created in NX6.0.0.

NXOpen::GeometricUtilities::FaceChangeOverflowBehavior *	FaceChangeOverflowBehavior ()
	Returns the face change overflow behavior.

NXOpen::Features::FaceRecognitionBuilder *	FacesToMove ()
	Returns the faces being moved as part of the Linear Dimension command Created in NX6.0.0.

NXOpen::Annotations::Dimension *	GetDimension ()
	The drafting dimension which is used as UI tool for dimension display.

NXOpen::GeometricUtilities::SaveConstraintsBuilder *	SaveConstraints ()
	Returns the SaveConstraints builder which is used by ADM Dimension Features.

NXOpen::Expression *	Value ()
	Returns the value of the dimension Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::LinearDimension Features::LinearDimension@endlink  builder
 <br> To create a new instance of this class, use @link Features::FeatureCollection::CreateLinearDimensionBuilder  Features::FeatureCollection::CreateLinearDimensionBuilder @endlink  <br>

Default values.

Property

Value

OrientationOption

OrientXpress

Value.Value

0 (millimeters part), 0 (inches part)

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::LinearDimensionBuilder::OrientationOptionType

the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension

Enumerator:

OrientationOptionTypeOrientXpress	Orientation option using Orient Xpress.
OrientationOptionTypeVector	Orientation option using vector.

Member Function Documentation

NXOpen::GeometricUtilities::OrientXpressBuilder* NXOpen::Features::LinearDimensionBuilder::DimensionOrientation ( )

Returns the OrientXpress that is employed in the ADM Linear Dimension Feature
Created in NX6.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::LinearDimensionBuilder::DimensionOrientationVector ( )

Returns the dimension orientation vector for the Linear Dimension
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::LinearDimensionBuilder::MeasurementObject ( )

Returns the measurement object to which the ADM Linear Dimension is measured to
Created in NX6.0.0.

License requirements : None

NXOpen::Features::LinearDimensionBuilder::OrientationOptionType NXOpen::Features::LinearDimensionBuilder::OrientationOption ( )

Returns the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::LinearDimensionBuilder::OriginObject ( )

Returns the origin object from which the ADM Linear dimension is measured from
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::LinearDimensionBuilder::SetDimensionOrientationVector ( NXOpen::Direction * dimensionOrientationVector )

Sets the dimension orientation vector for the Linear Dimension
Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR cam_base ("CAM BASE")

Parameters

dimensionOrientationVector dimensionorientationvector

void NXOpen::Features::LinearDimensionBuilder::SetFaceToMove ( NXOpen::Face * face )

The important face that is being moved through the ADM Linear Dimension Feature.

  The system will try to silently infer one. But if the user wants to provide one, then
  he/she needs to pass in the face through this command

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR cam_base ("CAM BASE")

Parameters

face face

void NXOpen::Features::LinearDimensionBuilder::SetOrientationOption ( NXOpen::Features::LinearDimensionBuilder::OrientationOptionType orientationOption )

Sets the option that controls whether the OrientXpress or whether the vector block Controls the orientation of the Linear Dimension
Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR cam_base ("CAM BASE")

Parameters

orientationOption orientationoption

The documentation for this class was generated from the following file:

Features_LinearDimensionBuilder.hxx
