Represents a datum axis feature builder. More...

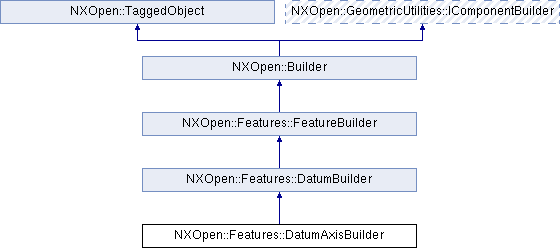

Inheritance diagram for NXOpen::Features::DatumAxisBuilder:

Public Types
enum	AlternateSolution { AlternateSolutionUndefined, AlternateSolutionTangent, AlternateSolutionNormal, AlternateSolutionBinormal, AlternateSolutionOppositeTangent, AlternateSolutionOppositeNormal, AlternateSolutionOppositeBinormal, AlternateSolutionProject }
	Specifies the alternate solution for datum axis using point on curve method only. More...

enum	ConstraintType { ConstraintTypeUndefined, ConstraintTypeCoincident, ConstraintTypeParallel, ConstraintTypePerpendicular, ConstraintTypeCenter, ConstraintTypeTangent, ConstraintTypeDistance, ConstraintTypeAngle, ConstraintTypeFrenet }
	Specifies different constraint types for selected geometries. More...

enum	CurveOption { CurveOptionDistance, CurveOptionPercent }
	Specifies the distance on the curve as absolute distance or relative distance as percentage. More...

enum	CurveOrientations { CurveOrientationsTangent, CurveOrientationsNormal, CurveOrientationsBinormal, CurveOrientationsPerpendicularToObject, CurveOrientationsParallelToObject }
	Available orientations that the user can choose when the Datum Axis type is On Curve Vector. More...

enum	DirectionOrientations { DirectionOrientationsParallelToVector, DirectionOrientationsPerpendicularToVector }
	Two available direction orientations that the user can choose when the Datum Axis type is Point and Direction. More...

enum	FixedType { FixedTypeAll, FixedTypeX, FixedTypeY, FixedTypeZ }
	Specifies the fixed type datum axis going thru only one specific axis or thru all axes. More...

enum	Types { TypesInferred, TypesIntersection, TypesCurveOrFaceAxis, TypesOnCurveVector, TypesXcAxis, TypesYcAxis, TypesZcAxis, TypesPointAndDir, TypesTwoPoints, TypesFixed }
	New Datum Axis types in NX5. More...

enum	UseArcLength { UseArcLengthNoPoint, UseArcLengthFirstPoint, UseArcLengthSecondPoint, UseArcLengthAllPoints }
	Specifies points for which arclength is to be used. More...

Public Member Functions
NXOpen::Features::DatumAxisBuilder::AlternateSolution	AlternateSolutionType ()
	Returns the alternate solution type.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	ArcLength ()
	Returns the arc length.

NXOpen::SelectICurve *	Curve ()
	Returns the curve or edge.

NXOpen::SelectNXObject *	CurveOrFace ()
	Returns the curve or face .

NXOpen::Features::DatumAxisBuilder::CurveOrientations	CurveOrientation ()
	Returns the orientation of vector on a curve.

NXOpen::Features::DatumAxisBuilder::DirectionOrientations	DirectionOrientation ()
	Returns the direction orientation.

void	EvaluatePath (NXOpen::Section *section)
	Evaluate the path.

bool	IsAssociative ()
	Returns the associativity.

bool	IsAxisReversed ()
	Returns the datum axis direction.

NXOpen::SelectNXObject *	Object1 ()
	Returns the first object (i.e.

NXOpen::SelectNXObject *	Object2 ()
	Returns the second object (i.e.

NXOpen::SelectNXObjectList *	Objects ()
	Returns the objects to define Datum Axis.

NXOpen::SelectNXObject *	OrientationObject ()
	Returns the orientation object.

NXOpen::Point *	Point ()
	Returns the point.

NXOpen::Point *	Point1 ()
	Returns the first point.

NXOpen::Point *	Point2 ()
	Returns the second point.

double	ResizedEndDistance ()
	Returns the resized distance for the end point.

bool	ReverseDirection ()
	Returns Created in NX4.0.0.

NXOpen::Section *	Section ()
	Returns the section.

void	SetAlternateSolutionType (NXOpen::Features::DatumAxisBuilder::AlternateSolution alternateSolutionType)
	Sets the alternate solution type.

void	SetAssociative (bool isAssociative)
	Sets the associativity.

void	SetAxisReversed (bool isAxisReversed)
	Sets the datum axis direction.

void	SetCurveOrientation (NXOpen::Features::DatumAxisBuilder::CurveOrientations curveOrientation)
	Sets the orientation of vector on a curve.

void	SetDirectionOrientation (NXOpen::Features::DatumAxisBuilder::DirectionOrientations directionOrientation)
	Sets the direction orientation.

void	SetFixedDatumAxis (NXOpen::Features::DatumAxisBuilder::FixedType type)
	Sets type of fixed datum axis Created in NX3.0.0.

void	SetGeometryAndConstraints (NXOpen::DisplayableObject geometry1, NXOpen::Features::DatumAxisBuilder::ConstraintType geometryConstraintType1, int constraintAttribute1, double constraintValue1, const NXString &constraint1, NXOpen::DisplayableObject geometry2, NXOpen::Features::DatumAxisBuilder::ConstraintType geometryConstraintType2, int constraintAttribute2, double constraintValue2, const NXString &constraint2, NXOpen::Sense direction)
	Sets two different geometric objects.

void	SetGeometryAndConstraints (NXOpen::DisplayableObject geometry1, NXOpen::Features::DatumAxisBuilder::ConstraintType geometryConstraintType1, int constraintAttribute1, double constraintValue1, const char constraint1, NXOpen::DisplayableObject geometry2, NXOpen::Features::DatumAxisBuilder::ConstraintType geometryConstraintType2, int constraintAttribute2, double constraintValue2, const char constraint2, NXOpen::Sense direction)
	Sets two different geometric objects.

void	SetPoint (NXOpen::Point *point)
	Sets the point.

void	SetPoint1 (NXOpen::Point *point1)
	Sets the first point.

void	SetPoint2 (NXOpen::Point *point2)
	Sets the second point.

void	SetPointAndDirection (NXOpen::Point point, NXOpen::Direction direction)
	Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const NXString &constraint, NXOpen::Features::DatumAxisBuilder::AlternateSolution alternateSolution, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::ICurve *curve)
	Sets curve or edge and arc length Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const char constraint, NXOpen::Features::DatumAxisBuilder::AlternateSolution alternateSolution, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::ICurve curve)
	Sets curve or edge and arc length Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const NXString &constraint, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::ICurve curve, NXOpen::DisplayableObject secondGeometry)
	Sets Curve or Edge object and arc length with an extra geometry in picture Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const char constraint, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::ICurve curve, NXOpen::DisplayableObject *secondGeometry)
	Sets Curve or Edge object and arc length with an extra geometry in picture Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const NXString &constraint, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::DisplayableObject secondGeometry, NXOpen::ICurve curve)
	Sets Curve or Edge object and arc length with an extra geometry in picture Created in NX3.0.0.

void	SetPointOnCurve (double arcLength, const char constraint, NXOpen::Features::DatumAxisBuilder::CurveOption option, NXOpen::DisplayableObject secondGeometry, NXOpen::ICurve *curve)
	Sets Curve or Edge object and arc length with an extra geometry in picture Created in NX3.0.0.

void	SetResizedEndDistance (double resizedEndDistance)
	Sets the resized distance for the end point.

void	SetReverseDirection (bool reverseDirection)
	Sets Created in NX4.0.0.

void	SetTwoPoints (NXOpen::Point point1, NXOpen::Point point2, NXOpen::Features::DatumAxisBuilder::UseArcLength useArcLength)
	Sets two points Created in NX3.0.0.

void	SetType (NXOpen::Features::DatumAxisBuilder::Types type)
	Sets the Datum Axis type Created in NX5.0.0.

void	SetVector (NXOpen::Direction *vector)
	Sets the vector.

NXOpen::Features::DatumAxisBuilder::Types	Type ()
	Returns the Datum Axis type Created in NX5.0.0.

NXOpen::Direction *	Vector ()
	Returns the vector.

Public Member Functions inherited from NXOpen::Features::DatumBuilder
NXOpen::DatumConstraint *	CreateConstraint ()
	Creates a new empty constraint object.

std::vector < NXOpen::DatumConstraint * >	GetConstraints ()
	Gets the contraint objects that define the positioning of this datum.

void	SetConstraints (const std::vector< NXOpen::DatumConstraint * > &constraints)
	Sets the contraint objects that define the positioning of this datum.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a datum axis feature builder.

Provides methods to create datum axis thru two points, point and direction and point on curve. Also provides generic method for creation of datum axis feature
To create a new instance of this class, use Features::FeatureCollection::CreateDatumAxisBuilder

Created in NX3.0.0.

Member Enumeration Documentation

enum NXOpen::Features::DatumAxisBuilder::AlternateSolution

Specifies the alternate solution for datum axis using point on curve method only.

Enumerator:

AlternateSolutionUndefined	Not defined.
AlternateSolutionTangent	Indicates the datum axis at tangent to curve.
AlternateSolutionNormal	Datum axis at normal to curve.
AlternateSolutionBinormal	Datum axis at binormal to curve.
AlternateSolutionOppositeTangent	Datum axis at opposite to tangent to curve.
AlternateSolutionOppositeNormal	Datum axis at opposite to normal to curve.
AlternateSolutionOppositeBinormal	Datum axis at opposite to binormal to curve.
AlternateSolutionProject	This direction is calculated by projecting a point selected along a curve to a line, a datum axis, an edge of a solid, a planar face or a datum plane.

enum NXOpen::Features::DatumAxisBuilder::ConstraintType

Specifies different constraint types for selected geometries.

Enumerator:

ConstraintTypeUndefined	Not defined.
ConstraintTypeCoincident	Coincident constraint.
ConstraintTypeParallel	Parallel constraint.
ConstraintTypePerpendicular	Perpendicular constraint.
ConstraintTypeCenter	Center constraint.
ConstraintTypeTangent	Tangent constraint.
ConstraintTypeDistance	Distance constraint.
ConstraintTypeAngle	Angle constraint.
ConstraintTypeFrenet	Frenet constraint.

enum NXOpen::Features::DatumAxisBuilder::CurveOption

Specifies the distance on the curve as absolute distance or relative distance as percentage.

Enumerator:

CurveOptionDistance	Absolute distance.
CurveOptionPercent	Relative distance as percentage.

enum NXOpen::Features::DatumAxisBuilder::CurveOrientations

Available orientations that the user can choose when the Datum Axis type is On Curve Vector.

Enumerator:

CurveOrientationsTangent	Orientation at tangent to curve.
CurveOrientationsNormal	Orientation at normal to curve.
CurveOrientationsBinormal	Orientation at binormal to curve.
CurveOrientationsPerpendicularToObject	Orientation at perpendicular to object.
CurveOrientationsParallelToObject	Orientation at parallel to object.

enum NXOpen::Features::DatumAxisBuilder::DirectionOrientations

Two available direction orientations that the user can choose when the Datum Axis type is Point and Direction.

Enumerator:

DirectionOrientationsParallelToVector	Orientation parallel to Direction.
DirectionOrientationsPerpendicularToVector	Orientation perpendicular to Direction.

enum NXOpen::Features::DatumAxisBuilder::FixedType

Specifies the fixed type datum axis going thru only one specific axis or thru all axes.

Enumerator:

FixedTypeAll	Fixed datum axis thru all Axis.
FixedTypeX	Fixed datum axis thru X Axis.
FixedTypeY	Fixed datum axis thru Y Axis.
FixedTypeZ	Fixed datum axis thru Z Axis.

enum NXOpen::Features::DatumAxisBuilder::Types

New Datum Axis types in NX5.

Enumerator:

TypesInferred	Inferred.
TypesIntersection	Datum axis at the intersection of objects.
TypesCurveOrFaceAxis	Datum axis at the curve or face axis.
TypesOnCurveVector	Datum axis at vector on curve.
TypesXcAxis	Datum axis thru X axis.
TypesYcAxis	Datum axis thru Y axis.
TypesZcAxis	Datum axis thru Z axis.
TypesPointAndDir	Datum axis thru a point and parallel or perpendicular to direction.
TypesTwoPoints	Datum axis thru two point.
TypesFixed	Indicate the datum axis is fixed.

enum NXOpen::Features::DatumAxisBuilder::UseArcLength

Specifies points for which arclength is to be used.

Percentage of arclength is used for points for which arclength option is not selected. Specified for creation of datum axis using thru two points method.

Enumerator:

UseArcLengthNoPoint	All points use percentage of arclength.
UseArcLengthFirstPoint	Only first point uses arclength.
UseArcLengthSecondPoint	Only second point uses arclength.
UseArcLengthAllPoints	Both points use arclength.

Member Function Documentation

NXOpen::Features::DatumAxisBuilder::AlternateSolution NXOpen::Features::DatumAxisBuilder::AlternateSolutionType ( )

Returns the alternate solution type.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::Features::DatumAxisBuilder::ArcLength ( )

Returns the arc length.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : None

NXOpen::SelectICurve* NXOpen::Features::DatumAxisBuilder::Curve ( )

Returns the curve or edge.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::DatumAxisBuilder::CurveOrFace ( )

Returns the curve or face .

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesCurveOrFaceAxis

Created in NX5.0.0.

License requirements : None

NXOpen::Features::DatumAxisBuilder::CurveOrientations NXOpen::Features::DatumAxisBuilder::CurveOrientation ( )

Returns the orientation of vector on a curve.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : None

NXOpen::Features::DatumAxisBuilder::DirectionOrientations NXOpen::Features::DatumAxisBuilder::DirectionOrientation ( )

Returns the direction orientation.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : None

void NXOpen::Features::DatumAxisBuilder::EvaluatePath ( NXOpen::Section * section )

Evaluate the path.

If there is no path, create it, otherwise evaluate it. This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX8.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

section section

bool NXOpen::Features::DatumAxisBuilder::IsAssociative ( )

Returns the associativity.

If true, the Datum Axis is associative
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::DatumAxisBuilder::IsAxisReversed ( )

Returns the datum axis direction.

If true, the Datum Axis direction is reversed
Created in NX5.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::DatumAxisBuilder::Object1 ( )

Returns the first object (i.e.

a planar face or datum plane). This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesIntersection

Created in NX5.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::DatumAxisBuilder::Object2 ( )

Returns the second object (i.e.

a planar face or datum plane). This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesIntersection

Created in NX5.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::DatumAxisBuilder::Objects ( )

Returns the objects to define Datum Axis.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesInferred

Created in NX5.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::DatumAxisBuilder::OrientationObject ( )

Returns the orientation object.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::DatumAxisBuilder::Point ( )

Returns the point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::DatumAxisBuilder::Point1 ( )

Returns the first point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesTwoPoints

Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::DatumAxisBuilder::Point2 ( )

Returns the second point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesTwoPoints

Created in NX5.0.0.

License requirements : None

double NXOpen::Features::DatumAxisBuilder::ResizedEndDistance ( )

Returns the resized distance for the end point.

If the value is 0.0, then this datum axis is not resized at end point
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::DatumAxisBuilder::ReverseDirection ( )

Returns
Created in NX4.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::Section* NXOpen::Features::DatumAxisBuilder::Section ( )

Returns the section.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::DatumAxisBuilder::SetAlternateSolutionType ( NXOpen::Features::DatumAxisBuilder::AlternateSolution alternateSolutionType )

Sets the alternate solution type.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

alternateSolutionType alternate solution type

void NXOpen::Features::DatumAxisBuilder::SetAssociative ( bool isAssociative )

Sets the associativity.

If true, the Datum Axis is associative
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

isAssociative isassociative

void NXOpen::Features::DatumAxisBuilder::SetAxisReversed ( bool isAxisReversed )

Sets the datum axis direction.

If true, the Datum Axis direction is reversed
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

isAxisReversed isaxisreversed

void NXOpen::Features::DatumAxisBuilder::SetCurveOrientation ( NXOpen::Features::DatumAxisBuilder::CurveOrientations curveOrientation )

Sets the orientation of vector on a curve.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesOnCurveVector

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

curveOrientation curveorientation

void NXOpen::Features::DatumAxisBuilder::SetDirectionOrientation ( NXOpen::Features::DatumAxisBuilder::DirectionOrientations directionOrientation )

Sets the direction orientation.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

directionOrientation directionorientation

void NXOpen::Features::DatumAxisBuilder::SetFixedDatumAxis ( NXOpen::Features::DatumAxisBuilder::FixedType type )

Sets type of fixed datum axis
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type	Indicates fixed datum axis type

void NXOpen::Features::DatumAxisBuilder::SetGeometryAndConstraints	(	NXOpen::DisplayableObject *	geometry1,
		NXOpen::Features::DatumAxisBuilder::ConstraintType	geometryConstraintType1,
		int	constraintAttribute1,
		double	constraintValue1,
		const NXString &	constraint1,
		NXOpen::DisplayableObject *	geometry2,
		NXOpen::Features::DatumAxisBuilder::ConstraintType	geometryConstraintType2,
		int	constraintAttribute2,
		double	constraintValue2,
		const NXString &	constraint2,
		NXOpen::Sense	direction
	)

Sets two different geometric objects.

Possible combinations are:

If first constrain is Through Point, then the second contraint can be:
- Solid Body Vertex (endpoint)
- Edge Midpoint
If first constrain is Intersection of Plane, then the second contraint can be:
- Through the straight edge formed by the intersection of two planes
If first constrain is Through Curve, then the second contraint can be:
- Used with Through Point constraint and along a curve
If first constrain is Perpendicular to object, then the second contraint can be:
- Through Curve and Through Point perpendicular to lines, linear edge, datum planes, datum axis, or planar faces

Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

geometry1	First geometric object
geometryConstraintType1	Constraint type of first geometry
constraintAttribute1	Constraint attribute value of first geometry VRH alternate_solution_only - only for point on curve
constraintValue1	Constraint value parameter of first geometry
constraint1	Constraint attached with first geometric object. Set to "0.0" in case value is not specified NOTE: The full Unicode character set is not supported for this parameter.
geometry2	Second geometric object
geometryConstraintType2	Constraint type of second geometry
constraintAttribute2	Constraint attribute value of second geometry
constraintValue2	Constraint value parameter of second geometry
constraint2	Constraint attached with second geometric object. Set to "0.0" in case value is not specified NOTE: The full Unicode character set is not supported for this parameter.
direction	Flag to specify datum axis direction

void NXOpen::Features::DatumAxisBuilder::SetGeometryAndConstraints	(	NXOpen::DisplayableObject *	geometry1,
		NXOpen::Features::DatumAxisBuilder::ConstraintType	geometryConstraintType1,
		int	constraintAttribute1,
		double	constraintValue1,
		const char *	constraint1,
		NXOpen::DisplayableObject *	geometry2,
		NXOpen::Features::DatumAxisBuilder::ConstraintType	geometryConstraintType2,
		int	constraintAttribute2,
		double	constraintValue2,
		const char *	constraint2,
		NXOpen::Sense	direction
	)

Sets two different geometric objects.

Possible combinations are:

If first constrain is Through Point, then the second contraint can be:
- Solid Body Vertex (endpoint)
- Edge Midpoint
If first constrain is Intersection of Plane, then the second contraint can be:
- Through the straight edge formed by the intersection of two planes
If first constrain is Through Curve, then the second contraint can be:
- Used with Through Point constraint and along a curve
If first constrain is Perpendicular to object, then the second contraint can be:
- Through Curve and Through Point perpendicular to lines, linear edge, datum planes, datum axis, or planar faces

Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

geometry1	First geometric object
geometryConstraintType1	Constraint type of first geometry
constraintAttribute1	Constraint attribute value of first geometry VRH alternate_solution_only - only for point on curve
constraintValue1	Constraint value parameter of first geometry
constraint1	Constraint attached with first geometric object. Set to "0.0" in case value is not specified NOTE: The full Unicode character set is not supported for this parameter.
geometry2	Second geometric object
geometryConstraintType2	Constraint type of second geometry
constraintAttribute2	Constraint attribute value of second geometry
constraintValue2	Constraint value parameter of second geometry
constraint2	Constraint attached with second geometric object. Set to "0.0" in case value is not specified NOTE: The full Unicode character set is not supported for this parameter.
direction	Flag to specify datum axis direction

void NXOpen::Features::DatumAxisBuilder::SetPoint ( NXOpen::Point * point )

Sets the point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

point point

void NXOpen::Features::DatumAxisBuilder::SetPoint1 ( NXOpen::Point * point1 )

Sets the first point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesTwoPoints

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

point1 point1

void NXOpen::Features::DatumAxisBuilder::SetPoint2 ( NXOpen::Point * point2 )

Sets the second point.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesTwoPoints

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

point2 point2

void NXOpen::Features::DatumAxisBuilder::SetPointAndDirection	(	NXOpen::Point *	point,
		NXOpen::Direction *	direction
	)

Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

point	point
direction	direction

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const NXString &	constraint,
		NXOpen::Features::DatumAxisBuilder::AlternateSolution	alternateSolution,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::ICurve *	curve
	)

Sets curve or edge and arc length
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
alternateSolution	Alternate solution
option	Absolute distance or relative distance
curve	Curve or Edge object

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const char *	constraint,
		NXOpen::Features::DatumAxisBuilder::AlternateSolution	alternateSolution,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::ICurve *	curve
	)

Sets curve or edge and arc length
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
alternateSolution	Alternate solution
option	Absolute distance or relative distance
curve	Curve or Edge object

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const NXString &	constraint,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::ICurve *	curve,
		NXOpen::DisplayableObject *	secondGeometry
	)

Sets Curve or Edge object and arc length with an extra geometry in picture
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
option	Absolute distance or relative distance
curve	Curve or Edge object
secondGeometry	Second geometric object

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const char *	constraint,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::ICurve *	curve,
		NXOpen::DisplayableObject *	secondGeometry
	)

Sets Curve or Edge object and arc length with an extra geometry in picture
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
option	Absolute distance or relative distance
curve	Curve or Edge object
secondGeometry	Second geometric object

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const NXString &	constraint,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::DisplayableObject *	secondGeometry,
		NXOpen::ICurve *	curve
	)

Sets Curve or Edge object and arc length with an extra geometry in picture
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
option	Absolute distance or relative distance
secondGeometry	Second Geometric object
curve	Curve or Edge object

void NXOpen::Features::DatumAxisBuilder::SetPointOnCurve	(	double	arcLength,
		const char *	constraint,
		NXOpen::Features::DatumAxisBuilder::CurveOption	option,
		NXOpen::DisplayableObject *	secondGeometry,
		NXOpen::ICurve *	curve
	)

Sets Curve or Edge object and arc length with an extra geometry in picture
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

arcLength	Arc length
constraint	Constraint expression. Usually same as arc_length NOTE: The full Unicode character set is not supported for this parameter.
option	Absolute distance or relative distance
secondGeometry	Second Geometric object
curve	Curve or Edge object

void NXOpen::Features::DatumAxisBuilder::SetResizedEndDistance ( double resizedEndDistance )

Sets the resized distance for the end point.

If the value is 0.0, then this datum axis is not resized at end point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

resizedEndDistance resizedenddistance

void NXOpen::Features::DatumAxisBuilder::SetReverseDirection ( bool reverseDirection )

Sets
Created in NX4.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

reverseDirection reverse direction

void NXOpen::Features::DatumAxisBuilder::SetTwoPoints	(	NXOpen::Point *	point1,
		NXOpen::Point *	point2,
		NXOpen::Features::DatumAxisBuilder::UseArcLength	useArcLength
	)

Sets two points
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

point1	point1
point2	point2
useArcLength	Specify points which use arclength instead of percentage of arclength

void NXOpen::Features::DatumAxisBuilder::SetType ( NXOpen::Features::DatumAxisBuilder::Types type )

Sets the Datum Axis type
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type type

void NXOpen::Features::DatumAxisBuilder::SetVector ( NXOpen::Direction * vector )

Sets the vector.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

vector vector

NXOpen::Features::DatumAxisBuilder::Types NXOpen::Features::DatumAxisBuilder::Type ( )

Returns the Datum Axis type
Created in NX5.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::DatumAxisBuilder::Vector ( )

Returns the vector.

This is used only if the Datum Axis type is Features::DatumAxisBuilder::TypesPointAndDir

Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_DatumAxisBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
