Represents a Die::CompensateRoughDataBuilder . More...

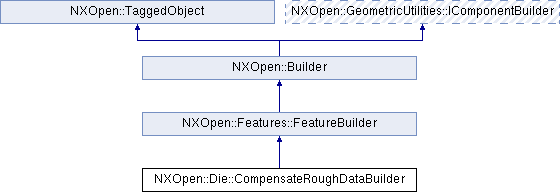

Inheritance diagram for NXOpen::Die::CompensateRoughDataBuilder:

Public Types
enum	ApproximationType { ApproximationTypeCoarse, ApproximationTypeRough, ApproximationTypeFine, ApproximationTypeExact }
	Settings for the amount of approximation to perform. More...

enum	Types { TypesSheetBody, TypesCurve }
	Settings for the type of data being compensated. More...

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance.

NXOpen::Die::CompensateRoughDataBuilder::ApproximationType	Approximation ()
	Returns the approximation desired.

NXOpen::Section *	CurveCollector ()
	Returns the curve collector containing the curves that will be approximated.

double	DistanceTolerance ()
	Returns the distance tolerance.

bool	JoinOutputCurves ()
	Returns the join output curves setting, true indicates that the output curves will be joined into a single curve.

double	MaximumGap ()
	Returns the maximum gap.

bool	ModifyInputSheet ()
	Returns the modify input sheet setting.

NXOpen::ScCollector *	ProjectToFaces ()
	Returns the faces to project the output curves onto.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance.

void	SetApproximation (NXOpen::Die::CompensateRoughDataBuilder::ApproximationType approximation)
	Sets the approximation desired.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance.

void	SetJoinOutputCurves (bool joinOutputCurves)
	Sets the join output curves setting, true indicates that the output curves will be joined into a single curve.

void	SetMaximumGap (double maximumGap)
	Sets the maximum gap.

void	SetModifyInputSheet (bool modifyInputSheet)
	Sets the modify input sheet setting.

void	SetType (NXOpen::Die::CompensateRoughDataBuilder::Types type)
	Sets the type of input data being supplied.

NXOpen::SelectBodyList *	SheetBodies ()
	Returns the sheet bodies that will be approximated.

NXOpen::Die::CompensateRoughDataBuilder::Types	Type ()
	Returns the type of input data being supplied.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Die::CompensateRoughDataBuilder .

This class is used to edit and create a Compensate Rough Curve or Compensate Rough Sheet feature.
To create a new instance of this class, use Die::DieCollection::CompensateRoughData
Default values.

Property

Value

AngleTolerance

0.5

Approximation

Coarse

DistanceTolerance

0.0254 (millimeters part), 0.001 (inches part)

JoinOutputCurves

0

MaximumGap

5.0 (millimeters part), 0.2 (inches part)

ModifyInputSheet

0

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Die::CompensateRoughDataBuilder::ApproximationType

Settings for the amount of approximation to perform.

Enumerator:

ApproximationTypeCoarse	Perform a coarse approximation.
ApproximationTypeRough	Perform a rough approximation.
ApproximationTypeFine	Perform a fine approximation.
ApproximationTypeExact	Perform no approximation.

enum NXOpen::Die::CompensateRoughDataBuilder::Types

Settings for the type of data being compensated.

Enumerator:

TypesSheetBody	Sheet bodies being compensated.
TypesCurve	Curves being compensated.

Member Function Documentation

double NXOpen::Die::CompensateRoughDataBuilder::AngleTolerance ( )

Returns the angle tolerance.

Created in NX6.0.0.

License requirements : None

NXOpen::Die::CompensateRoughDataBuilder::ApproximationType NXOpen::Die::CompensateRoughDataBuilder::Approximation ( )

Returns the approximation desired.

Created in NX6.0.0.

License requirements : None

NXOpen::Section* NXOpen::Die::CompensateRoughDataBuilder::CurveCollector ( )

Returns the curve collector containing the curves that will be approximated.

Created in NX6.0.0.

License requirements : None

double NXOpen::Die::CompensateRoughDataBuilder::DistanceTolerance ( )

Returns the distance tolerance.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Die::CompensateRoughDataBuilder::JoinOutputCurves ( )

Returns the join output curves setting, true indicates that the output curves will be joined into a single curve.

Created in NX6.0.0.

License requirements : None

double NXOpen::Die::CompensateRoughDataBuilder::MaximumGap ( )

Returns the maximum gap.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Die::CompensateRoughDataBuilder::ModifyInputSheet ( )

Returns the modify input sheet setting.

If true the input sheet will be modified, otherwise a new sheet will be created.
Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Die::CompensateRoughDataBuilder::ProjectToFaces ( )

Returns the faces to project the output curves onto.

If faces are selected then the output curves will be projected normal to these faces.
Created in NX6.0.0.

License requirements : None

void NXOpen::Die::CompensateRoughDataBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

angleTolerance angletolerance

void NXOpen::Die::CompensateRoughDataBuilder::SetApproximation ( NXOpen::Die::CompensateRoughDataBuilder::ApproximationType approximation )

Sets the approximation desired.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

approximation approximation

void NXOpen::Die::CompensateRoughDataBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

distanceTolerance distancetolerance

void NXOpen::Die::CompensateRoughDataBuilder::SetJoinOutputCurves ( bool joinOutputCurves )

Sets the join output curves setting, true indicates that the output curves will be joined into a single curve.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

joinOutputCurves joinoutputcurves

void NXOpen::Die::CompensateRoughDataBuilder::SetMaximumGap ( double maximumGap )

Sets the maximum gap.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

maximumGap maximumgap

void NXOpen::Die::CompensateRoughDataBuilder::SetModifyInputSheet ( bool modifyInputSheet )

Sets the modify input sheet setting.

If true the input sheet will be modified, otherwise a new sheet will be created.
Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

modifyInputSheet modifyinputsheet

void NXOpen::Die::CompensateRoughDataBuilder::SetType ( NXOpen::Die::CompensateRoughDataBuilder::Types type )

Sets the type of input data being supplied.

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type type

NXOpen::SelectBodyList* NXOpen::Die::CompensateRoughDataBuilder::SheetBodies ( )

Returns the sheet bodies that will be approximated.

Created in NX6.0.0.

License requirements : None

NXOpen::Die::CompensateRoughDataBuilder::Types NXOpen::Die::CompensateRoughDataBuilder::Type ( )

Returns the type of input data being supplied.

Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Die_CompensateRoughDataBuilder.hxx
