NXOpen::CAE::ResultMeasureResultDirectionSectionOptions Class Reference

Represents the result directional and beam/shell section options for result measure
To obtain an instance of this class use CAE::ResultMeasureCollection . More...

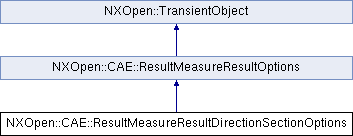

Inheritance diagram for NXOpen::CAE::ResultMeasureResultDirectionSectionOptions:

Public Member Functions
void	SetBeamSection (NXOpen::CAE::Result::Section eBeamSect)
	Set the beam section for beam stress/strain results Created in NX8.5.0.
void	SetCoordinateSystem (NXOpen::CAE::Result::CoordinateSystem eCsys)
	Set the coordinate system for directional components Created in NX8.5.0.
void	SetShellSection (NXOpen::CAE::Result::Section eShellSect)
	Set the shell section for shell stress/strain results Created in NX8.5.0.
virtual	~ResultMeasureResultDirectionSectionOptions ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::CAE::ResultMeasureResultOptions
void	SetAbsoluteValue (bool bAbsValue)
	Set the option to use absolute values Created in NX8.5.0.
void	SetOperation (NXOpen::CAE::ResultMeasure::Operation eOperation)
	Set the operation type Created in NX8.5.0.
void	SetUnit (NXOpen::Unit *tUnit)
	Set the unit Created in NX8.5.0.
virtual	~ResultMeasureResultOptions ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents the result directional and beam/shell section options for result measure
To obtain an instance of this class use CAE::ResultMeasureCollection .

Created in NX8.5.0.

Constructor & Destructor Documentation

virtual NXOpen::CAE::ResultMeasureResultDirectionSectionOptions::~ResultMeasureResultDirectionSectionOptions ( )

virtual

Frees the object from memory.

After this method is called, it is illegal to use the object. In .NET, this method is automatically called when the object is deleted by the garbage collector.
Created in NX8.5.0.

License requirements : None

Member Function Documentation

void NXOpen::CAE::ResultMeasureResultDirectionSectionOptions::SetBeamSection

(

NXOpen::CAE::Result::Section

eBeamSect

)

Set the beam section for beam stress/strain results
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

eBeamSect

ebeamsect

void NXOpen::CAE::ResultMeasureResultDirectionSectionOptions::SetCoordinateSystem

(

NXOpen::CAE::Result::CoordinateSystem

eCsys

)

Set the coordinate system for directional components
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

eCsys

ecsys

void NXOpen::CAE::ResultMeasureResultDirectionSectionOptions::SetShellSection

(

NXOpen::CAE::Result::Section

eShellSect

)

Set the shell section for shell stress/strain results
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

eShellSect

eshellsect

---

The documentation for this class was generated from the following file:

• CAE_ResultMeasureResultDirectionSectionOptions.hxx
