NXOpen::CAE::ResultMeasureResultOptions Class Reference

Represents the basic result options for result measure
To obtain an instance of this class use CAE::ResultMeasureCollection . More...

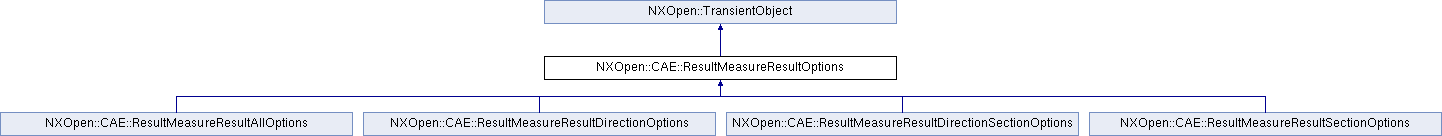

Inheritance diagram for NXOpen::CAE::ResultMeasureResultOptions:

Public Member Functions
void	SetAbsoluteValue (bool bAbsValue)
	Set the option to use absolute values Created in NX8.5.0.
void	SetOperation (NXOpen::CAE::ResultMeasure::Operation eOperation)
	Set the operation type Created in NX8.5.0.
void	SetUnit (NXOpen::Unit *tUnit)
	Set the unit Created in NX8.5.0.
virtual	~ResultMeasureResultOptions ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents the basic result options for result measure
To obtain an instance of this class use CAE::ResultMeasureCollection .

Created in NX8.5.0.

Constructor & Destructor Documentation

virtual NXOpen::CAE::ResultMeasureResultOptions::~ResultMeasureResultOptions ( )

virtual

Frees the object from memory.

After this method is called, it is illegal to use the object. In .NET, this method is automatically called when the object is deleted by the garbage collector.
Created in NX8.5.0.

License requirements : None

Member Function Documentation

void NXOpen::CAE::ResultMeasureResultOptions::SetAbsoluteValue

(

bool

bAbsValue

)

Set the option to use absolute values
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bAbsValue

babsvalue

void NXOpen::CAE::ResultMeasureResultOptions::SetOperation

(

NXOpen::CAE::ResultMeasure::Operation

eOperation

)

Set the operation type
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

eOperation

eoperation

void NXOpen::CAE::ResultMeasureResultOptions::SetUnit

(

NXOpen::Unit *

tUnit

)

Set the unit
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

tUnit

tunit

---

The documentation for this class was generated from the following file:

• CAE_ResultMeasureResultOptions.hxx
