Represents a @link CAE::ResponseSimulation::VelocityImpactExcitationBuilder CAE::ResponseSimulation::VelocityImpactExcitationBuilder@endlink <br> To create a new instance of this class, use @link CAE::ResponseSimulation::ExcitationCollection::CreateVelocityImpactExcitationBuilder CAE::ResponseSimulation::ExcitationCollection::CreateVelocityImpactExcitationBuilder @endlink <br>
Default values. More...

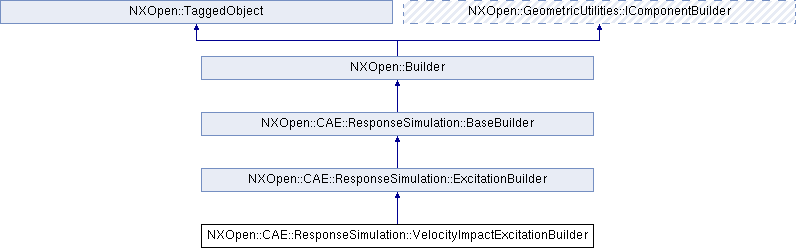

Inheritance diagram for NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder:
Public Types | |
| enum | ImpactMethodType { ImpactMethodTypeConstantVelocity, ImpactMethodTypeDropImpact } |
| the impact definiton methods More... | |
 Public Types inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder | |
| enum | ExcitationLocationType { ExcitationLocationTypeStaticLoad = -2, ExcitationLocationTypeDistributedLoad, ExcitationLocationTypeNodalForce, ExcitationLocationTypeEnforcedMotion } |
| the type of excitation location More... | |
Public Member Functions | |
| NXOpen::CAE::ResponseSimulation::VelocityImpactDirection * | ImpactDirection () |
| Returns the impact direction setting Created in NX6.0.0. | |
| NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactMethodType | ImpactMethod () |
| Returns the impact method Created in NX6.0.0. | |
| NXOpen::CAE::ResponseSimulation::VelocityImpactParameters * | ImpactParameters () |
| Returns the impact parameters setting Created in NX6.0.0. | |
| void | SetImpactMethod (NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactMethodType impactMethod) |
| Sets the impact method Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder | |
| NXOpen::CAE::ResponseSimulation::RSEvent * | DynamicEvent () |
| Returns the parent dynamic event object Created in NX5.0.0. | |
| NXOpen::CAE::ResponseSimulation::ExcitationLocationDefinition * | ExcitationLocationDefinition () |
| Returns the excitation location definition Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder | |
| NXOpen::CAE::ResponseSimulation::ObjectLabel * | ObjectLabel () |
| Returns the object label Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a @link CAE::ResponseSimulation::VelocityImpactExcitationBuilder CAE::ResponseSimulation::VelocityImpactExcitationBuilder@endlink <br> To create a new instance of this class, use @link CAE::ResponseSimulation::ExcitationCollection::CreateVelocityImpactExcitationBuilder CAE::ResponseSimulation::ExcitationCollection::CreateVelocityImpactExcitationBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
ImpactDirection.DirectionOption |
NodalComponent |
|
ImpactDirection.NodalComponent |
Dof1 |
|
ImpactMethod |
ConstantVelocity |
|
ImpactParameters.DropHeight.Value |
1.0 (millimeters part), 1.0 (inches part) |
|
ImpactParameters.PulseDuration.Value |
1.0 (millimeters part), 1.0 (inches part) |
|
ImpactParameters.StartPosition |
AtDrop |
|
ImpactParameters.TimeStep.Value |
1.0 (millimeters part), 1.0 (inches part) |
|
ImpactParameters.Velocity.Value |
1.0 (millimeters part), 1.0 (inches part) |
Created in NX6.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::CAE::ResponseSimulation::VelocityImpactDirection* NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactDirection | ( | ) |
Returns the impact direction setting
Created in NX6.0.0.
License requirements : None
| NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactMethodType NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactMethod | ( | ) |
Returns the impact method
Created in NX6.0.0.
License requirements : None
| NXOpen::CAE::ResponseSimulation::VelocityImpactParameters* NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactParameters | ( | ) |
Returns the impact parameters setting
Created in NX6.0.0.
License requirements : None
| void NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::SetImpactMethod | ( | NXOpen::CAE::ResponseSimulation::VelocityImpactExcitationBuilder::ImpactMethodType | impactMethod | ) |
Sets the impact method
Created in NX6.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
- Parameters
-
impactMethod impactmethod
The documentation for this class was generated from the following file:
- CAE_ResponseSimulation_VelocityImpactExcitationBuilder.hxx
