This is a manager to the CAE::ResponseSimulation::NodalFunctionEvaluationSetting class. More...

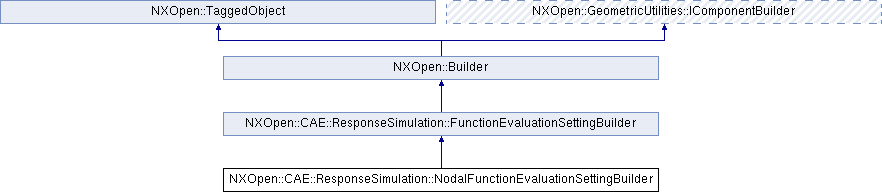

Inheritance diagram for NXOpen::CAE::ResponseSimulation::NodalFunctionEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::NodalFunctionEvalBeamLocation	BeamDataLocation ()
	Returns the evaluation location of beam element, which is available when CAE::ResponseSimulation::EvaluationResultType and CAE::ResponseSimulation::SetEvaluationResultType is CAE::ResponseSimulation::EvaluationResultTypeStress , or CAE::ResponseSimulation::EvaluationResultTypeStrain Created in NX9.0.0.

NXOpen::CAE::ResponseSimulation::CoordinateSystem	CoordinateSystem ()
	Returns the coordinate system Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::DirectionDataComponent	DataComponent ()
	Returns the direction data component Created in NX5.0.0.

std::vector < NXOpen::CAE::FENode * >	GetDestinationNodes ()
	Returns the destination nodes.

NXOpen::CAE::FENode *	RelativeNode ()
	Returns the relative node Created in NX5.0.0.

void	SetBeamDataLocation (NXOpen::CAE::ResponseSimulation::NodalFunctionEvalBeamLocation beamLocation)
	Sets the evaluation location of beam element, which is available when CAE::ResponseSimulation::EvaluationResultType and CAE::ResponseSimulation::SetEvaluationResultType is CAE::ResponseSimulation::EvaluationResultTypeStress , or CAE::ResponseSimulation::EvaluationResultTypeStrain Created in NX9.0.0.

void	SetCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem coordinateSystem)
	Sets the coordinate system Created in NX5.0.0.

void	SetDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the direction data component Created in NX5.0.0.

void	SetDestinationNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNodes)
	Sets the destination nodes Created in NX5.0.0.

void	SetRelativeNode (NXOpen::CAE::FENode *relativeNode)
	Sets the relative node Created in NX5.0.0.

void	SetShellDataLocation (NXOpen::CAE::ResponseSimulation::NodalFunctionEvalShellLocation shellLocation)
	Sets the evaluation location of shell element, which is available when CAE::ResponseSimulation::EvaluationResultType and CAE::ResponseSimulation::SetEvaluationResultType is CAE::ResponseSimulation::EvaluationResultTypeStress , or CAE::ResponseSimulation::EvaluationResultTypeStrain Created in NX9.0.0.

void	SetUserDefinedDirection (NXOpen::Direction *userDefinedDirection)
	Sets the user defined direction Created in NX5.0.0.

void	SetUsingUserDefinedDirection (NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest usingUserDefinedDirection)
	Sets the option of using user defined direction Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::NodalFunctionEvalShellLocation	ShellDataLocation ()
	Returns the evaluation location of shell element, which is available when CAE::ResponseSimulation::EvaluationResultType and CAE::ResponseSimulation::SetEvaluationResultType is CAE::ResponseSimulation::EvaluationResultTypeStress , or CAE::ResponseSimulation::EvaluationResultTypeStrain Created in NX9.0.0.

NXOpen::Direction *	UserDefinedDirection ()
	Returns the user defined direction Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest	UsingUserDefinedDirection ()
	Returns the option of using user defined direction Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::FunctionEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::FunctionEvaluationOutputSettings *	OutputSettings ()
	Returns the output setting.

NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.

void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is a manager to the CAE::ResponseSimulation::NodalFunctionEvaluationSetting class.

Object of type CAE::ResponseSimulation::NodalFunctionEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateNodalFunctionEvaluationSettingBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::NodalFunctionEvalBeamLocation NXOpen::CAE::ResponseSimulation::NodalFunctionEvaluationSettingBuilder::BeamDataLocation ( )

Returns the evaluation location of beam element, which is available when CAE::ResponseSimulation::EvaluationResultType and CAE::ResponseSimulation::SetEvaluationResultType is CAE::ResponseSimulation::EvaluationResultTypeStress , or CAE::ResponseSimulation::EvaluationResultTypeStrain
Created in NX9.0.0.
