Represents an DDAM excitation. More...

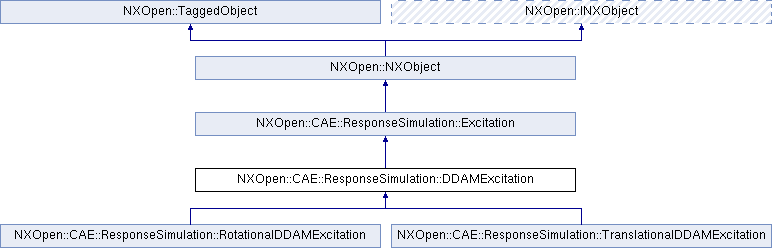

Inheritance diagram for NXOpen::CAE::ResponseSimulation::DDAMExcitation:

Public Types
enum	CoefficientDefinitionType { CoefficientDefinitionTypeByFile, CoefficientDefinitionTypeInputManually }
	the choices of define DDAM coefficients. More...

enum	LoadingType { LoadingTypeVertical, LoadingTypeAthwartship, LoadingTypeForeAndAft }
	Specifies the loading type. More...

enum	MountingType { MountingTypeHull, MountingTypeDuck, MountingTypeShellPlating }
	Specifies the mounting type. More...

enum	ResponseType { ResponseTypeElastic, ResponseTypeElasticPlastic }
	Specifies the response type. More...

enum	ShipType { ShipTypeSurface, ShipTypeSubmarine }
	Specifies the ship type. More...

Public Types inherited from NXOpen::CAE::ResponseSimulation::Excitation
enum	Component { ComponentDistributedLoad = -1, ComponentX, ComponentY, ComponentZ, ComponentRx, ComponentRy, ComponentRz, ComponentUserDefined }
	Represents the component type. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::Excitation
void	Destroy ()
	Deletes a response simulation excitation Created in NX5.0.0.

NXString	ExcitationName ()
	Returns the excitation name Created in NX5.0.0.

void	SetExcitationName (const NXString &excitationName)
	Sets the excitation name Created in NX5.0.0.

void	SetExcitationName (const char *excitationName)
	Sets the excitation name Created in NX5.0.0.

Detailed Description

Represents an DDAM excitation.

DDAM excitation could only be used by DDAM event.
To create or edit an instance of this class, use CAE::ResponseSimulation::DDAMExcitationBuilder

Created in NX5.0.0.

Member Enumeration Documentation

the choices of define DDAM coefficients.

Enumerator:

CoefficientDefinitionTypeByFile	Get the DDAM coefficients from a DDAM coefficient file.
CoefficientDefinitionTypeInputManually	Input the DDAM coefficient manually.

Specifies the loading type.

Enumerator:

Specifies the mounting type.

Enumerator:

Specifies the response type.

Enumerator:

ResponseTypeElastic	elastic
ResponseTypeElasticPlastic	elastic plastic

Specifies the ship type.

Enumerator:

ShipTypeSurface	surface
ShipTypeSubmarine	submarine
