Allows you to query the mesh nodes that are off the underlying Cad geometry by a given tolerance, and if requested this builder can adjust the node locations to put them back on to the underlying Cad geometry. More...

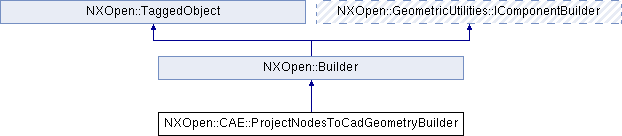

Inheritance diagram for NXOpen::CAE::ProjectNodesToCadGeometryBuilder:

Public Types
enum	ListingOption { ListingOptionNone = -1, ListingOptionSummaryOnly, ListingOptionAll }
	Listing Options. More...

enum	Operation { OperationShow, OperationAdjust }
	Operations. More...

Public Member Functions
NXOpen::NXColor *	AdjustedNodeLocationColor ()
	Returns the display color of proximity node new location which will meet the given tolerance with undelying CAD geometry.

void	AdjustProximityNodes ()
	Adjusts the proximity nodes identified to the new location to meet the given tolerance with underlying CAD geometries.

NXOpen::SelectDisplayableObjectList *	CheckedObjectsList ()
	Returns the selected objects for checking.

std::vector< NXOpen::Point3d >	GetProximityNodes (std::vector< NXOpen::CAE::FENode * > &proximityNodes)
	Returns the cached proximity nodes calculated by CAE::ProjectNodesToCadGeometryBuilder::IdentifyProximityNodes .

void	IdentifyProximityNodes ()
	Identifies the proximity nodes which are off the underlying CAD geometry according to CAE::ProjectNodesToCadGeometryBuilder::ProximityTolerance and CAE::ProjectNodesToCadGeometryBuilder::SetProximityTolerance and CAE::ProjectNodesToCadGeometryBuilder::IncludeMidnodes and CAE::ProjectNodesToCadGeometryBuilder::SetIncludeMidnodes .

bool	IncludeMidnodes ()
	Returns a value indicating whether to include element midnodes in the operation.

NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOption	ListingOptionState ()
	Returns the listing option Created in NX6.0.4.

NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Operation	OperationState ()
	Returns the operation to be performed.

NXOpen::NXColor *	OriginalNodeLocationColor ()
	Returns the display color of proximity nodes' original location.

double	ProximityTolerance ()
	Returns the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry

NXOpen::CAE::SelectMeshList *	SelectionList ()
	Returns the selected meshes

void	SetAdjustedNodeLocationColor (NXOpen::NXColor *locationColor)
	Sets the display color of proximity node new location which will meet the given tolerance with undelying CAD geometry.

void	SetIncludeMidnodes (bool bIncludeMidnodes)
	Sets a value indicating whether to include element midnodes in the operation.

void	SetListingOptionState (NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOption option)
	Sets the listing option Created in NX6.0.4.

void	SetOperationState (NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Operation operation)
	Sets the operation to be performed.

void	SetOriginalNodeLocationColor (NXOpen::NXColor *locationColor)
	Sets the display color of proximity nodes' original location.

void	SetProximityTolerance (double dProximityTolerance)
	Sets the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry

void	SetShowNodeLabels (bool showLabels)
	Sets a value indicating whether to show the labels for proximity nodes are off underlying CAD geometry.

void	SetShowNodeLocations (bool showLocations)
	Sets a value indicating whether to show original location and adjusted location for the proximity nodes that are off the underlying CAD geometry by a given tolerance.

bool	ShowNodeLabels ()
	Returns a value indicating whether to show the labels for proximity nodes are off underlying CAD geometry.

bool	ShowNodeLocations ()
	Returns a value indicating whether to show original location and adjusted location for the proximity nodes that are off the underlying CAD geometry by a given tolerance.

NXOpen::Expression *	Tolerance ()
	Returns the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Allows you to query the mesh nodes that are off the underlying Cad geometry by a given tolerance, and if requested this builder can adjust the node locations to put them back on to the underlying Cad geometry.

<br> To create a new instance of this class, use @link CAE::MeshManager::CreateProjectNodesToCadGeometryBuilder  CAE::MeshManager::CreateProjectNodesToCadGeometryBuilder @endlink  <br>

Created in NX6.0.4.

Member Enumeration Documentation

enum NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOption

Listing Options.

Enumerator:

ListingOptionSummaryOnly	List only Summary information.
ListingOptionAll	List All information on nodes that are off the CAD geometry by more than the input tolerance.

enum NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Operation

Operations.

Enumerator:

OperationShow	Display information on nodes that are off the CAD geometry by more than the input tolerance.
OperationAdjust	Adjust nodes that are off the geometry by more than the input tolerance by projecting them on to the CAD geometry.

Member Function Documentation

NXOpen::NXColor* NXOpen::CAE::ProjectNodesToCadGeometryBuilder::AdjustedNodeLocationColor ( )

Returns the display color of proximity node new location which will meet the given tolerance with undelying CAD geometry.

Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::AdjustProximityNodes ( )

Adjusts the proximity nodes identified to the new location to meet the given tolerance with underlying CAD geometries.

The cached identified result will be clean when the adjust work is completed. The method Builder::Commit will do the same thing. The adjust work is only available when the context part of this builder is a CAE::FemPart .
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::SelectDisplayableObjectList* NXOpen::CAE::ProjectNodesToCadGeometryBuilder::CheckedObjectsList ( )

Returns the selected objects for checking.

The objects must be CAE::Mesh , CAE::CAEBody or CAE::CAEFace
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

std::vector<NXOpen::Point3d> NXOpen::CAE::ProjectNodesToCadGeometryBuilder::GetProximityNodes ( std::vector< NXOpen::CAE::FENode * > & proximityNodes )

Returns the cached proximity nodes calculated by CAE::ProjectNodesToCadGeometryBuilder::IdentifyProximityNodes .

Returns: Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

proximityNodes proximity nodes

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::IdentifyProximityNodes ( )

Identifies the proximity nodes which are off the underlying CAD geometry according to CAE::ProjectNodesToCadGeometryBuilder::ProximityTolerance and CAE::ProjectNodesToCadGeometryBuilder::SetProximityTolerance and CAE::ProjectNodesToCadGeometryBuilder::IncludeMidnodes and CAE::ProjectNodesToCadGeometryBuilder::SetIncludeMidnodes .

If showing nodes is true, the identified node location will be displayed. The identified result will be cached, you could access the cached identified nodes by CAE::ProjectNodesToCadGeometryBuilder::GetProximityNodes . Each time, the old cached result will be clean up when the new identify process is running.
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

bool NXOpen::CAE::ProjectNodesToCadGeometryBuilder::IncludeMidnodes ( )

Returns a value indicating whether to include element midnodes in the operation.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOption NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOptionState ( )

Returns the listing option
Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Operation NXOpen::CAE::ProjectNodesToCadGeometryBuilder::OperationState ( )

Returns the operation to be performed.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::NXColor* NXOpen::CAE::ProjectNodesToCadGeometryBuilder::OriginalNodeLocationColor ( )

Returns the display color of proximity nodes' original location.

Created in NX8.5.0.

License requirements : None

double NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ProximityTolerance ( )

Returns the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry

Deprecated:: Deprecated in NX8.5.0.

Use CAE::ProjectNodesToCadGeometryBuilder::Tolerance instead.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::SelectMeshList* NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SelectionList ( )

Returns the selected meshes

Deprecated:: Deprecated in NX8.5.0.

Use CAE::ProjectNodesToCadGeometryBuilder::CheckedObjectsList instead.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetAdjustedNodeLocationColor ( NXOpen::NXColor * locationColor )

Sets the display color of proximity node new location which will meet the given tolerance with undelying CAD geometry.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

locationColor locationcolor

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetIncludeMidnodes ( bool bIncludeMidnodes )

Sets a value indicating whether to include element midnodes in the operation.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

bIncludeMidnodes bincludemidnodes

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetListingOptionState ( NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ListingOption option )

Sets the listing option
Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

option option

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetOperationState ( NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Operation operation )

Sets the operation to be performed.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

operation operation

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetOriginalNodeLocationColor ( NXOpen::NXColor * locationColor )

Sets the display color of proximity nodes' original location.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

locationColor locationcolor

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetProximityTolerance ( double dProximityTolerance )

Sets the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry

Deprecated:: Deprecated in NX8.5.0.

Use CAE::ProjectNodesToCadGeometryBuilder::Tolerance instead.

Created in NX6.0.4.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

dProximityTolerance dproximitytolerance

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetShowNodeLabels ( bool showLabels )

Sets a value indicating whether to show the labels for proximity nodes are off underlying CAD geometry.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

showLabels showlabels

void NXOpen::CAE::ProjectNodesToCadGeometryBuilder::SetShowNodeLocations ( bool showLocations )

Sets a value indicating whether to show original location and adjusted location for the proximity nodes that are off the underlying CAD geometry by a given tolerance.

       The original node location will be displayed in color @link
       CAE::ProjectNodesToCadGeometryBuilder::OriginalNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::OriginalNodeLocationColor @endlink and @link
       CAE::ProjectNodesToCadGeometryBuilder::SetOriginalNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::SetOriginalNodeLocationColor @endlink .
       The adjusted node location will be displayed in color @link
       CAE::ProjectNodesToCadGeometryBuilder::AdjustedNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::AdjustedNodeLocationColor @endlink and @link
       CAE::ProjectNodesToCadGeometryBuilder::SetAdjustedNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::SetAdjustedNodeLocationColor @endlink .

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

showLocations showlocations

bool NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ShowNodeLabels ( )

Returns a value indicating whether to show the labels for proximity nodes are off underlying CAD geometry.

Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ProjectNodesToCadGeometryBuilder::ShowNodeLocations ( )

Returns a value indicating whether to show original location and adjusted location for the proximity nodes that are off the underlying CAD geometry by a given tolerance.

       The original node location will be displayed in color @link
       CAE::ProjectNodesToCadGeometryBuilder::OriginalNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::OriginalNodeLocationColor @endlink and @link
       CAE::ProjectNodesToCadGeometryBuilder::SetOriginalNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::SetOriginalNodeLocationColor @endlink .
       The adjusted node location will be displayed in color @link
       CAE::ProjectNodesToCadGeometryBuilder::AdjustedNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::AdjustedNodeLocationColor @endlink and @link
       CAE::ProjectNodesToCadGeometryBuilder::SetAdjustedNodeLocationColor
       CAE::ProjectNodesToCadGeometryBuilder::SetAdjustedNodeLocationColor @endlink .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::ProjectNodesToCadGeometryBuilder::Tolerance ( )

Returns the proximity tolerance used to determine if nodes on close enough to be considered on the CAD geometry
Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_ProjectNodesToCadGeometryBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
