   Represents a @link CAE::PostGraphBuilder CAE::PostGraphBuilder@endlink
<br> This is an abstract class and cannot be instantiated  <br>

Created in NX9.0.0. More...

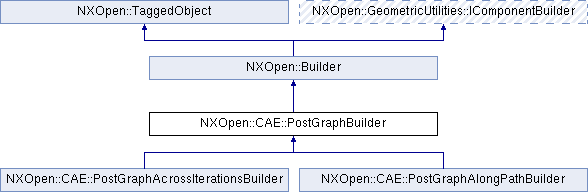

Inheritance diagram for NXOpen::CAE::PostGraphBuilder:

Public Types
enum	DataErrorHandling { DataErrorHandlingSkip, DataErrorHandlingUserValue }
	error handling option when result values are not present for the selected entities More...

enum	EntityType { EntityTypeNode, EntityTypeElement, EntityTypePoint, EntityTypeEdge, EntityTypeFace, EntityTypeBody }
	types of the entity objects which are selected More...

enum	EvalutionErrors { EvalutionErrorsSkip, EvalutionErrorsUserValue, EvalutionErrorsAbort }
	error handling option when there are expression evaluation errors while evaluating the formula More...

enum	GeometryValue { GeometryValueAverage, GeometryValueMinimum, GeometryValueMaximum, GeometryValueSum }
	This option is used to when the geometric entity selected has multiple result values. More...

enum	IncompatibleResult { IncompatibleResultSkip, IncompatibleResultAbort }
	error handling option when incompactible results are selected More...

enum	NodalCombination { NodalCombinationAverage, NodalCombinationMinimum, NodalCombinationMaximum, NodalCombinationSum, NodalCombinationNone }
	nodal combination option for determining the nodal result value for element and element-nodal result More...

Public Member Functions
NXOpen::CAE::Xyplot::ComplexOption2D	ComplexGraphTypes ()
	Returns the complex plot display option while plotting complex result type Created in NX9.0.0.

bool	CreateFieldOption ()
	Returns the option to create field of the across iteration graph created by expression Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::EvalutionErrors	EvalutionErrorsOption ()
	Returns the error handling option when there are evaluation errors on selected entities or path Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::GeometryValue	GeometryCombinationValue ()
	Returns the geometry value option in case of edge, face or body selection Created in NX9.0.0.

NXOpen::Fields::FieldTable *	GetFieldTable ()
	Gets the field which is created when user sets the CAE::PostGraphBuilder::CreateFieldOption and CAE::PostGraphBuilder::SetCreateFieldOption to true for across iterations type of graphs.

NXString	GraphTitle ()
	Returns the graph title Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::IncompatibleResult	IncompatibleResultOption ()
	Returns the error handling option when results are not compatible on selected entities or path Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::NodalCombination	NodalCombinationValue ()
	Returns the nodal combination option for determining the nodal value for element and element-nodal results Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::DataErrorHandling	NoDataOption ()
	Returns the error handling option when result is not present on selected entities or path Created in NX9.0.0.

bool	SaveAfuOption ()
	Returns the save in AFU option to save graph data as AFU records Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::EntityType	SelectedEntityType ()
	Returns the entity type of the tags of entities which passed using SetEntityObjects function Created in NX9.0.0.

void	SetComplexGraphTypes (NXOpen::CAE::Xyplot::ComplexOption2D complexGraphTypes)
	Sets the complex plot display option while plotting complex result type Created in NX9.0.0.

void	SetCreateFieldOption (bool createField)
	Sets the option to create field of the across iteration graph created by expression Created in NX9.0.0.

void	SetEntityIds (bool isnodal, const std::vector< int > &entityIds)
	Set entity ids for extracting result data Created in NX9.0.0.

void	SetEntityObjects (const std::vector< NXOpen::TaggedObject * > &entityObjs)
	Sets the entity objects for extracting result data.

void	SetEvalutionErrorsOption (NXOpen::CAE::PostGraphBuilder::EvalutionErrors evalutionErrorsOption)
	Sets the error handling option when there are evaluation errors on selected entities or path Created in NX9.0.0.

void	SetFreePoints (const std::vector< NXOpen::Point3d > &freePoints)
	Set free points for extracting data Created in NX9.0.0.

void	SetGeometryCombinationValue (NXOpen::CAE::PostGraphBuilder::GeometryValue geometryValue)
	Sets the geometry value option in case of edge, face or body selection Created in NX9.0.0.

void	SetGraphTitle (const NXString &graphTitle)
	Sets the graph title Created in NX9.0.0.

void	SetGraphTitle (const char *graphTitle)
	Sets the graph title Created in NX9.0.0.

void	SetIncompatibleResultOption (NXOpen::CAE::PostGraphBuilder::IncompatibleResult incompatibleResult)
	Sets the error handling option when results are not compatible on selected entities or path Created in NX9.0.0.

void	SetNodalCombinationValue (NXOpen::CAE::PostGraphBuilder::NodalCombination nodalValue)
	Sets the nodal combination option for determining the nodal value for element and element-nodal results Created in NX9.0.0.

void	SetNoDataOption (NXOpen::CAE::PostGraphBuilder::DataErrorHandling noDataOption)
	Sets the error handling option when result is not present on selected entities or path Created in NX9.0.0.

void	SetSaveAfuOption (bool saveAFU)
	Sets the save in AFU option to save graph data as AFU records Created in NX9.0.0.

void	SetSelectedEntityType (NXOpen::CAE::PostGraphBuilder::EntityType geometryEntity)
	Sets the entity type of the tags of entities which passed using SetEntityObjects function Created in NX9.0.0.

void	SetUserData (double userDataOption)
	Sets the error handling value used when error occurs or no data present on entities Created in NX9.0.0.

double	UserData ()
	Returns the error handling value used when error occurs or no data present on entities Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link CAE::PostGraphBuilder CAE::PostGraphBuilder@endlink
<br> This is an abstract class and cannot be instantiated  <br>

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::PostGraphBuilder::DataErrorHandling

error handling option when result values are not present for the selected entities

Enumerator:

DataErrorHandlingSkip	skip
DataErrorHandlingUserValue	User given value will used for those entities which do not have result value associated with them.

enum NXOpen::CAE::PostGraphBuilder::EntityType

types of the entity objects which are selected

Enumerator:

EntityTypeNode	node
EntityTypeElement	element
EntityTypePoint	point
EntityTypeEdge	edge
EntityTypeFace	face
EntityTypeBody	body

enum NXOpen::CAE::PostGraphBuilder::EvalutionErrors

error handling option when there are expression evaluation errors while evaluating the formula

Enumerator:

EvalutionErrorsSkip	skip
EvalutionErrorsUserValue	user value
EvalutionErrorsAbort	abort

enum NXOpen::CAE::PostGraphBuilder::GeometryValue

This option is used to when the geometric entity selected has multiple result values.

This option applies to how we will resolve these multiple values into one

Enumerator:

GeometryValueAverage	average
GeometryValueMinimum	minimum
GeometryValueMaximum	maximum
GeometryValueSum	sum

enum NXOpen::CAE::PostGraphBuilder::IncompatibleResult

error handling option when incompactible results are selected

Enumerator:

IncompatibleResultSkip	skip
IncompatibleResultAbort	abort

enum NXOpen::CAE::PostGraphBuilder::NodalCombination

nodal combination option for determining the nodal result value for element and element-nodal result

Enumerator:

NodalCombinationAverage	average
NodalCombinationMinimum	minimum
NodalCombinationMaximum	maximum
NodalCombinationSum	sum
NodalCombinationNone	none

Member Function Documentation

NXOpen::CAE::Xyplot::ComplexOption2D NXOpen::CAE::PostGraphBuilder::ComplexGraphTypes ( )

Returns the complex plot display option while plotting complex result type
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

bool NXOpen::CAE::PostGraphBuilder::CreateFieldOption ( )

Returns the option to create field of the across iteration graph created by expression
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::EvalutionErrors NXOpen::CAE::PostGraphBuilder::EvalutionErrorsOption ( )

Returns the error handling option when there are evaluation errors on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::GeometryValue NXOpen::CAE::PostGraphBuilder::GeometryCombinationValue ( )

Returns the geometry value option in case of edge, face or body selection
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::Fields::FieldTable* NXOpen::CAE::PostGraphBuilder::GetFieldTable ( )

Gets the field which is created when user sets the CAE::PostGraphBuilder::CreateFieldOption and CAE::PostGraphBuilder::SetCreateFieldOption to true for across iterations type of graphs.

Returns: field
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXString NXOpen::CAE::PostGraphBuilder::GraphTitle ( )

Returns the graph title
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::IncompatibleResult NXOpen::CAE::PostGraphBuilder::IncompatibleResultOption ( )

Returns the error handling option when results are not compatible on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::NodalCombination NXOpen::CAE::PostGraphBuilder::NodalCombinationValue ( )

Returns the nodal combination option for determining the nodal value for element and element-nodal results
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::DataErrorHandling NXOpen::CAE::PostGraphBuilder::NoDataOption ( )

Returns the error handling option when result is not present on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

bool NXOpen::CAE::PostGraphBuilder::SaveAfuOption ( )

Returns the save in AFU option to save graph data as AFU records
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphBuilder::EntityType NXOpen::CAE::PostGraphBuilder::SelectedEntityType ( )

Returns the entity type of the tags of entities which passed using SetEntityObjects function
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::PostGraphBuilder::SetComplexGraphTypes ( NXOpen::CAE::Xyplot::ComplexOption2D complexGraphTypes )

Sets the complex plot display option while plotting complex result type
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

complexGraphTypes complexgraphtypes

void NXOpen::CAE::PostGraphBuilder::SetCreateFieldOption ( bool createField )

Sets the option to create field of the across iteration graph created by expression
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

createField createfield

void NXOpen::CAE::PostGraphBuilder::SetEntityIds	(	bool	isnodal,
		const std::vector< int > &	entityIds
	)

Set entity ids for extracting result data
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

isnodal	isnodal
entityIds	entityids

void NXOpen::CAE::PostGraphBuilder::SetEntityObjects ( const std::vector< NXOpen::TaggedObject * > & entityObjs )

Sets the entity objects for extracting result data.

Objects passed to this method are of the type defined by CAE::PostGraphBuilder::SelectedEntityType . The types of objects allowed to be set are is defined by the CAE::PostGraphBuilder::EntityType .

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

entityObjs entityobjs

void NXOpen::CAE::PostGraphBuilder::SetEvalutionErrorsOption ( NXOpen::CAE::PostGraphBuilder::EvalutionErrors evalutionErrorsOption )

Sets the error handling option when there are evaluation errors on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

evalutionErrorsOption evalutionerrorsoption

void NXOpen::CAE::PostGraphBuilder::SetFreePoints ( const std::vector< NXOpen::Point3d > & freePoints )

Set free points for extracting data
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

freePoints freepoints

void NXOpen::CAE::PostGraphBuilder::SetGeometryCombinationValue ( NXOpen::CAE::PostGraphBuilder::GeometryValue geometryValue )

Sets the geometry value option in case of edge, face or body selection
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

geometryValue geometryvalue

void NXOpen::CAE::PostGraphBuilder::SetGraphTitle ( const NXString & graphTitle )

Sets the graph title
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

graphTitle graphtitle

void NXOpen::CAE::PostGraphBuilder::SetGraphTitle ( const char * graphTitle )

Sets the graph title
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

graphTitle graphtitle

void NXOpen::CAE::PostGraphBuilder::SetIncompatibleResultOption ( NXOpen::CAE::PostGraphBuilder::IncompatibleResult incompatibleResult )

Sets the error handling option when results are not compatible on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

incompatibleResult incompatibleresult

void NXOpen::CAE::PostGraphBuilder::SetNodalCombinationValue ( NXOpen::CAE::PostGraphBuilder::NodalCombination nodalValue )

Sets the nodal combination option for determining the nodal value for element and element-nodal results
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

nodalValue nodalvalue

void NXOpen::CAE::PostGraphBuilder::SetNoDataOption ( NXOpen::CAE::PostGraphBuilder::DataErrorHandling noDataOption )

Sets the error handling option when result is not present on selected entities or path
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

noDataOption nodataoption

void NXOpen::CAE::PostGraphBuilder::SetSaveAfuOption ( bool saveAFU )

Sets the save in AFU option to save graph data as AFU records
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

saveAFU saveafu

void NXOpen::CAE::PostGraphBuilder::SetSelectedEntityType ( NXOpen::CAE::PostGraphBuilder::EntityType geometryEntity )

Sets the entity type of the tags of entities which passed using SetEntityObjects function
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

geometryEntity geometryentity

void NXOpen::CAE::PostGraphBuilder::SetUserData ( double userDataOption )

Sets the error handling value used when error occurs or no data present on entities
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

userDataOption userdataoption

double NXOpen::CAE::PostGraphBuilder::UserData ( )

Returns the error handling value used when error occurs or no data present on entities
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

The documentation for this class was generated from the following file:

CAE_PostGraphBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
