Represents the builder of CAE::Optimization::TBSTopologyRestrictArea
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateTopologyRestrictAreaBuilder

Created in NX8.0.0. More...

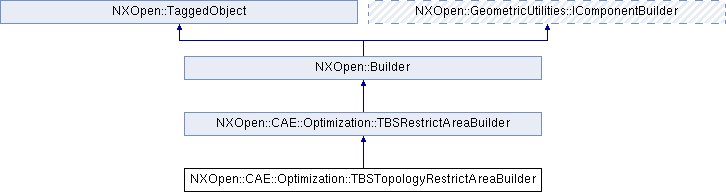

Inheritance diagram for NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder:

Public Types
enum	CheckTypeOption { CheckTypeOptionFrozen, CheckTypeOptionLinkTopo, CheckTypeOptionMaximumsSize, CheckTypeOptionMinimumSize, CheckTypeOptionCast }
	Defines the type of restriction. More...

Public Member Functions
NXOpen::CAE::Optimization::TBSCastCondition *	CastCondition ()
	Returns the cast condition Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSGroupDefinition *	CheckingElementGroup ()
	Returns the elements to react on the restrictions Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckTypeOption	CheckingType ()
	Returns the checking type Created in NX8.0.0.

NXOpen::Expression *	Distance ()
	Returns the distance value Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSTopologyLinkCondition *	LinkCondition ()
	Returns the link condition Created in NX8.0.0.

NXOpen::Expression *	MinimumThickness ()
	Returns the minimum thickness of the structure Created in NX8.0.0.

NXOpen::Expression *	Radius ()
	Returns the radius Created in NX8.0.0.

void	SetCheckingType (NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckTypeOption checkType)
	Sets the checking type Created in NX8.0.0.

NXOpen::Expression *	Thickness ()
	Returns the maximum thickness of the structure Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAE::Optimization::TBSRestrictAreaBuilder
NXOpen::CAE::Optimization::NameDescription *	NameDescription ()
	Returns the name description Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder of CAE::Optimization::TBSTopologyRestrictArea
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateTopologyRestrictAreaBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckTypeOption

Defines the type of restriction.

Enumerator:

CheckTypeOptionFrozen	All elements of the element group which do not undergo any changes during optimization.
CheckTypeOptionLinkTopo	Definition of symmetry and link condtions.
CheckTypeOptionMaximumsSize	Defition of the maximum structural diameter.
CheckTypeOptionMinimumSize	Definition of minimum structural diameter.
CheckTypeOptionCast	Manufacturing restrictions to guarantee the manufacturing of the elements.

Member Function Documentation

NXOpen::CAE::Optimization::TBSCastCondition* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CastCondition ( )

Returns the cast condition
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSGroupDefinition* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckingElementGroup ( )

Returns the elements to react on the restrictions
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckTypeOption NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckingType ( )

Returns the checking type
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::Distance ( )

Returns the distance value
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSTopologyLinkCondition* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::LinkCondition ( )

Returns the link condition
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::MinimumThickness ( )

Returns the minimum thickness of the structure
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::Radius ( )

Returns the radius
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::SetCheckingType ( NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::CheckTypeOption checkType )

Sets the checking type
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

checkType checktype

NXOpen::Expression* NXOpen::CAE::Optimization::TBSTopologyRestrictAreaBuilder::Thickness ( )

Returns the maximum thickness of the structure
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_Optimization_TBSTopologyRestrictAreaBuilder.hxx
