Represents the builder of CAE::Optimization::TBSDesignResponse
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateDesignResponseBuilder

Created in NX8.0.0. More...

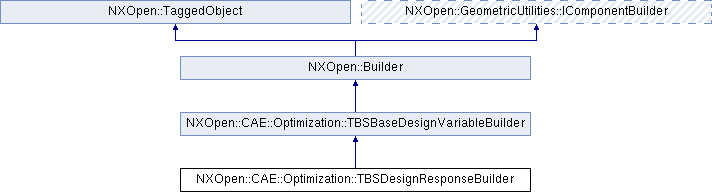

Inheritance diagram for NXOpen::CAE::Optimization::TBSDesignResponseBuilder:

Public Types
enum	Response { ResponseDynamicFrequency, ResponseDynamicFrequencyKressissel, ResponseVolume, ResponseVolumeFill, ResponseWeight, ResponseDisplacementAbsolute, ResponseDisplacementX, ResponseDisplacementY, ResponseDisplacementZ, ResponseDisplacementXAbsolute, ResponseDisplacementYAbsolute, ResponseDisplacementZAbsolute, ResponseRotationAbsolute, ResponseRotationX, ResponseRotationY, ResponseRotationZ, ResponseRotationXAbsolute, ResponseRotationYAbsolute, ResponseRotationZAbsolute, ResponseStrainEnergy, ResponseCenterGravityX, ResponseCenterGravityY, ResponseCenterGravityZ, ResponseInertiaXx, ResponseInertiaXy, ResponseInertiaXz, ResponseInertiaYy, ResponseInertiaYz, ResponseInertiaZz, ResponseReactionForceAbsolute, ResponseReactionForceX, ResponseReactionForceY, ResponseReactionForceZ, ResponseReactionForceXAbsolute, ResponseReactionForceYAbsolute, ResponseReactionForceZAbsolute, ResponseReactionForceRotationAbsolute, ResponseReactionForceRotationX, ResponseReactionForceRotationY, ResponseReactionForceRotationZ, ResponseReactionForceRotationXAbsolute, ResponseReactionForceRotationYAbsolute, ResponseReactionForceRotationZAbsolute, ResponseInternalForceAbsolute, ResponseInternalForceX, ResponseInternalForceY, ResponseInternalForceZ, ResponseInternalForceXAbsolute, ResponseInternalForceYAbsolute, ResponseInternalForceZAbsolute, ResponseInternalForceRotationAbsolute, ResponseInternalForceRotationX, ResponseInternalForceRotationY, ResponseInternalForceRotationZ, ResponseInternalForceRotationXAbsolute, ResponseInternalForceRotationYAbsolute, ResponseInternalForceRotationZAbsolute, ResponseFrequencyResponseAccelerationX, ResponseFrequencyResponseAccelerationY, ResponseFrequencyResponseAccelerationZ, ResponseFrequencyResponseCompliance, ResponseFrequencyResponseDbaPressure, ResponseFrequencyResponseDbPressure, ResponseFrequencyResponseDisplacementAbsolute, ResponseFrequencyResponseDisplacementXAbsolute, ResponseFrequencyResponseDisplacementYAbsolute, ResponseFrequencyResponseDisplacementZAbsolute, ResponseFrequencyResponsePhaseXAbsolute, ResponseFrequencyResponsePhaseYAbsolute, ResponseFrequencyResponsePhaseZAbsolute, ResponseFrequencyResponsePressure, ResponseFrequencyResponseRmsPressure, ResponseFrequencyResponseVelocityXAbsolute, ResponseFrequencyResponseVelocityYAbsolute, ResponseFrequencyResponseVelocityZAbsolute, ResponseFrequencyResponseNvhSolid, ResponseFrequencyResponseNvhShell, ResponseMisesStressHypothesis, ResponseMaximumPrincipalStress, ResponseMinimumAbsolutePrincipalStress, ResponseMaximumAbsolutePrincipalStress }
	Defines the design response type. More...

Public Types inherited from NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder
enum	GroupOperator { GroupOperatorMax, GroupOperatorMin, GroupOperatorSum, GroupOperatorCount, GroupOperatorDeviation }
	Defines the operator type to determine the design variable that used within the selection area. More...

Public Member Functions
void	SetVariableType (NXOpen::CAE::Optimization::TBSDesignResponseBuilder::Response categoryOption)
	Sets the varialbe type Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSDesignResponseBuilder::Response	VariableType ()
	Returns the varialbe type Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder
NXOpen::CAE::Optimization::TBSGroupDefinition *	DesignElements ()
	Returns the element group in which the value of the design variable is to be determined Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSGroupDefinition *	DesignNodes ()
	Returns the node group in which the value of the design variable is to be determined Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator	GroupOperatorOption ()
	Returns the group operator option Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSLoadCaseManager *	LoadCases ()
	Returns the load cases Created in NX8.0.0.

NXOpen::CAE::Optimization::NameDescription *	NameDescription ()
	Returns the name description Created in NX8.0.0.

NXOpen::CoordinateSystem *	ReferenceCoordinateSystem ()
	Returns the referenced coordinate system Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType	SelectionAreaType ()
	Returns the type of selection location on which design variable is applied Created in NX8.0.0.

void	SetGroupOperatorOption (NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator groupOperatorOption)
	Sets the group operator option Created in NX8.0.0.

void	SetReferenceCoordinateSystem (NXOpen::CoordinateSystem *referenceCsys)
	Sets the referenced coordinate system Created in NX8.0.0.

void	SetSelectionAreaType (NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType areaType)
	Sets the type of selection location on which design variable is applied Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder of CAE::Optimization::TBSDesignResponse
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateDesignResponseBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::TBSDesignResponseBuilder::Response

Defines the design response type.

Enumerator:

ResponseDynamicFrequency	Eigenfrequency from modal analysis.
ResponseDynamicFrequencyKressissel	Eigenfrequency calculated with Kreisselmaier-Steinhauser formula.
ResponseVolume	Volume of element.
ResponseVolumeFill	Volume of element.
ResponseWeight	Weight of element.
ResponseDisplacementAbsolute	Absolute nodal displacement.
ResponseDisplacementX	Nodal displacement in X-direction.
ResponseDisplacementY	Nodal displacement in Y-direction.
ResponseDisplacementZ	Nodal displacement in Z-direction.
ResponseDisplacementXAbsolute	Absolute nodal displacement in X-direction.
ResponseDisplacementYAbsolute	Absolute nodal displacement in Y-direction.
ResponseDisplacementZAbsolute	Absolute nodal displacement in Z-directionm.
ResponseRotationAbsolute	Absolute rotation.
ResponseRotationX	Nodal rotation around X-axis.
ResponseRotationY	Nodal rotation around Y-axis.
ResponseRotationZ	Nodal rotation around Z-axis.
ResponseRotationXAbsolute	Absolute nodal rotation around X-axis.
ResponseRotationYAbsolute	Absolute nodal rotation around Y-axis.
ResponseRotationZAbsolute	Absolute nodal rotation around Z-axis.
ResponseStrainEnergy	Strain energy.
ResponseCenterGravityX	Center of gravity for the X-direction.
ResponseCenterGravityY	Center of gravity for the Y-direction.
ResponseCenterGravityZ	Center of gravity for the Z-direction.
ResponseInertiaXx	Moment of inertia around X-X-direction.
ResponseInertiaXy	Moment of inertia around X-Y-direction.
ResponseInertiaXz	Moment of inertia around X-Z-direction.
ResponseInertiaYy	Moment of inertia around Y-Y-direction.
ResponseInertiaYz	Moment of inertia around Y-Z-direction.
ResponseInertiaZz	Moment of inertia around Z-Z-direction.
ResponseReactionForceAbsolute	Absolute nodal reaction force.
ResponseReactionForceX	Nodal reaction force in X-direction.
ResponseReactionForceY	Nodal reaction force in Y-direction.
ResponseReactionForceZ	Nodal reaction force in Z-direction.
ResponseReactionForceXAbsolute	Absolute nodal reaction force in X-direction.
ResponseReactionForceYAbsolute	Absolute nodal reaction force in Y-direction.
ResponseReactionForceZAbsolute	Absolute nodal reaction force in Z-direction.
ResponseReactionForceRotationAbsolute	Absolute nodal reaction moment.
ResponseReactionForceRotationX	Nodal reaction moment around X-axis.
ResponseReactionForceRotationY	Nodal reaction moment around Y-axis.
ResponseReactionForceRotationZ	Nodal reaction moment around Z-axis.
ResponseReactionForceRotationXAbsolute	Absolute nodal reaction moment around X-axis.
ResponseReactionForceRotationYAbsolute	Absolute nodal reaction moment around Y-axis.
ResponseReactionForceRotationZAbsolute	Absolute nodal reaction moment around Z-axis.
ResponseInternalForceAbsolute	Absolute nodal internal force.
ResponseInternalForceX	Nodal internal force in X-direction.
ResponseInternalForceY	Nodal internal force in Y-direction.
ResponseInternalForceZ	Nodal internal force in Z-direction.
ResponseInternalForceXAbsolute	Absolute nodal internal force in X-direction.
ResponseInternalForceYAbsolute	Absolute nodal internal force in Y-direction.
ResponseInternalForceZAbsolute	Absolute nodal internal force in Z-direction.
ResponseInternalForceRotationAbsolute	Absolute nodal internal moment.
ResponseInternalForceRotationX	Nodal internal moment around X-axis.
ResponseInternalForceRotationY	Nodal internal moment around Y-axis.
ResponseInternalForceRotationZ	Nodal internal moment around Z-axis.
ResponseInternalForceRotationXAbsolute	Absolute nodal internal moment around X-axis.
ResponseInternalForceRotationYAbsolute	Absolute nodal internal moment around Y-axis.
ResponseInternalForceRotationZAbsolute	Absolute nodal internal moment around Z-axis.
ResponseFrequencyResponseAccelerationX	Acceleration in X-direction for frequency response.
ResponseFrequencyResponseAccelerationY	Acceleration in Y-direction for frequency response.
ResponseFrequencyResponseAccelerationZ	Acceleration in Z-direction for frequency response.
ResponseFrequencyResponseCompliance	Dynamic compliance for frequency response.
ResponseFrequencyResponseDbaPressure	Sound pressure level (dBA)
ResponseFrequencyResponseDbPressure	Sound pressure level (dB)
ResponseFrequencyResponseDisplacementAbsolute	Absolute amplitude for frequency response.
ResponseFrequencyResponseDisplacementXAbsolute	Amplitude in X-direction for frequency response.
ResponseFrequencyResponseDisplacementYAbsolute	Amplitude in Y-direction for frequency respons.
ResponseFrequencyResponseDisplacementZAbsolute	Amplitude in Z-direction for frequency respons.
ResponseFrequencyResponsePhaseXAbsolute	Phase in X-direction for frequency response.
ResponseFrequencyResponsePhaseYAbsolute	Phase in Y-direction for frequency response.
ResponseFrequencyResponsePhaseZAbsolute	Phase in Z-direction for frequency response.
ResponseFrequencyResponsePressure	Instantaneous sound pressure.
ResponseFrequencyResponseRmsPressure	Effective sound pressure.
ResponseFrequencyResponseVelocityXAbsolute	Velocity in X-direction for frequecy response.
ResponseFrequencyResponseVelocityYAbsolute	Velocity in Y-direction for frequecy response.
ResponseFrequencyResponseVelocityZAbsolute	Velocity in Z-direction for frequecy response.
ResponseFrequencyResponseNvhSolid	Surface normal velocity equivalent. Referenced node group, must be on solid elements
ResponseFrequencyResponseNvhShell	Surface normal velocity equivalent. Referenced node group, must be on plate or shell elements
ResponseMisesStressHypothesis	Mises Stress hypothesis.
ResponseMaximumPrincipalStress	Maximum principal Stress.
ResponseMinimumAbsolutePrincipalStress	Absolute value of the minimum principal Stress.
ResponseMaximumAbsolutePrincipalStress	Maximum of absolute value of the principal stress.

Member Function Documentation

void NXOpen::CAE::Optimization::TBSDesignResponseBuilder::SetVariableType ( NXOpen::CAE::Optimization::TBSDesignResponseBuilder::Response categoryOption )

Sets the varialbe type
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

categoryOption categoryoption

NXOpen::CAE::Optimization::TBSDesignResponseBuilder::Response NXOpen::CAE::Optimization::TBSDesignResponseBuilder::VariableType ( )

Returns the varialbe type
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_Optimization_TBSDesignResponseBuilder.hxx
