Represents the builder of CAE::Optimization::TBSDesignVariable
This is an abstract class, and cannot be created. More...

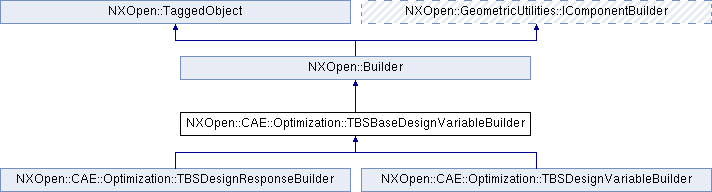

Inheritance diagram for NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder:

Public Types
enum	GroupOperator { GroupOperatorMax, GroupOperatorMin, GroupOperatorSum, GroupOperatorCount, GroupOperatorDeviation }
	Defines the operator type to determine the design variable that used within the selection area. More...

Public Member Functions
NXOpen::CAE::Optimization::TBSGroupDefinition *	DesignElements ()
	Returns the element group in which the value of the design variable is to be determined Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSGroupDefinition *	DesignNodes ()
	Returns the node group in which the value of the design variable is to be determined Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator	GroupOperatorOption ()
	Returns the group operator option Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSLoadCaseManager *	LoadCases ()
	Returns the load cases Created in NX8.0.0.

NXOpen::CAE::Optimization::NameDescription *	NameDescription ()
	Returns the name description Created in NX8.0.0.

NXOpen::CoordinateSystem *	ReferenceCoordinateSystem ()
	Returns the referenced coordinate system Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType	SelectionAreaType ()
	Returns the type of selection location on which design variable is applied Created in NX8.0.0.

void	SetGroupOperatorOption (NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator groupOperatorOption)
	Sets the group operator option Created in NX8.0.0.

void	SetReferenceCoordinateSystem (NXOpen::CoordinateSystem *referenceCsys)
	Sets the referenced coordinate system Created in NX8.0.0.

void	SetSelectionAreaType (NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType areaType)
	Sets the type of selection location on which design variable is applied Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder of CAE::Optimization::TBSDesignVariable
This is an abstract class, and cannot be created.

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator

Defines the operator type to determine the design variable that used within the selection area.

Enumerator:

GroupOperatorMax	Maximum value fo the selection area.
GroupOperatorMin	Minimum value of the selection area.
GroupOperatorSum	Sum of all values of the selection area.
GroupOperatorCount	Determines the number of values of the selection area.
GroupOperatorDeviation	Deviation from the maximum value of the reference value.

Member Function Documentation

NXOpen::CAE::Optimization::TBSGroupDefinition* NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::DesignElements ( )

Returns the element group in which the value of the design variable is to be determined
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSGroupDefinition* NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::DesignNodes ( )

Returns the node group in which the value of the design variable is to be determined
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperatorOption ( )

Returns the group operator option
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSLoadCaseManager* NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::LoadCases ( )

Returns the load cases
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::NameDescription* NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::NameDescription ( )

Returns the name description
Created in NX8.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::ReferenceCoordinateSystem ( )

Returns the referenced coordinate system
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::SelectionAreaType ( )

Returns the type of selection location on which design variable is applied
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::SetGroupOperatorOption ( NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator groupOperatorOption )

Sets the group operator option
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

groupOperatorOption groupoperatoroption

void NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::SetReferenceCoordinateSystem ( NXOpen::CoordinateSystem * referenceCsys )

Sets the referenced coordinate system
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

referenceCsys referencecsys

void NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::SetSelectionAreaType ( NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType areaType )

Sets the type of selection location on which design variable is applied
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

areaType areatype

The documentation for this class was generated from the following file:

CAE_Optimization_TBSBaseDesignVariableBuilder.hxx
