NXOpen::CAE::Optimization::DAOObjective Class Reference

Represents a CAE::Optimization::DAOObjective . More...

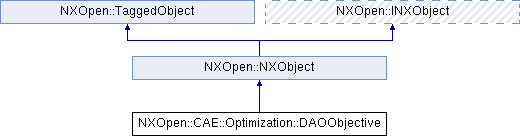

Inheritance diagram for NXOpen::CAE::Optimization::DAOObjective:

Public Member Functions
NXOpen::CAE::Optimization::Category	CategoryType ()
	Returns the category type Created in NX8.0.0.
NXOpen::CAE::Optimization::Geometry	GeometryType ()
	Returns the geometry type Created in NX8.0.0.
std::vector < NXOpen::DisplayableObject * >	GetGeometry ()
	Gets the target geometry.
int	GetNumberResultGroup ()
	Gets the objective result group number.
std::vector< double >	GetResults (int resultGroupIndex)
	Gets the objective results.
NXOpen::CAE::Optimization::Hookes	Hookes2dLocation ()
	Returns the Hooke's 2d location
int	LoadCase ()
	Returns the frequency load case index Created in NX8.5.0.
int	ModeNumber ()
	Returns the frequency mode number Created in NX8.5.0.
NXOpen::CAE::Optimization::Goal	ObjectiveGoal ()
	Returns the objective goal Created in NX8.0.0.
NXOpen::CAE::Optimization::Response	Response ()
	Returns the objective response Created in NX8.0.0.
NXOpen::CAE::ResultMeasure *	ResultMeasure ()
	Returns the result measure Created in NX8.5.0.
void	SetCategoryType (NXOpen::CAE::Optimization::Category categoryType)
	Sets the category type Created in NX8.0.0.
void	SetGeometry (const std::vector< NXOpen::DisplayableObject * > &geometry)
	Sets the target geometry Created in NX8.0.0.
void	SetGeometryType (NXOpen::CAE::Optimization::Geometry geometryType)
	Sets the geometry type Created in NX8.0.0.
void	SetHookes2dLocation (NXOpen::CAE::Optimization::Hookes hookesLocation)
	Sets the Hooke's 2d location
void	SetLoadCase (int loadcase)
	Sets the frequency load case index Created in NX8.5.0.
void	SetModeNumber (int modeNumber)
	Sets the frequency mode number Created in NX8.5.0.
void	SetObjectiveGoal (NXOpen::CAE::Optimization::Goal objectiveGoal)
	Sets the objective goal Created in NX8.0.0.
void	SetResponse (NXOpen::CAE::Optimization::Response objectiveResponse)
	Sets the objective response Created in NX8.0.0.
void	SetResultMeasure (NXOpen::CAE::ResultMeasure *resMeas)
	Sets the result measure Created in NX8.5.0.
void	SetTargetUnit (NXOpen::Unit *targetUnit)
	Sets the target unit Created in NX8.0.0.
void	SetTargetValue (double targetValue)
	Sets the target value Created in NX8.0.0.
NXOpen::Unit *	TargetUnit ()
	Returns the target unit Created in NX8.0.0.
double	TargetValue ()
	Returns the target value Created in NX8.0.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Represents a CAE::Optimization::DAOObjective .

Created in NX8.0.0.

Member Function Documentation

NXOpen::CAE::Optimization::Category NXOpen::CAE::Optimization::DAOObjective::CategoryType

(

)

Returns the category type
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Geometry NXOpen::CAE::Optimization::DAOObjective::GeometryType

(

)

Returns the geometry type
Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::DisplayableObject *> NXOpen::CAE::Optimization::DAOObjective::GetGeometry

(

)

Gets the target geometry.

Returns

Target geometry
Created in NX8.0.0.

License requirements : None

int NXOpen::CAE::Optimization::DAOObjective::GetNumberResultGroup

(

)

Gets the objective result group number.

Returns

Result group number
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::CAE::Optimization::DAOObjective::GetResults

(

int

resultGroupIndex

)

Gets the objective results.

Returns

Objective optimization results
Created in NX8.0.0.

License requirements : None

Parameters

resultGroupIndex

Result group index

NXOpen::CAE::Optimization::Hookes NXOpen::CAE::Optimization::DAOObjective::Hookes2dLocation

(

)

Returns the Hooke's 2d location

Deprecated:

Deprecated in NX8.5.0.

Use the ShellSection property on one of the following classes - CAE::ResultMeasureResultSectionOptions , CAE::ResultMeasureResultDirectionSectionOptions , or CAE::ResultMeasureResultAllOptions

Created in NX8.0.0.

License requirements : None

int NXOpen::CAE::Optimization::DAOObjective::LoadCase

(

)

Returns the frequency load case index
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::Optimization::DAOObjective::ModeNumber

(

)

Returns the frequency mode number
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::Optimization::Goal NXOpen::CAE::Optimization::DAOObjective::ObjectiveGoal

(

)

Returns the objective goal
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Response NXOpen::CAE::Optimization::DAOObjective::Response

(

)

Returns the objective response
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::ResultMeasure* NXOpen::CAE::Optimization::DAOObjective::ResultMeasure

(

)

Returns the result measure
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::Optimization::DAOObjective::SetCategoryType

(

NXOpen::CAE::Optimization::Category

categoryType

)

Sets the category type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

categoryType

Category type

void NXOpen::CAE::Optimization::DAOObjective::SetGeometry

(

const std::vector< NXOpen::DisplayableObject * > &

geometry

)

Sets the target geometry
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

geometry

Target geometry

void NXOpen::CAE::Optimization::DAOObjective::SetGeometryType

(

NXOpen::CAE::Optimization::Geometry

geometryType

)

Sets the geometry type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

geometryType

Geometry type

void NXOpen::CAE::Optimization::DAOObjective::SetHookes2dLocation

(

NXOpen::CAE::Optimization::Hookes

hookesLocation

)

Sets the Hooke's 2d location

Deprecated:

Deprecated in NX8.5.0.

Use the ShellSection property on one of the following classes - CAE::ResultMeasureResultSectionOptions , CAE::ResultMeasureResultDirectionSectionOptions , or CAE::ResultMeasureResultAllOptions

Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

hookesLocation

Hookes 2d location

void NXOpen::CAE::Optimization::DAOObjective::SetLoadCase

(

int

loadcase

)

Sets the frequency load case index
Created in NX8.5.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

loadcase

loadcase

void NXOpen::CAE::Optimization::DAOObjective::SetModeNumber

(

int

modeNumber

)

Sets the frequency mode number
Created in NX8.5.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

modeNumber

Mode number

void NXOpen::CAE::Optimization::DAOObjective::SetObjectiveGoal

(

NXOpen::CAE::Optimization::Goal

objectiveGoal

)

Sets the objective goal
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

objectiveGoal

Objective goal

void NXOpen::CAE::Optimization::DAOObjective::SetResponse

(

NXOpen::CAE::Optimization::Response

objectiveResponse

)

Sets the objective response
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

objectiveResponse

Objective response

void NXOpen::CAE::Optimization::DAOObjective::SetResultMeasure

(

NXOpen::CAE::ResultMeasure *

resMeas

)

Sets the result measure
Created in NX8.5.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

resMeas

resmeas

void NXOpen::CAE::Optimization::DAOObjective::SetTargetUnit

(

NXOpen::Unit *

targetUnit

)

Sets the target unit
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

targetUnit

Target unit

void NXOpen::CAE::Optimization::DAOObjective::SetTargetValue

(

double

targetValue

)

Sets the target value
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

targetValue

Target value

NXOpen::Unit* NXOpen::CAE::Optimization::DAOObjective::TargetUnit

(

)

Returns the target unit
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::Optimization::DAOObjective::TargetValue

(

)

Returns the target value
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAE_Optimization_DAOObjective.hxx
