NXOpen::CAE::ModelUpdateSolution Class Reference

Represents a CAE::ModelUpdateSolution , which is a meta-solution used to update finite element models to match real life test data
To create or edit an instance of this class, use CAE::ModelUpdateSolutionBuilder

Created in NX7.5.0. More...

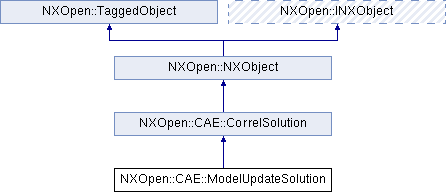

Inheritance diagram for NXOpen::CAE::ModelUpdateSolution:

Public Types
enum	TargetType { TargetTypeAll, TargetTypeFrequencies, TargetTypeModeShapes }
	Represents the type when export to targets and errors to csv file. More...

Public Member Functions
void	CalculateErrors ()
	Calculates errors Created in NX7.5.0.
NXOpen::CAE::ModelUpdateSolution *	CloneModelupdate ()
	Make a clone of a model update solution.
NXOpen::CAE::ModelUpdateCorrelMethodBuilder *	CreateCorrelMethodBuilder ()
	Creates the builder object of model update correlation method.
NXOpen::CAE::ModelUpdateOptimOptionsBuilder *	CreateOptimOptionsBuilder ()
	Creates the builder object of model update optimize options.
NXOpen::CAE::ModelUpdateOptionsBuilder *	CreateOptionsBuilder ()
	Creates the builder object of model update options.
NXOpen::CAE::ModelUpdateOverallWeightsBuilder *	CreateOverallWeightsBuilder ()
	Creates the builder object of model update overall weights.
NXOpen::CAE::ModelUpdateDesignVariablesCollection *	DesignVariables ()
	The design variables collection for this meta solution.
void	ExportDesignVariablesCsvFile (const NXString &fileName)
	Export the model update design variables to the csv file Created in NX7.5.1.
void	ExportDesignVariablesCsvFile (const char *fileName)
	Export the model update design variables to the csv file Created in NX7.5.1.
void	ExportErrorsCsvFile (NXOpen::CAE::ModelUpdateSolution::TargetType targetType, const NXString &fileName)
	Export the model update errors to the csv file Created in NX7.5.1.
void	ExportErrorsCsvFile (NXOpen::CAE::ModelUpdateSolution::TargetType targetType, const char *fileName)
	Export the model update errors to the csv file Created in NX7.5.1.
void	ExportSensitivitiesCsvFile (const NXString &fileName)
	Export the model update sensitivities to the csv file Created in NX7.5.1.
void	ExportSensitivitiesCsvFile (const char *fileName)
	Export the model update sensitivities to the csv file Created in NX7.5.1.
void	ExportTargetsCsvFile (NXOpen::CAE::ModelUpdateSolution::TargetType tagetType, const NXString &fileName)
	Export the model update targets to the csv file Created in NX7.5.1.
void	ExportTargetsCsvFile (NXOpen::CAE::ModelUpdateSolution::TargetType tagetType, const char *fileName)
	Export the model update targets to the csv file Created in NX7.5.1.
std::vector < NXOpen::CAE::ModelUpdateDesignVariable * >	GetDesignVariables ()
	Returns the design variables in the model update solution.
int	GetDesignVarNumber ()
	Gets the number of design variables.
void	ResetDesignVariables ()
	Resets the design variables Created in NX7.5.0.
void	ResetTargets ()
	Resets the targets Created in NX7.5.0.
void	SetDesignVarActive (int designVarIndex, bool active)
	Sets a specific design variable as active or not Created in NX7.5.0.
void	SetDesignVariablesInitialValue (double initialValue)
	Sets the value of the design variables.
void	SetDesignVarLowerBound (int designVarIndex, double lowerBound)
	Sets lower bound for a specific design variable Created in NX7.5.0.
void	SetDesignVarUpperBound (int designVarIndex, double upperBound)
	Sets upper bound for a specific design variable Created in NX7.5.0.
void	SetDesignVarValue (int designVarIndex, double value)
	Sets value for a specific design variable Created in NX7.5.0.
void	SetDesignVarWeight (int designVarIndex, double weight)
	Sets weight for a specific design variable Created in NX7.5.0.
void	SetFreqTargetActive (int freqTargetIndex, bool active)
	Sets active status for a specific frequency target Created in NX7.5.0.
void	SetFreqTargetWeight (int freqTargetIndex, double weight)
	Sets weight for a specific frequency target Created in NX7.5.0.
void	SetModeShapeTargetActive (int modeShapeTargetIndex, bool active)
	Sets active status for a specific mode shape target Created in NX7.5.0.
void	SetModeShapeTargetWeight (int modeShapeTargetIndex, double modeShapeWeight)
	Sets weight for a specific mode shape target Created in NX7.5.0.
void	UpdateDesignVariables ()
	Update the design variable modeling objects Created in NX7.5.0.
void	UpdateFiniteElementModel ()
	Update the finite element model Created in NX7.5.0.
Public Member Functions inherited from NXOpen::CAE::CorrelSolution
std::vector< double >	CalculateComacs (std::vector< int > &referenceModeNumbers, std::vector< int > &workModeNumbers, std::vector< double > &referenceModeFrequencies, std::vector< double > &workModeFrequencies, std::vector< int > &refNodesHaveSensors, std::vector< int > &refNodeIndex, std::vector< int > &refDofIndex)
	Computes the CoMAC correlation metric for active modes.
NXOpen::CAE::CorrelSolution *	CloneCorrelation ()
	Make a clone of a correl solution.
std::vector< double >	ComputeMacs (std::vector< double > &referenceModeFrequencies, std::vector< int > &referenceModeNumbers, std::vector< double > &workModeFrequencies, std::vector< int > &workModeNumbers)
	Computes the Model Assurance Criterion (MAC) correlation metric for active modes.
void	ComputeModePairsForSol ()
	Compute mode pairs for correlation solution Created in NX7.5.0.
NXOpen::CAE::CorrelModePairingBuilder *	CreateModePairingBuilder ()
	Creates the builder object for mode pairing editing.
void	Destroy (bool deleteResultFile)
	Deletes a correlation solution Created in NX5.0.0.
void	ExportModePairCsvFile (const NXString &filename)
	Export mode pair to CSV file Created in NX7.5.0.
void	ExportModePairCsvFile (const char *filename)
	Export mode pair to CSV file Created in NX7.5.0.
void	ExportShapeMetricsCsvFile (NXOpen::CAE::CorrelShapemetrictype metricCode, const NXString &filename)
	Export shape metrics to CSV file Created in NX7.5.0.
void	ExportShapeMetricsCsvFile (NXOpen::CAE::CorrelShapemetrictype metricCode, const char *filename)
	Export shape metrics to CSV file Created in NX7.5.0.
void	GenerateComacResults ()
	Create COMAC results Created in NX7.5.1.
void	GenerateMatchingDofset ()
	Create Matching DOFSet Created in NX7.5.0.
NXString	GetSolutionName ()
	Returns the correlation solution name.
void	SetActiveModePair (int referenceModeNumber, int workModeNumber, bool active)
	Sets a specific mode pair as active or not Created in NX6.0.1.
void	SetActiveRefMode (int refModeNumber, bool active)
	Sets a specific reference mode as active or not Created in NX6.0.1.
void	SetActiveSensor (int sensorNumber, bool active)
	Sets a specific sensor as active or not Created in NX7.5.0.
void	SetActiveSensorDof (int sensorNumber, int dofNumber, bool active)
	Sets a specific sensor DOF as active or not Created in NX7.5.0.
void	SetActiveSensorDofOrientation (int sensorNumber, int dofNumber, bool orientation)
	Sets a specific sensor DOF orientation Created in NX7.5.0.
void	SetActiveWorkMode (int workModeNumber, bool active)
	Sets a specific work mode as active or not Created in NX6.0.1.
void	SetSolutionName (const NXString &solutionName, bool renameResultFile)
	Sets the correlation solution name Created in NX5.0.0.
void	SetSolutionName (const char *solutionName, bool renameResultFile)
	Sets the correlation solution name Created in NX5.0.0.
void	UpdateNodeMatchings ()
	Update correlation node matchings Created in NX7.5.0.
void	UpdateResultsForSolution (NXOpen::CAE::SimSolution *tSolution, bool ignoreReload)
	Update results for correlation solution Created in NX7.5.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a CAE::ModelUpdateSolution , which is a meta-solution used to update finite element models to match real life test data
To create or edit an instance of this class, use CAE::ModelUpdateSolutionBuilder

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::ModelUpdateSolution::TargetType

Represents the type when export to targets and errors to csv file.

Enumerator:

TargetTypeAll	Export all the targets to the csv file.
TargetTypeFrequencies	Export all the frequency targets to the csv file.
TargetTypeModeShapes	Export all the mode shape targets to the csv file.

Member Function Documentation

void NXOpen::CAE::ModelUpdateSolution::CalculateErrors

(

)

Calculates errors
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateSolution* NXOpen::CAE::ModelUpdateSolution::CloneModelupdate

(

)

Make a clone of a model update solution.

Returns

Cloned solution
Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateCorrelMethodBuilder* NXOpen::CAE::ModelUpdateSolution::CreateCorrelMethodBuilder

(

)

Creates the builder object of model update correlation method.

Returns

Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateOptimOptionsBuilder* NXOpen::CAE::ModelUpdateSolution::CreateOptimOptionsBuilder

(

)

Creates the builder object of model update optimize options.

Returns

Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateOptionsBuilder* NXOpen::CAE::ModelUpdateSolution::CreateOptionsBuilder

(

)

Creates the builder object of model update options.

Returns

Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateOverallWeightsBuilder* NXOpen::CAE::ModelUpdateSolution::CreateOverallWeightsBuilder

(

)

Creates the builder object of model update overall weights.

Returns

Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateDesignVariablesCollection* NXOpen::CAE::ModelUpdateSolution::DesignVariables

(

)

The design variables collection for this meta solution.

Created in NX8.0.1.

void NXOpen::CAE::ModelUpdateSolution::ExportDesignVariablesCsvFile

(

const NXString &

fileName

)

Export the model update design variables to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

fileName

CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportDesignVariablesCsvFile

(

const char *

fileName

)

Export the model update design variables to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

fileName

CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportErrorsCsvFile	(	NXOpen::CAE::ModelUpdateSolution::TargetType	targetType,
		const NXString &	fileName
	)

Export the model update errors to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

targetType	Target type of export to csv file
fileName	CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportErrorsCsvFile	(	NXOpen::CAE::ModelUpdateSolution::TargetType	targetType,
		const char *	fileName
	)

Export the model update errors to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

targetType	Target type of export to csv file
fileName	CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportSensitivitiesCsvFile

(

const NXString &

fileName

)

Export the model update sensitivities to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

fileName

CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportSensitivitiesCsvFile

(

const char *

fileName

)

Export the model update sensitivities to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

fileName

CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportTargetsCsvFile	(	NXOpen::CAE::ModelUpdateSolution::TargetType	tagetType,
		const NXString &	fileName
	)

Export the model update targets to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

tagetType	Target type of export to csv file
fileName	CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSolution::ExportTargetsCsvFile	(	NXOpen::CAE::ModelUpdateSolution::TargetType	tagetType,
		const char *	fileName
	)

Export the model update targets to the csv file
Created in NX7.5.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

tagetType	Target type of export to csv file
fileName	CSV file name. NOTE: The full Unicode character set is not supported for this parameter.

std::vector<NXOpen::CAE::ModelUpdateDesignVariable *> NXOpen::CAE::ModelUpdateSolution::GetDesignVariables

(

)

Returns the design variables in the model update solution.

Returns

Created in NX8.0.1.

License requirements : solid_modeling ("SOLIDS MODELING")

int NXOpen::CAE::ModelUpdateSolution::GetDesignVarNumber

(

)

Gets the number of design variables.

Returns

Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateSolution::ResetDesignVariables

(

)

Resets the design variables
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateSolution::ResetTargets

(

)

Resets the targets
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateSolution::SetDesignVarActive	(	int	designVarIndex,
		bool	active
	)

Sets a specific design variable as active or not
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVarIndex	index of design variable
active	activate or deactivate flag

void NXOpen::CAE::ModelUpdateSolution::SetDesignVariablesInitialValue

(

double

initialValue

)

Sets the value of the design variables.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

initialValue

initial value

void NXOpen::CAE::ModelUpdateSolution::SetDesignVarLowerBound	(	int	designVarIndex,
		double	lowerBound
	)

Sets lower bound for a specific design variable
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVarIndex	index of design variable
lowerBound	new lower bound value of design variable

void NXOpen::CAE::ModelUpdateSolution::SetDesignVarUpperBound	(	int	designVarIndex,
		double	upperBound
	)

Sets upper bound for a specific design variable
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVarIndex	index of design variable
upperBound	new upper bound value of design variable

void NXOpen::CAE::ModelUpdateSolution::SetDesignVarValue	(	int	designVarIndex,
		double	value
	)

Sets value for a specific design variable
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVarIndex	index of design variable
value	new value of design variable

void NXOpen::CAE::ModelUpdateSolution::SetDesignVarWeight	(	int	designVarIndex,
		double	weight
	)

Sets weight for a specific design variable
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVarIndex	index of design variable
weight	new weight value of design variable

void NXOpen::CAE::ModelUpdateSolution::SetFreqTargetActive	(	int	freqTargetIndex,
		bool	active
	)

Sets active status for a specific frequency target
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

freqTargetIndex	index of frequency target
active	new active status of frequency target

void NXOpen::CAE::ModelUpdateSolution::SetFreqTargetWeight	(	int	freqTargetIndex,
		double	weight
	)

Sets weight for a specific frequency target
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

freqTargetIndex	index of frequency target
weight	new weight value of frequency target

void NXOpen::CAE::ModelUpdateSolution::SetModeShapeTargetActive	(	int	modeShapeTargetIndex,
		bool	active
	)

Sets active status for a specific mode shape target
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

modeShapeTargetIndex	index of mode shape target
active	new active status of mode shape target

void NXOpen::CAE::ModelUpdateSolution::SetModeShapeTargetWeight	(	int	modeShapeTargetIndex,
		double	modeShapeWeight
	)

Sets weight for a specific mode shape target
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

modeShapeTargetIndex	index of mode shape target
modeShapeWeight	new weight value of mode shape target

void NXOpen::CAE::ModelUpdateSolution::UpdateDesignVariables

(

)

Update the design variable modeling objects
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateSolution::UpdateFiniteElementModel

(

)

Update the finite element model
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

---

The documentation for this class was generated from the following file:

• CAE_ModelUpdateSolution.hxx
