Represents a CAE::ModelCheck::ModelSetupCheckBuilder which can be used to check if the active CAE::SimSolution contains all the necessary items for the analysis, including elements, loads, constraints and materials. More...

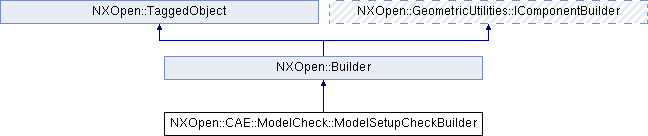

Inheritance diagram for NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder:

Public Member Functions
bool	CheckAllComponents ()
	Returns the value indicating whether to check all components associated with the assembly FEM in the model check, regardless of load status.

bool	CheckLabelConflicts ()
	Returns the value indicating whether to check labeling conflicts for node, element and coordindate system across component FEMS and reports the label range in which the conflict occurs Created in NX8.5.0.

bool	CheckUnconnectedComponent ()
	Returns the option specifying whether to check for component FEMs that are not connected Created in NX8.5.0.

bool	IsDetailedMessage ()
	Returns the value indicating whether to list comprehensive descriptions of any problems and suggest possible remedies.

NXString	ReportFileName ()
	Returns the full name of the report file.

void	SetCheckAllComponents (bool checkAllComponents)
	Sets the value indicating whether to check all components associated with the assembly FEM in the model check, regardless of load status.

void	SetCheckLabelConflicts (bool checkLabelConflicts)
	Sets the value indicating whether to check labeling conflicts for node, element and coordindate system across component FEMS and reports the label range in which the conflict occurs Created in NX8.5.0.

void	SetCheckUnconnectedComponent (bool checkUnconnectedComponent)
	Sets the option specifying whether to check for component FEMs that are not connected Created in NX8.5.0.

void	SetDetailedMessage (bool isDetailedMessage)
	Sets the value indicating whether to list comprehensive descriptions of any problems and suggest possible remedies.

void	SetReportFileName (const NXString &reportFileName)
	Sets the full name of the report file.

void	SetReportFileName (const char *reportFileName)
	Sets the full name of the report file.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ModelCheck::ModelSetupCheckBuilder which can be used to check if the active CAE::SimSolution contains all the necessary items for the analysis, including elements, loads, constraints and materials.

Also it could check label conficts and component connect status. Builder::Commit performs the check. The check result is written into a report file or listed in a seperate information window, along with an error summary for each topic
Created in NX8.5.0.

Member Function Documentation

bool NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::CheckAllComponents ( )

Returns the value indicating whether to check all components associated with the assembly FEM in the model check, regardless of load status.

If false, only the fully loaded components are included in the check
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::CheckLabelConflicts ( )

Returns the value indicating whether to check labeling conflicts for node, element and coordindate system across component FEMS and reports the label range in which the conflict occurs
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::CheckUnconnectedComponent ( )

Returns the option specifying whether to check for component FEMs that are not connected
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::IsDetailedMessage ( )

Returns the value indicating whether to list comprehensive descriptions of any problems and suggest possible remedies.

If false, only the simple descriptions of problems are listed
Created in NX8.5.0.

License requirements : None

NXString NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::ReportFileName ( )

Returns the full name of the report file.

If NULL, the report is listed in a separate listing window
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetCheckAllComponents ( bool checkAllComponents )

Sets the value indicating whether to check all components associated with the assembly FEM in the model check, regardless of load status.

If false, only the fully loaded components are included in the check
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

checkAllComponents checkallcomponents

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetCheckLabelConflicts ( bool checkLabelConflicts )

Sets the value indicating whether to check labeling conflicts for node, element and coordindate system across component FEMS and reports the label range in which the conflict occurs
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

checkLabelConflicts checklabelconflicts

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetCheckUnconnectedComponent ( bool checkUnconnectedComponent )

Sets the option specifying whether to check for component FEMs that are not connected
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

checkUnconnectedComponent checkunconnectedcomponent

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetDetailedMessage ( bool isDetailedMessage )

Sets the value indicating whether to list comprehensive descriptions of any problems and suggest possible remedies.

If false, only the simple descriptions of problems are listed
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

isDetailedMessage isdetailedmessage

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetReportFileName ( const NXString & reportFileName )

Sets the full name of the report file.

If NULL, the report is listed in a separate listing window
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

reportFileName reportfilename

void NXOpen::CAE::ModelCheck::ModelSetupCheckBuilder::SetReportFileName ( const char * reportFileName )

Sets the full name of the report file.

If NULL, the report is listed in a separate listing window
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

reportFileName reportfilename

The documentation for this class was generated from the following file:

CAE_ModelCheck_ModelSetupCheckBuilder.hxx
