Represents a CAE::ModelCheck::ElementMaterialOrientationCheckBuilder used to check the material orientation for shell and solid elements. More...

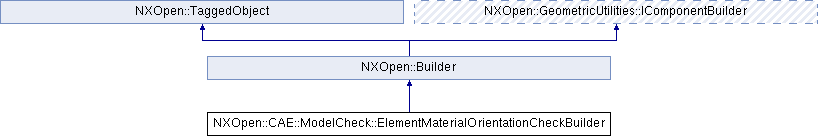

Inheritance diagram for NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder:

Public Types
enum	MaterialOrientationType { MaterialOrientationTypeShell, MaterialOrientationTypeSolidFirstDirection, MaterialOrientationTypeSolidSecondDirection, MaterialOrientationTypeSolidThirdDirection }
	the material orientation type More...

Public Member Functions
std::vector< NXOpen::Vector3d >	DoCheck (std::vector< NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType > &orientationType, std::vector< NXOpen::CAE::FEElement * > &elements)
	Calculates material orientation vector for input elements and returns the orientation vector result.

bool	GetCheckOrientation (NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType)
	Gets option value which indicates whether to check for the specified material orientation type.

NXOpen::NXColor *	GetOrientationColor (NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType)
	Gets display color of a specified material orientation type.

NXOpen::SelectTaggedObjectList *	SelectionList ()
	Returns the selected objects to be checked.

void	SetCheckOrientation (NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType, bool checkOrientation)
	Sets option value which indicates whether to check for the specified material orientation type Created in NX8.5.0.

void	SetOrientationColor (NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType, NXOpen::NXColor *color)
	Sets display color of a specified material orientation type Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ModelCheck::ElementMaterialOrientationCheckBuilder used to check the material orientation for shell and solid elements.

       Use @link Builder::Commit Builder::Commit@endlink  to calculate material orientation and to display
       an orientation vector for each input element.
       Use @link CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::DoCheck CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::DoCheck@endlink
       to calculate the material orientation for each input element and return the orientation vector
       result. If an element fails when calculating it's material orientation,
       the element will be displayed in red and outputed to listing information window.
    <br> To create a new instance of this class, use @link CAE::ModelCheckManager::CreateElementMaterialOrientationCheckBuilder  CAE::ModelCheckManager::CreateElementMaterialOrientationCheckBuilder @endlink  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType

the material orientation type

Enumerator:

MaterialOrientationTypeShell	the material orientation of shell element
MaterialOrientationTypeSolidFirstDirection	the first direction of solid element material orientation
MaterialOrientationTypeSolidSecondDirection	the second direction of solid element material orientation
MaterialOrientationTypeSolidThirdDirection	the third direction of solid element material orientation

Member Function Documentation

std::vector<NXOpen::Vector3d> NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::DoCheck	(	std::vector< NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType > &	orientationType,
		std::vector< NXOpen::CAE::FEElement * > &	elements
	)

Calculates material orientation vector for input elements and returns the orientation vector result.

Returns: material orientation vector
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

orientationType	orientationtype
elements	the elements associated with the orientation vectors

bool NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::GetCheckOrientation ( NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType )

Gets option value which indicates whether to check for the specified material orientation type.

Returns: Created in NX8.5.0.

License requirements : None

Parameters

orientationType orientationtype

NXOpen::NXColor* NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::GetOrientationColor ( NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType orientationType )

Gets display color of a specified material orientation type.

Returns: Created in NX8.5.0.

License requirements : None

Parameters

orientationType orientationtype

NXOpen::SelectTaggedObjectList* NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::SelectionList ( )

Returns the selected objects to be checked.

The objects must be CAE::Mesh or CAE::FEElement
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::SetCheckOrientation	(	NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType	orientationType,
		bool	checkOrientation
	)

Sets option value which indicates whether to check for the specified material orientation type
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

orientationType	orientationtype
checkOrientation	checkorientation

void NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::SetOrientationColor	(	NXOpen::CAE::ModelCheck::ElementMaterialOrientationCheckBuilder::MaterialOrientationType	orientationType,
		NXOpen::NXColor *	color
	)

Sets display color of a specified material orientation type
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

orientationType	orientationtype
color	color

The documentation for this class was generated from the following file:

CAE_ModelCheck_ElementMaterialOrientationCheckBuilder.hxx
