Represents a CAE::ModelCheck::ElementEdgeCheckBuilder which can be used to detect free element edges or non-manifold edges. More...

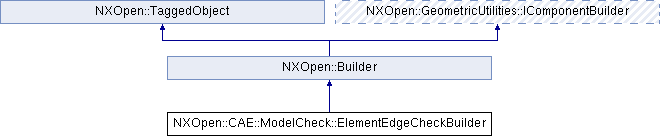

Inheritance diagram for NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder:

Classes
struct	EdgeDisplayStyle
	the display style of the edges detected More...

Public Types
enum	Scope { ScopeEntireModel, ScopeVisibleModel }
	the Scope over which the Computation of free/non-manifold edges with be done More...

Public Member Functions
bool	CheckFreeEdges ()
	Returns the value indicating whether to check free edges or not Created in NX8.5.0.

bool	CheckNonManifoldEdges ()
	Returns the value indicating whether to check non-manifold edges or not Created in NX8.5.0.

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::Scope	ComputationScope ()
	Returns the computation scope Created in NX8.5.0.

void	ExecuteCheck (std::vector< NXOpen::CAE::FEElemEdge * > &freeEdges, std::vector< NXOpen::CAE::FEElemEdge * > &nonManifoldEdges)
	Find free edges and non-manifold edges.

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle	FreeEdgeDisplayStyle ()
	Returns the display style for free edges detected Created in NX8.5.0.

void	HideInputMeshes (bool hideInputMeshes)
	Hides or unhides the input meshes Created in NX8.5.0.

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle	NonManifoldEdgeDisplayStyle ()
	Returns the displaying style for non-manifold edges detected Created in NX8.5.0.

NXOpen::SelectTaggedObjectList *	SelectionList ()
	Returns the selected objects to be checked.

void	SetCheckFreeEdges (bool checkFreeEdges)
	Sets the value indicating whether to check free edges or not Created in NX8.5.0.

void	SetCheckNonManifoldEdges (bool checkNonManifoldEdges)
	Sets the value indicating whether to check non-manifold edges or not Created in NX8.5.0.

void	SetComputationScope (NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::Scope computationScope)
	Sets the computation scope Created in NX8.5.0.

void	SetFreeEdgeDisplayStyle (const NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle &freeEdgesStyle)
	Sets the display style for free edges detected Created in NX8.5.0.

void	SetNonManifoldEdgeDisplayStyle (const NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle &nonManifoldEdgeStyle)
	Sets the displaying style for non-manifold edges detected Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ModelCheck::ElementEdgeCheckBuilder which can be used to detect free element edges or non-manifold edges.

        <br>
       A free edge is any Element edge that is not shared by any other element face (on
       either 2D or 3D elements ) within the defined scope of the check.
       A non-manifold edge is any Element edge that is shared more than 2 element faces (on
       either 2D or 3D elements ) within the defined scope of the check.
        <br>
       The computation scope @link ElementEdgeCheckBuilder::ComputationScope ElementEdgeCheckBuilder::ComputationScope @endlink and @link ElementEdgeCheckBuilder::SetComputationScope ElementEdgeCheckBuilder::SetComputationScope @endlink
       will affect on the checking result. The free element edges or non-manifold edges found will
       be displayed using the display setting @link CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle@endlink .
       You can execute checking through @link Builder::Commit Builder::Commit@endlink  or
       @link CAE::ModelCheck::ElementEdgeCheckBuilder::ExecuteCheck CAE::ModelCheck::ElementEdgeCheckBuilder::ExecuteCheck@endlink . Commiting the builder
       performs checking and displays the free edges and non-manifold edges in graphic window.

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::Scope

the Scope over which the Computation of free/non-manifold edges with be done

Enumerator:

ScopeEntireModel	Takes all elements in the model into account while computing.
ScopeVisibleModel	Only takes visible elements into account while computing.

Member Function Documentation

bool NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::CheckFreeEdges ( )

Returns the value indicating whether to check free edges or not
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::CheckNonManifoldEdges ( )

Returns the value indicating whether to check non-manifold edges or not
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::Scope NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::ComputationScope ( )

Returns the computation scope
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::ExecuteCheck	(	std::vector< NXOpen::CAE::FEElemEdge * > &	freeEdges,
		std::vector< NXOpen::CAE::FEElemEdge * > &	nonManifoldEdges
	)

Find free edges and non-manifold edges.

           The method @link Builder::Commit Builder::Commit@endlink  will also do the same thing,
           but display the element edges instead of returning them.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

freeEdges	free element edges
nonManifoldEdges	non-manifold element edges

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::FreeEdgeDisplayStyle ( )

Returns the display style for free edges detected
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::HideInputMeshes ( bool hideInputMeshes )

Hides or unhides the input meshes
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

hideInputMeshes hideinputmeshes

NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::NonManifoldEdgeDisplayStyle ( )

Returns the displaying style for non-manifold edges detected
Created in NX8.5.0.

License requirements : None

NXOpen::SelectTaggedObjectList* NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SelectionList ( )

Returns the selected objects to be checked.

The objects must be CAE::Mesh or CAE::FEElement
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SetCheckFreeEdges ( bool checkFreeEdges )

Sets the value indicating whether to check free edges or not
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

checkFreeEdges checkfreeedges

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SetCheckNonManifoldEdges ( bool checkNonManifoldEdges )

Sets the value indicating whether to check non-manifold edges or not
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

checkNonManifoldEdges checknonmanifoldedges

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SetComputationScope ( NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::Scope computationScope )

Sets the computation scope
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

computationScope computationscope

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SetFreeEdgeDisplayStyle ( const NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle & freeEdgesStyle )

Sets the display style for free edges detected
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

freeEdgesStyle freeedgesstyle

void NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::SetNonManifoldEdgeDisplayStyle ( const NXOpen::CAE::ModelCheck::ElementEdgeCheckBuilder::EdgeDisplayStyle & nonManifoldEdgeStyle )

Sets the displaying style for non-manifold edges detected
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

nonManifoldEdgeStyle nonmanifoldedgestyle

The documentation for this class was generated from the following file:

CAE_ModelCheck_ElementEdgeCheckBuilder.hxx
