Represents a CAE::ModelCheck::DuplicateNodesCheckBuilder to check for duplicate nodes within the candidate nodes. More...

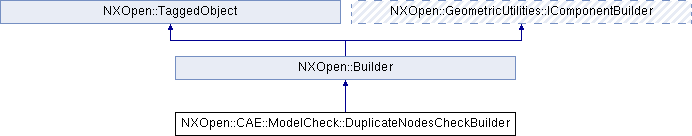

Inheritance diagram for NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder:

Classes
struct	DisplaySettings
	Represents the display settings data. More...

Public Types
enum	ListOption { ListOptionAll, ListOptionMergeable, ListOptionUnmergeable }
	Represents the duplicate nodes merging preference. More...

enum	MergePreference { MergePreferenceNone, MergePreferenceKeepHighLabel, MergePreferenceKeepLowLabel, MergePreferenceKeepSelected, MergePreferenceRemoveSelected }
	Represents the duplicate nodes merging preference. More...

Public Member Functions
NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DisplaySettings	DisplaySettingsData ()
	Returns the display settings for duplicate nodes Created in NX8.5.0.

int	DuplicateNodeGroupsCount ()
	Returns the duplicate nodes group count, each group contains nodes that are duplicates of each other and each group contains at least two duplicate nodes Created in NX8.5.0.

std::vector < NXOpen::CAE::FENode * >	GetDuplicateNodes (int groupIndex)
	Returns the duplicate nodes of specified group index.

void	IdentifyDuplicateNodes ()
	Calculates to find the duplicate nodes and display them in CAE::ModelCheck::DuplicateElementsCheckBuilder::DisplaySettings .

bool	IgnoreNodesConnectedToTinyEdges ()
	Returns a value indicating whether to ignore nodes connected to tiny edges Created in NX8.5.0.

bool	IgnoreNodesInSameMesh ()
	Returns a value indicating whether to ignore nodes in same mesh Created in NX8.5.0.

NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListOption	ListingType ()
	Returns an option indicating what information to be listed Created in NX8.5.0.

void	MergeDuplicateNodes ()
	Merges the duplicate nodes and clear all cached duplicate nodes in this builder.

bool	MergeOccurrenceNodes ()
	Returns a value indicating whether to merge occurrence nodes in afem context Created in NX8.5.0.

NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergePreference	Preference ()
	Returns the duplicate nodes merging preference Created in NX8.5.0.

NXOpen::SelectTaggedObjectList *	SelectionList ()
	Returns the selected objects for checking.

NXOpen::CAE::SelectFENodeList *	SelectPreferenceNodesList ()
	Returns the preference nodes select list for keep selected and remove selected options Created in NX8.5.0.

void	SetDisplaySettingsData (const NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DisplaySettings &displaySettings)
	Sets the display settings for duplicate nodes Created in NX8.5.0.

void	SetIgnoreNodesConnectedToTinyEdges (bool ignoreTinyEdgeNodes)
	Sets a value indicating whether to ignore nodes connected to tiny edges Created in NX8.5.0.

void	SetIgnoreNodesInSameMesh (bool ignoreSameMeshNodes)
	Sets a value indicating whether to ignore nodes in same mesh Created in NX8.5.0.

void	SetListingType (NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListOption listOption)
	Sets an option indicating what information to be listed Created in NX8.5.0.

void	SetMergeOccurrenceNodes (bool mergeOccurrenceNodes)
	Sets a value indicating whether to merge occurrence nodes in afem context Created in NX8.5.0.

void	SetPreference (NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergePreference mergePreference)
	Sets the duplicate nodes merging preference Created in NX8.5.0.

NXOpen::Expression *	Tolerance ()
	Returns the tolerance used to determine if the nodes are duplicates of each other Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ModelCheck::DuplicateNodesCheckBuilder to check for duplicate nodes within the candidate nodes.

        <br>
       Duplicate nodes are nodes which distance between each other is less than
       specific tolerance value and at least one duplicate node can be merged away.
        <br>
       The general workflow is:
       <ol>
       <li> Set the candidate nodes </li>
       <li> Set the check settings and display settings data </li>
       <li> Identify the duplicate nodes </li>
       <li> Set the preference option </li>
       <li> Merge duplicate nodes </li>
       </ol>
       You can merge duplicate nodes through @link Builder::Commit Builder::Commit@endlink  or
       @link CAE::ModelCheck::DuplicateNodesCheckBuilder::MergeDuplicateNodes CAE::ModelCheck::DuplicateNodesCheckBuilder::MergeDuplicateNodes@endlink .
       Commits the builder to merge duplicate nodes and update the mesh in graphic window.

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListOption

Represents the duplicate nodes merging preference.

Enumerator:

ListOptionAll	List all duplicate node pairs found.
ListOptionMergeable	List the duplicate node pairs mergeable.
ListOptionUnmergeable	List the duplicate node pairs unmergeable.

enum NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergePreference

Represents the duplicate nodes merging preference.

Enumerator:

MergePreferenceNone	No preference.
MergePreferenceKeepHighLabel	Keep the nodes with higher labels.
MergePreferenceKeepLowLabel	Keep the nodes with lower labels.
MergePreferenceKeepSelected	Keep the nodes specified in the node list CAE::ModelCheck::DuplicateNodesCheckBuilder::SelectPreferenceNodesList.
MergePreferenceRemoveSelected	Merge the nodes specified in the node list CAE::ModelCheck::DuplicateNodesCheckBuilder::SelectPreferenceNodesList.

Member Function Documentation

NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DisplaySettings NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DisplaySettingsData ( )

Returns the display settings for duplicate nodes
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DuplicateNodeGroupsCount ( )

Returns the duplicate nodes group count, each group contains nodes that are duplicates of each other and each group contains at least two duplicate nodes
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

std::vector<NXOpen::CAE::FENode *> NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::GetDuplicateNodes ( int groupIndex )

Returns the duplicate nodes of specified group index.

Returns: Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

groupIndex groupindex

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::IdentifyDuplicateNodes ( )

Calculates to find the duplicate nodes and display them in CAE::ModelCheck::DuplicateElementsCheckBuilder::DisplaySettings .

           The detected duplicate nodes are cached, to access the cached calculation result, you could use
           @link CAE::ModelCheck::DuplicateNodesCheckBuilder::DuplicateNodeGroupsCount CAE::ModelCheck::DuplicateNodesCheckBuilder::DuplicateNodeGroupsCount@endlink  and
           @link CAE::ModelCheck::DuplicateNodesCheckBuilder::GetDuplicateNodes CAE::ModelCheck::DuplicateNodesCheckBuilder::GetDuplicateNodes@endlink . The previous
           cached data will be cleaned automatically when you start a new identification.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

bool NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::IgnoreNodesConnectedToTinyEdges ( )

Returns a value indicating whether to ignore nodes connected to tiny edges
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::IgnoreNodesInSameMesh ( )

Returns a value indicating whether to ignore nodes in same mesh
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListOption NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListingType ( )

Returns an option indicating what information to be listed
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergeDuplicateNodes ( )

Merges the duplicate nodes and clear all cached duplicate nodes in this builder.

           The method @link Builder::Commit Builder::Commit@endlink  will also do the same thing. Duplicate nodes
           can only be merged when the context part of this builder is a @link CAE::BaseFemPart CAE::BaseFemPart@endlink .

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

bool NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergeOccurrenceNodes ( )

Returns a value indicating whether to merge occurrence nodes in afem context
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergePreference NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::Preference ( )

Returns the duplicate nodes merging preference
Created in NX8.5.0.

License requirements : None

NXOpen::SelectTaggedObjectList* NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SelectionList ( )

Returns the selected objects for checking.

The objects must be CAE::Mesh or CAE::FENode
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::SelectFENodeList* NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SelectPreferenceNodesList ( )

Returns the preference nodes select list for keep selected and remove selected options
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetDisplaySettingsData ( const NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::DisplaySettings & displaySettings )

Sets the display settings for duplicate nodes
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

displaySettings Display settings data

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetIgnoreNodesConnectedToTinyEdges ( bool ignoreTinyEdgeNodes )

Sets a value indicating whether to ignore nodes connected to tiny edges
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

ignoreTinyEdgeNodes ignoretinyedgenodes

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetIgnoreNodesInSameMesh ( bool ignoreSameMeshNodes )

Sets a value indicating whether to ignore nodes in same mesh
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

ignoreSameMeshNodes ignoresamemeshnodes

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetListingType ( NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::ListOption listOption )

Sets an option indicating what information to be listed
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

listOption listoption

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetMergeOccurrenceNodes ( bool mergeOccurrenceNodes )

Sets a value indicating whether to merge occurrence nodes in afem context
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

mergeOccurrenceNodes mergeoccurrencenodes

void NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::SetPreference ( NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::MergePreference mergePreference )

Sets the duplicate nodes merging preference
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

mergePreference Merge nodes preference

NXOpen::Expression* NXOpen::CAE::ModelCheck::DuplicateNodesCheckBuilder::Tolerance ( )

Returns the tolerance used to determine if the nodes are duplicates of each other
Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_ModelCheck_DuplicateNodesCheckBuilder.hxx
