NXOpen::CAE::MeshPointMultipleOnCurveBuilder Class Reference

Represents a CAE::MeshPointMultipleOnCurveBuilder
To create a new instance of this class, use CAE::MeshPointCollection::CreateMeshpointMultipleOnCurveBuilder

Created in NX5.0.2. More...

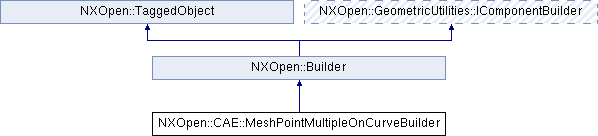

Inheritance diagram for NXOpen::CAE::MeshPointMultipleOnCurveBuilder:

Public Types
enum	PlacementType { PlacementTypeByNumber, PlacementTypeByDistance }
	the placement type types More...

Public Member Functions
bool	CreateOption ()
	Returns the create option Created in NX5.0.0.
NXOpen::Expression *	Distance ()
	Returns the distance Created in NX5.0.2.
NXOpen::SelectIBaseCurveList *	Edge ()
	Returns the node Created in NX5.0.2.
int	NumMeshpoints ()
	Returns the number of meshpoints Created in NX5.0.0.
NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementType	PlacementOption ()
	Returns the placement option Created in NX5.0.0.
void	SetCreateOption (bool createOption)
	Sets the create option Created in NX5.0.0.
void	SetNumMeshpoints (int numMeshpoints)
	Sets the number of meshpoints Created in NX5.0.0.
void	SetPlacementOption (NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementType placementOption)
	Sets the placement option Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::MeshPointMultipleOnCurveBuilder
To create a new instance of this class, use CAE::MeshPointCollection::CreateMeshpointMultipleOnCurveBuilder

Created in NX5.0.2.

Member Enumeration Documentation

enum NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementType

the placement type types

Enumerator:

PlacementTypeByNumber	by number
PlacementTypeByDistance	by distance

Member Function Documentation

bool NXOpen::CAE::MeshPointMultipleOnCurveBuilder::CreateOption

(

)

Returns the create option
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::MeshPointMultipleOnCurveBuilder::Distance

(

)

Returns the distance
Created in NX5.0.2.

License requirements : None

NXOpen::SelectIBaseCurveList* NXOpen::CAE::MeshPointMultipleOnCurveBuilder::Edge

(

)

Returns the node
Created in NX5.0.2.

License requirements : None

int NXOpen::CAE::MeshPointMultipleOnCurveBuilder::NumMeshpoints

(

)

Returns the number of meshpoints
Created in NX5.0.0.

License requirements : None

NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementType NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementOption

(

)

Returns the placement option
Created in NX5.0.0.

License requirements : None

void NXOpen::CAE::MeshPointMultipleOnCurveBuilder::SetCreateOption

(

bool

createOption

)

Sets the create option
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

createOption

createoption

void NXOpen::CAE::MeshPointMultipleOnCurveBuilder::SetNumMeshpoints

(

int

numMeshpoints

)

Sets the number of meshpoints
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

numMeshpoints

nummeshpoints

void NXOpen::CAE::MeshPointMultipleOnCurveBuilder::SetPlacementOption

(

NXOpen::CAE::MeshPointMultipleOnCurveBuilder::PlacementType

placementOption

)

Sets the placement option
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

placementOption

placementoption

---

The documentation for this class was generated from the following file:

• CAE_MeshPointMultipleOnCurveBuilder.hxx
