NXOpen::CAE::MappedResult Class Reference

Represents analysis results for a imported solver results file. More...

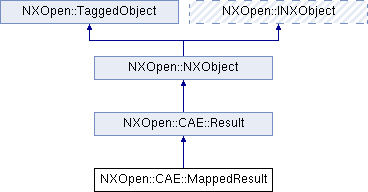

Inheritance diagram for NXOpen::CAE::MappedResult:
NXOpen::CAE::Result NXOpen::NXObject NXOpen::TaggedObject NXOpen::INXObject

Public Member Functions

NXString GetFilename ()
 Gets the mapped result filename used to create this object.

NXOpen::CAE::Result::Filetype GetFiletype ()
 Gets the mapped result filetype (CAE::Result::Filetype .

- Public Member Functions inherited from NXOpen::CAE::Result
int AskElementIndex (int elementLabel)
 Ask element index of a given element user label.

int AskElementLabel (int elementIndex)
 Ask element user label of a given element index.

void AskElementNodes (int elementIndex, std::vector< int > &nodeIndex)
 Asks for the nodes given an element
Created in NX6.0.2.

NXOpen::CAE::ElementTypes::Shape AskElementShape (int elementIndex)
 Ask element shape given an element index.

std::vector< NXString > AskIterations (int loadcaseIndex)
 Number of iterations available for a given loadcase and their descriptions Iteration index varies from 0 to N-1 (number of iterations)

std::vector< NXString > AskLoadcases ()
 Number of loadcases available in the result file and their descriptions.

std::vector< NXOpen::Point3d > AskNodeCoordinates (const std::vector< int > &nodeIndex)
 Asks for the coordinates of a node array.

int AskNodeIndex (int nodeLabel)
 Ask node index of a given node user label.

int AskNodeLabel (int nodeIndex)
 Ask node user label of a given node index.

int AskNumElements ()
 Ask number of elements in the model Element index varies from 0 to N-1 (number of elements)

void AskNumElementsOfGroup (NXOpen::CAE::Result::GroupContainer type, int groupIndex, std::vector< int > &elementIndex)
 Returns an array of elements indices for a given group Group index range from 0 to N-1 (number of groups)

int AskNumGroupsInContainer (NXOpen::CAE::Result::GroupContainer type)
 Returns the number of groups available in the model of type CAE::Result::GroupContainer .

int AskNumIterations (int loadcaseIndex)
 Number of iterations available for a given loadcase.

int AskNumLoadcases ()
 Number of loadcases available in the result file.

int AskNumNodes ()
 Ask number of nodes in the model Node index varies from 1 to N (number of nodes)

NXOpen::CAE::Result::DataType AskResultDataType (int loadcaseIndex, int iterationIndex, const NXOpen::CAE::Result::Type &resultType)
 Ask result datatype.

NXOpen::CAE::Result::LoadcaseValueType AskResultLoadcaseValue (int loadcaseIndex, NXString *description, double *value)
 Ask load case description, value type and value for the input load case.

void AskResultSections (int loadcaseIndex, int iterationIndex, const NXOpen::CAE::Result::Type &resultType, std::vector< int > &sectionNums)
 Ask element ids and corresponding number of sections at which result is defined
Created in NX6.0.3.

void AskResultTypes (int loadcaseIndex, int iterationIndex, std::vector< NXOpen::CAE::Result::Type > &types, std::vector< NXString > &description)
 Returns an array of result types and descriptions available for a given loadcase and iteration
Created in NX6.0.2.

NXString AskSectionDescription (NXOpen::CAE::Result::Section sect)
 Ask Section description provided section type.

NXOpen::TaggedObject * Find (const NXString &journalIdentifier)
 Returns a CAE::BaseLoadcase.

NXOpen::TaggedObject * Find (const char *journalIdentifier)
 Returns a CAE::BaseLoadcase.

std::vector
< NXOpen::CAE::BaseLoadcase * > 		GetLoadcases ()
 Ask the loadcases present in this result.

void GetResultCoordinateSystemDefinition (int id, NXOpen::CAE::Result::CoordinateSystem *type, NXOpen::Point3d *origin, NXOpen::Matrix3x3 *matrix)
 Returns definitions of a result coordinate system
Created in NX8.0.1.

std::vector< int > GetResultCoordinateSystems ()
 Returns coordinate system IDs defined in the result.

bool IsResultTypeComplex (int loadcaseIndex, int iterationIndex, const NXOpen::CAE::Result::Type &resultType)
 Ask whether a result type is complex or not.

- Public Member Functions inherited from NXOpen::NXObject
void DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
 Deletes all attributes of a specific type.

void DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
 Deletes all attributes of a specific type with the option to update or not.

void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
 Deletes an attribute by type and title.

void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
 Deletes an attribute by type and title.

void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
 Deletes an attribute by type and title with the option to update or not.

void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
 Deletes an attribute by type and title with the option to update or not.

void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
 Deletes the first attribute encountered with the given Type, Title and Index.

void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
 Deletes the first attribute encountered with the given Type, Title and Index.

void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
 Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
 Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject * FindObject (const char *journalIdentifier)
 Finds the NXObject with the given identifier as recorded in a journal.

std::vector
< NXOpen::NXObject::AttributeInformation > 		GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
 Gets all the attribute titles of a specific type.

bool GetBooleanUserAttribute (const NXString &title, int index)
 Gets a boolean attribute by Title and array Index.

bool GetBooleanUserAttribute (const char *title, int index)
 Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
 Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
 Gets a time attribute by Title and array Index.

int GetIntegerAttribute (const NXString &title)
 Gets an integer attribute by title.

int GetIntegerAttribute (const char *title)
 Gets an integer attribute by title.

int GetIntegerUserAttribute (const NXString &title, int index)
 Gets an integer attribute by Title and array Index.

int GetIntegerUserAttribute (const char *title, int index)
 Gets an integer attribute by Title and array Index.

double GetRealAttribute (const NXString &title)
 Gets a real attribute by title.

double GetRealAttribute (const char *title)
 Gets a real attribute by title.

double GetRealUserAttribute (const NXString &title, int index)
 Gets a real attribute by Title and array Index.

double GetRealUserAttribute (const char *title, int index)
 Gets a real attribute by Title and array Index.

NXString GetReferenceAttribute (const NXString &title)
 Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString GetReferenceAttribute (const char *title)
 Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString GetStringAttribute (const NXString &title)
 Gets a string attribute value by title.

NXString GetStringAttribute (const char *title)
 Gets a string attribute value by title.

NXString GetStringUserAttribute (const NXString &title, int index)
 Gets a string attribute by Title and array Index.

NXString GetStringUserAttribute (const char *title, int index)
 Gets a string attribute by Title and array Index.

NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
 Gets a time attribute by title.

NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
 Gets a time attribute by title.

NXString GetTimeUserAttribute (const NXString &title, int index)
 Gets a time attribute by Title and array Index.

NXString GetTimeUserAttribute (const char *title, int index)
 Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
 Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
 Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
 Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
 Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
 Determine the lock of the given attribute.

bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
 Determine the lock of the given attribute.

std::vector
< NXOpen::NXObject::AttributeInformation > 		GetUserAttributes ()
 Gets all the attributes that have been set on the given object.

std::vector
< NXOpen::NXObject::AttributeInformation > 		GetUserAttributes (bool includeUnset)
 Gets all the attributes that have been set on the given object.

std::vector
< NXOpen::NXObject::AttributeInformation > 		GetUserAttributes (bool includeUnset, bool addStringValues)
 Gets all the attributes that have been set on the given object.

std::vector< NXString > GetUserAttributesAsStrings ()
 Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
 Returns an array of objects from which this object presents attributes.

bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
 Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
 Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool IsOccurrence ()
 Returns whether this object is an occurrence or not.

virtual NXString JournalIdentifier ()
 Returns the identifier that would be recorded in a journal for this object.

virtual NXString Name ()
 Returns the custom name of the object.

virtual
NXOpen::Assemblies::Component * 		OwningComponent ()
 Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart * OwningPart ()
 Returns the owning part of this object
Created in NX3.0.0.

virtual void Print ()
 Prints a representation of this object to the system log file.

virtual NXOpen::INXObject * Prototype ()
 Returns the prototype of this object if it is an occurrence.

void SetAttribute (const NXString &title, int value)
 Creates or modifies an integer attribute.

void SetAttribute (const char *title, int value)
 Creates or modifies an integer attribute.

void SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
 Creates or modifies an integer attribute with the option to update or not.

void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
 Creates or modifies an integer attribute with the option to update or not.

void SetAttribute (const NXString &title, double value)
 Creates or modifies a real attribute.

void SetAttribute (const char *title, double value)
 Creates or modifies a real attribute.

void SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
 Creates or modifies a real attribute with the option to update or not.

void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
 Creates or modifies a real attribute with the option to update or not.

void SetAttribute (const NXString &title, const NXString &value)
 Creates or modifies a string attribute.

void SetAttribute (const char *title, const char *value)
 Creates or modifies a string attribute.

void SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
 Creates or modifies a string attribute with the option to update or not.

void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
 Creates or modifies a string attribute with the option to update or not.

void SetAttribute (const NXString &title)
 Creates or modifies a null attribute which is an attribute with a title and no value.

void SetAttribute (const char *title)
 Creates or modifies a null attribute which is an attribute with a title and no value.

void SetAttribute (const NXString &title, NXOpen::Update::Option option)
 Creates or modifies a null attribute with the option to update or not.

void SetAttribute (const char *title, NXOpen::Update::Option option)
 Creates or modifies a null attribute with the option to update or not.

void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
 Creates or modifies a boolean attribute with the option to update or not.

void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
 Creates or modifies a boolean attribute with the option to update or not.

virtual void SetName (const NXString &name)
 Sets the custom name of the object.

void SetName (const char *name)
 Sets the custom name of the object.

void SetReferenceAttribute (const NXString &title, const NXString &value)
 Creates or modifies a string attribute which uses a reference string.

void SetReferenceAttribute (const char *title, const char *value)
 Creates or modifies a string attribute which uses a reference string.

void SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
 Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
 Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void SetTimeAttribute (const NXString &title, const NXString &value)
 Creates or modifies a time attribute.

void SetTimeAttribute (const char *title, const char *value)
 Creates or modifies a time attribute.

void SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
 Creates or modifies a time attribute with the option to update or not.

void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
 Creates or modifies an attribute with the option to update or not.

void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
 Creates or modifies an integer attribute with the option to update or not.

void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
 Creates or modifies an integer attribute with the option to update or not.

void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
 Creates or modifies a real attribute with the option to update or not.

void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
 Creates or modifies a real attribute with the option to update or not.

void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
 Creates or modifies a string attribute with the option to update or not.

void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
 Creates or modifies a string attribute with the option to update or not.

void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
 Creates or modifies a null attribute with the option to update or not.

void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
 Creates or modifies a null attribute with the option to update or not.

void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
 Lock or unlock the given attribute.

void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
 Lock or unlock the given attribute.

- Public Member Functions inherited from NXOpen::TaggedObject
tag_t GetTag () const

<b>Deprecated</b>:<br>

   Use Tag instead.


tag_t Tag () const
 Returns the tag of this object.

- Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject * FindObject (const char *journalIdentifier)
 Finds the NXObject with the given identifier as recorded in a journal.

void SetName (const char *name)
 Sets the custom name of the object.


Additional Inherited Members

- Public Types inherited from NXOpen::CAE::Result
enum  BeamEnd { BeamEndNone = -1, BeamEndFore, BeamEndAft }
 Value type for beam end. More...

enum  Complex {
  ComplexReal, ComplexImaginary, ComplexAmplitude, ComplexSignedAmplitude,
  ComplexPhaseAngle
}
 Complex options. More...

enum  Component {
  ComponentScalar, ComponentX, ComponentY, ComponentZ,
  ComponentMagnitude, ComponentXx, ComponentYy, ComponentZz,
  ComponentXy, ComponentYz, ComponentZx, ComponentDeterminant,
  ComponentMean, ComponentMaximumShear, ComponentMinimumPrincipal, ComponentMiddlePrincipal,
  ComponentMaximumPrincipal, ComponentOctahedral, ComponentVonMises, ComponentMembraneXX,
  ComponentMembraneYY, ComponentMembraneXY, ComponentBendingXX, ComponentBendingYY,
  ComponentBendingXY, ComponentShearYZ, ComponentShearXZ, ComponentAxial,
  ComponentBendingS, ComponentBendingT, ComponentTorsion, ComponentShearS,
  ComponentShearT, ComponentSpringDashpotForce, ComponentSpringDashpotForceX, ComponentSpringDashpotForceY,
  ComponentSpringDashpotForceZ, ComponentSpringDashpotMomentX, ComponentSpringDashpotMomentY, ComponentSpringDashpotMomentZ,
  ComponentScalar1, ComponentScalar2, ComponentScalar3, ComponentScalar4,
  ComponentScalar5, ComponentScalar6
}
 Result components. More...

enum  ComputationType { ComputationTypeNone, ComputationTypeAverage, ComputationTypeSum }
 types for different way of computing nodal result from element nodal result. More...

enum  CoordinateSystem {
  CoordinateSystemAbsoluteRectangular, CoordinateSystemAbsoluteCylindrical, CoordinateSystemAbsoluteSpherical, CoordinateSystemWorkRectangular,
  CoordinateSystemWorkCylindrical, CoordinateSystemWorkSpherical, CoordinateSystemLocal, CoordinateSystemMaterial,
  CoordinateSystemSelectRectangular, CoordinateSystemSelectCylindrical, CoordinateSystemSelectSpherical
}
 Coordinate systems. More...

enum  CoordinateSystemSource { CoordinateSystemSourceNone, CoordinateSystemSourceModel, CoordinateSystemSourceResult }
 Source of selected coordinate system. More...

enum  DataType {
  DataTypeScalar, DataTypeVector, DataTypeSixVector, DataTypeTensor,
  DataTypeElementResultantShell, DataTypeElementResultantBeam, DataTypeElementResultantSpringDashpot, DataTypeSixScalars,
  DataTypeThreeScalars
}
 Result data types. More...

enum  DeformationScale { DeformationScaleModel, DeformationScaleAbsolute }
 Deformation scales. More...

enum  ElementValueCriterion { ElementValueCriterionAverage, ElementValueCriterionCentroid, ElementValueCriterionMaximum, ElementValueCriterionMinimum }
 Element-value criterions. More...

enum  Filetype {
  FiletypeNastran, FiletypeIdeas, FiletypeBud, FiletypeVki,
  FiletypeAbaqus, FiletypeAnsys, FiletypeMapped, FiletypeAfu,
  FiletypeRs2, FiletypeAbaqusOdb, FiletypeLsdynaState, FiletypePermasPost
}
 The result file type. More...

enum  GroupContainer {
  GroupContainerZeroDimensional, GroupContainerOneDimensional, GroupContainerTwoDimensional, GroupContainerThreeDimensional,
  GroupContainerConnector, GroupContainerOther
}
 Group Containers. More...

enum  LoadcaseValueType {
  LoadcaseValueTypeUnknown = -1, LoadcaseValueTypeFrequency, LoadcaseValueTypeLoadFactor, LoadcaseValueTypeNodeDOF,
  LoadcaseValueTypeLoadCase, LoadcaseValueTypeTime
}
 Value type for result load case. More...

enum  Location { LocationNodal, LocationElement, LocationElementNodal }
 Result locations. More...

enum  Quantity {
  QuantityDisplacement, QuantityRotation, QuantityTranslationalDeformation, QuantityRotationalDeformation,
  QuantityContactDisplacement, QuantityVelocity, QuantityAngularVelocity, QuantityAcceleration,
  QuantityAngularAcceleration, QuantityVonMisesStress, QuantityVonMisesStrain, QuantityStress,
  QuantityStrain, QuantityStrainEnergy, QuantityStrainEnergyDensity, QuantityStrainEnergyError,
  QuantityEquivalentPlasticStrain, QuantityEquivalentCreepStrain, QuantityKineticEnergy, QuantityKineticEnergyDensity,
  QuantityKineticEnergyPercent, QuantityThickness, QuantityTemperature, QuantityTemperatureGradient,
  QuantityHeatFlux, QuantityThermalEnergy, QuantityHeatFlow, QuantityAppliedForce,
  QuantityAppliedMoment, QuantityReactionForce, QuantityReactionMoment, QuantityReactionForceMPC,
  QuantityReactionMomentMPC, QuantityContactTraction, QuantityContactForce, QuantityElementForce,
  QuantityElementMoment, QuantityContactPressure, QuantityFatigueLife, QuantityFatigueDamage,
  QuantityFatigueSafetyFactor, QuantityStrengthSafetyFactor, QuantityElementError, QuantityElementResultants,
  QuantityElementStrainResultants, QuantityMaximumTemperature, QuantityMinimumTemperature, QuantityTimeAtMaximumTemperature,
  QuantityTimeAtMinimumTemperature, QuantityConductiveFlux, QuantityTotalHeatLoad, QuantityTotalHeatFlux,
  QuantityHeatResidual, QuantityConvectionCoefficient, QuantityViewFactorsSum, QuantityAdjustedVelocity,
  QuantityPressureOnPositiveSide, QuantityPressureOnNegativeSide, QuantityStaticPressure, QuantityTotalPressure,
  QuantityTurbulenceEnergy, QuantityTurbulenceDissipation, QuantityFluidDensity, QuantityShearStressOnPositiveSide,
  QuantityShearStressOnNegativeSide, QuantityRoughnessOnPositiveSide, QuantityRoughnessOnNegativeSide, QuantityYPlusOnPositiveSide,
  QuantityYPlusOnNegativeSide, QuantityMassFlux, QuantityFluidTemperature, QuantityConvectiveFlux,
  QuantityLocalConvectionCoefficient, QuantityBulkConvectionCoefficient, QuantityPressure, QuantityVelocityComponent,
  QuantityMassFlow, QuantityElementHeatLoad, QuantitySafetyFactor, QuantityShellResultants,
  QuantityBeamResultants, QuantitySpringDashpotResultant, QuantityShellStrainResultants, QuantityBeamStrainResultants,
  QuantitySpringDashpotStrainResultant, QuantityPlyFailureIndex, QuantityBondFailureIndex, QuantityPlyStress,
  QuantityPlyStrain, QuantityBondSafetyMargin, QuantityPlySafetyMargin, QuantityTorsionStress,
  QuantityGridPointForce, QuantityGridPointMoment, QuantityRadiativeSourceHeatFlux, QuantityRadiance,
  QuantityApparentTemperature, QuantityFluence, QuantityRCProduct, QuantityVoltage,
  QuantityPowerDensity, QuantityRelativeVelocity, QuantityWaterCumulation, QuantityTurbulentSpecificDissipation,
  QuantityRadiativeHeatFlux, QuantityCollimatedHeatFlux, QuantityDiffuseHeatFlux, QuantityInfraredHeatFlux,
  QuantityViewFactor, QuantityUnknown, QuantityMappedTemperature, QuantityMappedTemperatureGradient,
  QuantityRadiativeAbsorbedHeatFlux, QuantityRadiativeIncidentHeatFlux, QuantityRadiativeReflectedHeatFlux, QuantityRadiativeTransmittedHeatFlux,
  QuantityCollimatedAbsorbedHeatFlux, QuantityCollimatedIncidentHeatFlux, QuantityCollimatedReflectedHeatFlux, QuantityCollimatedTransmittedHeatFlux,
  QuantityDiffuseAbsorbedHeatFlux, QuantityDiffuseIncidentHeatFlux, QuantityDiffuseReflectedHeatFlux, QuantityDiffuseTransmittedHeatFlux,
  QuantityInfraredAbsorbedHeatFlux, QuantityInfraredIncidentHeatFlux, QuantityInfraredReflectedHeatFlux, QuantityInfraredTransmittedHeatFlux,
  QuantityAlbedoViewFactor, QuantityEarthViewFactor, QuantitySolarViewFactor, QuantitySpaceViewFactor,
  QuantityQuality, QuantityRadiationPatch, QuantityAbsorbedRadiation, QuantityIncidentRadiation,
  QuantityReflectedRadiation, QuantityTransmittedRadiation, QuantityRefractiveIndex, QuantityRefractiveIndexGradient,
  QuantityOpticalPathLength, QuantityLaserPower, QuantityPumpingPower, QuantityRadiativeFluxinSolid,
  QuantityFluidScalar, QuantityWallDistance, QuantityRelativeHumidity, QuantitySpecificHumidity,
  QuantityMachNumber, QuantityPredictedPercentDissatisfied, QuantityPercentMeanVote, QuantityVorticity,
  QuantityRelativePressure, QuantityAbsolutePressure, QuantityElementAspectRatio, QuantityElementDistortion,
  QuantityElementTaper, QuantityElementSize, QuantityElementJacobian, QuantityElementSkew,
  QuantityElementStretch, QuantityElementTwist, QuantityElementWarp, QuantityFluidMesh,
  QuantityNetRadiativeLoad, QuantityNetRadiativeFlux, QuantityRadiosityLoad, QuantityRadiosityFlux,
  QuantityIrradianceLoad, QuantityIrradianceFlux, QuantityParticleDensity, QuantityParticleMassDensity,
  QuantityAcousticPowerDensity, QuantityReynoldsNumber, QuantityBondStrengthRatio, QuantityPlyStrengthRatio,
  QuantityFailureIndex, QuantityContactInitialSeparation, QuantityContactFinalSeparation, QuantityGasketPressue,
  QuantityGasketClosure, QuantityGasketPlasticClosure, QuantityGasketStressYield, QuantityGasketStatus,
  QuantityContactPenetration, QuantityContactStatus, QuantityContactGapDistance, QuantityStressLevelCrossingRate,
  QuantityVonMisesStressLevelCrossingRate, QuantityVonMisesStrainLevelCrossingRate, QuantityDisplacementLevelCrossingRate, QuantityRotationLevelCrossingRate,
  QuantityVelocityLevelCrossingRate, QuantityAngularVelocityLevelCrossingRate, QuantityAccelerationLevelCrossingRate, QuantityAngularAccelerationLevelCrossingRate,
  QuantityElementForceLevelCrossingRate, QuantityElementMomentLevelCrossingRate, QuantityElementResultantsLevelCrossingRate, QuantityShellResultantsLevelCrossingRate,
  QuantityBeamResultantsLevelCrossingRate, QuantitySpringDashpotResultantsLevelCrossingRate, QuantityElementStrainResultantsLevelCrossingRate, QuantityShellStrainResultantsLevelCrossingRate,
  QuantityBeamStrainResultantsLevelCrossingRate, QuantitySpringDashpotStrainResultantsLevelCrossingRate, QuantityXDisplacement, QuantityYDisplacement,
  QuantityZDisplacement, QuantityLevelCrossingRateXDisplacement, QuantityLevelCrossingRateYDisplacement, QuantityLevelCrossingRateZDisplacement,
  QuantityXRotation, QuantityYRotation, QuantityZRotation, QuantityLevelCrossingRateXRotation,
  QuantityLevelCrossingRateYRotation, QuantityLevelCrossingRateZRotation, QuantityXAcceleration, QuantityYAcceleration,
  QuantityZAcceleration, QuantityLevelCrossingRateXAcceleration, QuantityLevelCrossingRateYAcceleration, QuantityLevelCrossingRateZAcceleration,
  QuantityXAngularAcceleration, QuantityYAngularAcceleration, QuantityZAngularAcceleration, QuantityLevelCrossingRateXAngularAcceleration,
  QuantityLevelCrossingRateYAngularAcceleration, QuantityLevelCrossingRateZAngularAcceleration, QuantityXXStress, QuantityYYStress,
  QuantityZZStress, QuantityXYStress, QuantityYZStress, QuantityZXStress,
  QuantityLevelCrossingRateXXStress, QuantityLevelCrossingRateYYStress, QuantityLevelCrossingRateZZStress, QuantityLevelCrossingRateXYStress,
  QuantityLevelCrossingRateYZStress, QuantityLevelCrossingRateZXStress, QuantityXElementForce, QuantityYElementForce,
  QuantityZElementForce, QuantityRXElementForce, QuantityRYElementForce, QuantityRZElementForce,
  QuantityLevelCrossingRateXElementForce, QuantityLevelCrossingRateYElementForce, QuantityLevelCrossingRateZElementForce, QuantityLevelCrossingRateRXElementForce,
  QuantityLevelCrossingRateRYElementForce, QuantityLevelCrossingRateRZElementForce, QuantityNXXShellResultant, QuantityNYYShellResultant,
  QuantityNXYShellResultant, QuantityMXXShellResultant, QuantityMYYShellResultant, QuantityMXYShellResultant,
  QuantityQXZShellResultant, QuantityQYZShellResultant, QuantityLevelCrossingRateNXXShellResultant, QuantityLevelCrossingRateNYYShellResultant,
  QuantityLevelCrossingRateNXYShellResultant, QuantityLevelCrossingRateMXXShellResultant, QuantityLevelCrossingRateMYYShellResultant, QuantityLevelCrossingRateMXYShellResultant,
  QuantityLevelCrossingRateQXZShellResultant, QuantityLevelCrossingRateQYZShellResultant, QuantityYPlus, QuantityThermalConductivity,
  QuantityThermalStrain, QuantityGapThickness, QuantityTotalForce, QuantityTotalMoment,
  QuantityTotalResidualForce, QuantityTotalResidualMoment, QuantityGridPointReactionForce, QuantityGridPointReactionMoment,
  QuantityGridPointAppliedForce, QuantityGridPointAppliedMoment, QuantityGlueForce, QuantityGluePressure,
  QuantityGlueTraction, QuantityEnthalpy, QuantityEnthalpyRate, QuantityNonlinearStress,
  QuantityNonlinearStrain, QuantityBondStress, QuantityBondStrain, QuantitySolidLaminateFailureIndex,
  QuantitySolidInterLaminarFailureIndex, QuantityExternalAppliedHeatFlow, QuantityOptimizationDisplacement, QuantityDisplacementMagnitude,
  QuantityFractionVolume, QuantityFilmThickness, QuantityTime, QuantitySurfaceEmissivity,
  QuantityRootMeanSquareDisplacement, QuantityRootMeanSquareAcceleration, QuantityRootMeanSquareStress, QuantityZeroCrossingsDisplacement,
  QuantityZeroCrossingsAcceleration, QuantityZeroCrossingsStress, QuantitySoundPressure, QuantityRootMeanSquareRotation,
  QuantityRootMeanSquareVelocity, QuantityRootMeanSquareAngularVelocity, QuantityRootMeanSquareAngularAcceleration, QuantityRootMeanSquareAppliedForce,
  QuantityRootMeanSquareAppliedMoment, QuantityRootMeanSquareVonMisesStress, QuantityZeroCrossingseRotation, QuantityZeroCrossingsVelocity,
  QuantityZeroCrossingseAngularVelocity, QuantityZeroCrossingseAngularAcceleration, QuantityZeroCrossingseAppliedForce, QuantityZeroCrossingseAppliedMoment,
  QuantityRootMeanSquareStrain, QuantityZeroCrossingsStrain, QuantityPlasticStrain, QuantityLogarithmicStrain,
  QuantityTensionSafetyFactor, QuantityCompressionSafetyFactor, QuantityRootMeanSquareElementResultant, QuantityZeroCrossingsElementResultant,
  QuantityRootMeanSquareShellResultants, QuantityRootMeanSquareBeamResultants, QuantityRootMeanSquareSpringDashpotResultant, QuantityZeroCrossingsShellResultants,
  QuantityZeroCrossingsBeamResultants, QuantityZeroCrossingsSpringDashpotResultant, QuantityXReactionForce, QuantityYReactionForce,
  QuantityZReactionForce, QuantityXReactionMoment, QuantityYReactionMoment, QuantityZReactionMoment,
  QuantityLumpedMass, QuantityDistributedMassPerLength, QuantityDistributedMassPerArea, QuantityTemperatureLoad,
  QuantityTorsionStrain, QuantityAxialStress, QuantityAxialStrain, QuantityLength,
  QuantitySurfaceAbsoptivity, QuantityTurbulentIntensity, QuantityVaporToDryAirMassRatio, QuantityTracerFluidMassFraction,
  QuantityTotalMixtureMassFractions, QuantityMass, QuantitySurfaceDensity, QuantityEmissivityValue,
  QuantityEffectiveEmissivity, QuantityVolumeFlow, QuantityCoefficientPerLength, QuantityPermeability,
  QuantityThermalConductance, QuantityThermalResistance, QuantityConductancePerLength, QuantitySeebeckCoefficient,
  QuantityElectricalResistivity, QuantityElectricalResistance, QuantityCurrent, QuantityPower,
  QuantityHeatCapacity, QuantityTemperatureDifference, QuantityMassDensity, QuantityPrincipalStress,
  QuantityRootMeanSquareTorsionStress, QuantityZeroCrossingsTorsionStress, QuantityRootMeanSquareTorsionStrain, QuantityZeroCrossingsTorsionStrain,
  QuantityRootMeanSquareAxialStress, QuantityZeroCrossingsAxialStress, QuantityRootMeanSquareAxialStrain, QuantityZeroCrossingsAxialStrain,
  QuantityRootMeanSquareReactionForceMPC, QuantityZeroCrossingsReactionForceMPC, QuantityRootMeanSquareReactionMomentMPC, QuantityZeroCrossingsReactionMomentMPC,
  QuantityMolecularDiffusionCoefficient, QuantityAngle, QuantityPressureDropToVelocityRatio, QuantityRootMeanSquareReactionForce,
  QuantityZeroCrossingsReactionForce, QuantityRootMeanSquareReactionMoment, QuantityZeroCrossingsReactionMoment, QuantityRootMeanSquareElementResultantStrain,
  QuantityZeroCrossingsElementResultantStrain, QuantityRootMeanSquareShellStrainResultant, QuantityZeroCrossingsShellStrainResultant, QuantityRootMeanSquareBeamStrainResultant,
  QuantityZeroCrossingsBeamStrainResultant, QuantityRootMeanSquareSpringDashpotStrainResultant, QuantityZeroCrossingsSpringDashpotStrainResultant, QuantityElasticStrain
}
 Result quantities. More...

enum  Section {
  SectionNotApplicable, SectionTop, SectionMiddle, SectionBottom,
  SectionMinimum, SectionMaximum, SectionStressRecoveryPointC, SectionStressRecoveryPointD,
  SectionStressRecoveryPointE, SectionStressRecoveryPointF, SectionAll, SectionBending
}
 Result sections. More...

enum  SolutionType {
  SolutionTypeUnknown, SolutionTypeStatic, SolutionTypeVibration, SolutionTypeBuckling,
  SolutionTypeTransient, SolutionTypeFreqresponse, SolutionTypeComplexeigen
}
 The result solution type. More...

enum  TensorDerivedAbsolute { TensorDerivedAbsoluteAllComponents, TensorDerivedAbsoluteDerivedComponent }
 This enumeration defines the methods that can be used when calculating absolute values for the following derived components of CAE::Result::DataTypeTensor CAE::Result::ComponentDeterminant , CAE::Result::ComponentMean , CAE::Result::ComponentMaximumShear , CAE::Result::ComponentMinimumPrincipal , CAE::Result::ComponentMiddlePrincipal , CAE::Result::ComponentMaximumPrincipal , CAE::Result::ComponentOctahedral. More...


Detailed Description

Represents analysis results for a imported solver results file.

   Use @link CAE::ResultManager CAE::ResultManager@endlink  to create an
    @link CAE::MappedResult CAE::MappedResult@endlink
<br> An instance of this class can not be obtained  <br>


Created in NX9.0.0.

Member Function Documentation

NXString NXOpen::CAE::MappedResult::GetFilename ( )

Gets the mapped result filename used to create this object.

Returns

Created in NX9.0.0.

License requirements : None
NXOpen::CAE::Result::Filetype NXOpen::CAE::MappedResult::GetFiletype ( )

Gets the mapped result filetype (CAE::Result::Filetype .

Returns

Created in NX9.0.0.

License requirements : None
The documentation for this class was generated from the following file:
Copyright 2013 Siemens Product Lifecycle Management Software Inc. All Rights Reserved.
