Represents a CAE::LaminateSpreadsheetReport builder
There is no kf creator. More...

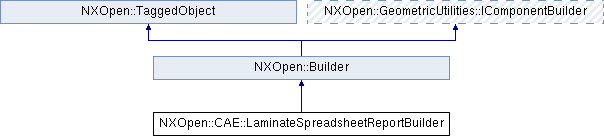

Inheritance diagram for NXOpen::CAE::LaminateSpreadsheetReportBuilder:

Public Types
enum	CoordinateSystemType { CoordinateSystemTypePly, CoordinateSystemTypeLaminate }
	Coordinate system to use for ply stresses, ply failure indices, ply strength ratios and ply margins of safety calculation. More...

enum	EnvelopeRule { EnvelopeRuleMaxMin, EnvelopeRuleMin, EnvelopeRuleMax, EnvelopeRuleAbsMax, EnvelopeRuleAbsMin }
	Result enveloping rules. More...

enum	FailureModeType { FailureModeTypeInPlanePly, FailureModeTypeInterlaminar, FailureModeTypeBoth }
	Failure indices mode. More...

enum	FilteringType { FilteringTypeNone, FilteringTypeStressXX, FilteringTypeStressYY, FilteringTypeStressZZ, FilteringTypeStressXY, FilteringTypeStressZX, FilteringTypeStressYZ, FilteringTypeStressMaxP, FilteringTypeStressMinP, FilteringTypeStressMaxS, FilteringTypeStrainXX, FilteringTypeStrainYY, FilteringTypeStrainZZ, FilteringTypeStrainXY, FilteringTypeStrainZX, FilteringTypeStrainYZ, FilteringTypeStrainMaxP, FilteringTypeStrainMinP, FilteringTypeStrainMaxS, FilteringTypePlyFailureIndex, FilteringTypePlyStrengthRatio, FilteringTypePlyMarginofSafety, FilteringTypeBondFailureIndex, FilteringTypeBondStrengthRatio, FilteringTypeBondMarginofSafety }
	Filtering rule for the spreadsheet post report. More...

enum	PlyLocationType { PlyLocationTypeBottom, PlyLocationTypeMiddle, PlyLocationTypeTop, PlyLocationTypeAll }
	(Deprecated) Options for ply stresses calculation when using the solver shell stress resultant as an input for the advance report. More...

enum	SolverInputType { SolverInputTypeShellStress, SolverInputTypePlyStress }
	Solver input type. More...

enum	SortingType { SortingTypeElementId, SortingTypePlyId, SortingTypeStressXX, SortingTypeStressYY, SortingTypeStressZZ, SortingTypeStressXY, SortingTypeStressZX, SortingTypeStressYZ, SortingTypeStressMaxP, SortingTypeStressMinP, SortingTypeStressMaxS, SortingTypeStrainXX, SortingTypeStrainYY, SortingTypeStrainZZ, SortingTypeStrainXY, SortingTypeStrainZX, SortingTypeStrainYZ, SortingTypeStrainMaxP, SortingTypeStrainMinP, SortingTypeStrainMaxS, SortingTypePlyFailureIndex, SortingTypePlyStrengthRatio, SortingTypePlyMarginofSafety, SortingTypeBondFailureIndex, SortingTypeBondStrengthRatio, SortingTypeBondMarginofSafety }
	Sorting rule for the spreadsheet post report. More...

enum	SortOrderType { SortOrderTypeAscending, SortOrderTypeDescending }
	Sorting order : acending or descending. More...

enum	ThreshType { ThreshTypeAboveTreshold, ThreshTypeBelowTreshold }
	The type of threshold used to filter results. More...

Public Member Functions
bool	AbsValueFilter ()
	Returns the absolute value filtering option Created in NX8.0.0.

bool	AbsValueSort ()
	Returns the absolute value sorting option Created in NX8.0.0.

bool	DetailedOutput ()
	Returns the detailed output display Created in NX8.0.0.

NXOpen::CAE::LaminateElementFilterBuilder *	ElementFilter ()
	Returns the element filter Created in NX8.0.0.

bool	FailureIndex ()
	Returns the failure index Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule	FailureIndexRule ()
	Returns the failure index summary table enveloping rule Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureModeType	FailureMode ()
	Returns the failure mode Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilteringType	FilterType ()
	Returns the filter type to use for detailed output Created in NX8.0.0.

NXString	Name ()
	Returns the name of the spreadsheet report Created in NX8.0.0.

bool	PlyBottom ()
	Returns the state of the ply stress calculation at the bottom of each ply Created in NX8.5.0.

NXOpen::CAE::LaminatePlyFilterBuilder *	PlyFilter ()
	Returns the ply filter Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocationType	PlyLocation ()
	Returns the ply location option for ply stresses calculation from the solver shell stress resultant

bool	PlyMiddle ()
	Returns the state of the ply stress calculation at the middle of each ply Created in NX8.5.0.

bool	PlyStrainOutput ()
	Returns the ply strains output control Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule	PlyStrainRule ()
	Returns the ply strains summary table enveloping rule Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::CoordinateSystemType	PlyStressCoordSys ()
	Returns the ply stresses and strains coordinate system Created in NX8.0.0.

bool	PlyStressMaxP ()
	Returns the ply maximum principal stress and/or strain Created in NX8.0.0.

bool	PlyStressMaxS ()
	Returns the ply maximum shear stress and/or strain Created in NX8.0.0.

bool	PlyStressMinP ()
	Returns the ply minimum principal stress and/or strain Created in NX8.0.0.

bool	PlyStressOutput ()
	Returns the ply stresses output control Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule	PlyStressRule ()
	Returns the ply stresses summary table enveloping rule Created in NX8.0.0.

bool	PlyStressXX ()
	Returns the ply stress and/or strain XX component Created in NX8.0.0.

bool	PlyStressXY ()
	Returns the ply stress and/or strain XY component Created in NX8.0.0.

bool	PlyStressYY ()
	Returns the ply stress and/or strain YY component Created in NX8.0.0.

bool	PlyStressYZ ()
	Returns the ply stress and/or strain YZ component Created in NX8.0.0.

bool	PlyStressZX ()
	Returns the ply stress and/or strain ZX component Created in NX8.0.0.

bool	PlyStressZZ ()
	Returns the ply stress and/or strain ZZ component Created in NX8.0.0.

bool	PlyTop ()
	Returns the state of the ply stress calculation at the top of each ply Created in NX8.5.0.

double	SafetyFactor ()
	Returns the safety factor Created in NX8.0.0.

bool	SafetyMargin ()
	Returns the margin of safety Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule	SafetyMarginRule ()
	Returns the strength ratio summary table enveloping rule Created in NX8.0.0.

void	SetAbsValueFilter (bool absValueFilter)
	Sets the absolute value filtering option Created in NX8.0.0.

void	SetAbsValueSort (bool absValueSort)
	Sets the absolute value sorting option Created in NX8.0.0.

void	SetDetailedOutput (bool detailedOutput)
	Sets the detailed output display Created in NX8.0.0.

void	SetFailureIndex (bool failureIndex)
	Sets the failure index Created in NX8.0.0.

void	SetFailureIndexRule (NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule failureIndexRule)
	Sets the failure index summary table enveloping rule Created in NX8.0.0.

void	SetFailureMode (NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureModeType failureMode)
	Sets the failure mode Created in NX8.0.0.

void	SetFilterType (NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilteringType filterType)
	Sets the filter type to use for detailed output Created in NX8.0.0.

void	SetName (const NXString &name)
	Sets the name of the spreadsheet report Created in NX8.0.0.

void	SetName (const char *name)
	Sets the name of the spreadsheet report Created in NX8.0.0.

void	SetPlyBottom (bool plyBottom)
	Sets the state of the ply stress calculation at the bottom of each ply Created in NX8.5.0.

void	SetPlyLocation (NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocationType plyLocation)
	Sets the ply location option for ply stresses calculation from the solver shell stress resultant

void	SetPlyMiddle (bool plyMiddle)
	Sets the state of the ply stress calculation at the middle of each ply Created in NX8.5.0.

void	SetPlyStrainOutput (bool plyStrainOutput)
	Sets the ply strains output control Created in NX8.0.0.

void	SetPlyStrainRule (NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule plyStrainRule)
	Sets the ply strains summary table enveloping rule Created in NX8.0.0.

void	SetPlyStressCoordSys (NXOpen::CAE::LaminateSpreadsheetReportBuilder::CoordinateSystemType plyStressCoordSys)
	Sets the ply stresses and strains coordinate system Created in NX8.0.0.

void	SetPlyStressMaxP (bool plyStressMaxP)
	Sets the ply maximum principal stress and/or strain Created in NX8.0.0.

void	SetPlyStressMaxS (bool plyStressMaxS)
	Sets the ply maximum shear stress and/or strain Created in NX8.0.0.

void	SetPlyStressMinP (bool plyStressMinP)
	Sets the ply minimum principal stress and/or strain Created in NX8.0.0.

void	SetPlyStressOutput (bool plyStressOutput)
	Sets the ply stresses output control Created in NX8.0.0.

void	SetPlyStressRule (NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule plyStressRule)
	Sets the ply stresses summary table enveloping rule Created in NX8.0.0.

void	SetPlyStressXX (bool plyStressXX)
	Sets the ply stress and/or strain XX component Created in NX8.0.0.

void	SetPlyStressXY (bool plyStressXY)
	Sets the ply stress and/or strain XY component Created in NX8.0.0.

void	SetPlyStressYY (bool plyStressYY)
	Sets the ply stress and/or strain YY component Created in NX8.0.0.

void	SetPlyStressYZ (bool plyStressYZ)
	Sets the ply stress and/or strain YZ component Created in NX8.0.0.

void	SetPlyStressZX (bool plyStressZX)
	Sets the ply stress and/or strain ZX component Created in NX8.0.0.

void	SetPlyStressZZ (bool plyStressZZ)
	Sets the ply stress and/or strain ZZ component Created in NX8.0.0.

void	SetPlyTop (bool plyTop)
	Sets the state of the ply stress calculation at the top of each ply Created in NX8.5.0.

void	SetSafetyFactor (double safetyFactor)
	Sets the safety factor Created in NX8.0.0.

void	SetSafetyMargin (bool safetyMargin)
	Sets the margin of safety Created in NX8.0.0.

void	SetSafetyMarginRule (NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule safetyMarginRule)
	Sets the strength ratio summary table enveloping rule Created in NX8.0.0.

void	SetShellResultantFx (bool shellResultantFx)
	Sets the shell stress resultant Fx component Created in NX8.0.0.

void	SetShellResultantFxy (bool shellResultantFxy)
	Sets the shell stress resultant Fxy component Created in NX8.0.0.

void	SetShellResultantFy (bool shellResultantFy)
	Sets the shell stress resultant Fy component Created in NX8.0.0.

void	SetShellResultantMx (bool shellResultantMx)
	Sets the shell stress resultant Mx component Created in NX8.0.0.

void	SetShellResultantMxy (bool shellResultantMxy)
	Sets the shell stress resultant Mxy component Created in NX8.0.0.

void	SetShellResultantMy (bool shellResultantMy)
	Sets the shell stress resultant My component Created in NX8.0.0.

void	SetShellResultantQx (bool shellResultantQx)
	Sets the shell stress resultant Qx component Created in NX8.0.0.

void	SetShellResultantQy (bool shellResultantQy)
	Sets the shell stress resultant Qy component Created in NX8.0.0.

void	SetSolverInput (NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInputType solverInput)
	Sets the solver input Created in NX9.0.0.

void	SetSolverPlyStress (bool solverPlyStress)
	Sets the solver ply stresses

void	SetSolverShellResultant (bool solverShellResultant)
	Sets the solver shell stress resultant

void	SetSortOrder (NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrderType sortOrder)
	Sets the sorting order Created in NX8.0.0.

void	SetSortType (NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortingType sortType)
	Sets the sorting criteria Created in NX8.0.0.

void	SetStrengthRatio (bool strengthRatio)
	Sets the strength ratio Created in NX8.0.0.

void	SetStrengthRatioRule (NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule strengthRatioRule)
	Sets the strength ratio summary table enveloping rule Created in NX8.0.0.

void	SetThresholdType (NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThreshType thresholdType)
	Sets the filtering threshold type Created in NX8.0.0.

void	SetThresholdValue (double thresholdValue)
	Sets the filtering threshold value Created in NX8.0.0.

bool	ShellResultantFx ()
	Returns the shell stress resultant Fx component Created in NX8.0.0.

bool	ShellResultantFxy ()
	Returns the shell stress resultant Fxy component Created in NX8.0.0.

bool	ShellResultantFy ()
	Returns the shell stress resultant Fy component Created in NX8.0.0.

bool	ShellResultantMx ()
	Returns the shell stress resultant Mx component Created in NX8.0.0.

bool	ShellResultantMxy ()
	Returns the shell stress resultant Mxy component Created in NX8.0.0.

bool	ShellResultantMy ()
	Returns the shell stress resultant My component Created in NX8.0.0.

bool	ShellResultantQx ()
	Returns the shell stress resultant Qx component Created in NX8.0.0.

bool	ShellResultantQy ()
	Returns the shell stress resultant Qy component Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInputType	SolverInput ()
	Returns the solver input Created in NX9.0.0.

bool	SolverPlyStress ()
	Returns the solver ply stresses

bool	SolverShellResultant ()
	Returns the solver shell stress resultant

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrderType	SortOrder ()
	Returns the sorting order Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortingType	SortType ()
	Returns the sorting criteria Created in NX8.0.0.

bool	StrengthRatio ()
	Returns the strength ratio Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule	StrengthRatioRule ()
	Returns the strength ratio summary table enveloping rule Created in NX8.0.0.

NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThreshType	ThresholdType ()
	Returns the filtering threshold type Created in NX8.0.0.

double	ThresholdValue ()
	Returns the filtering threshold value Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::LaminateSpreadsheetReport builder
There is no kf creator.

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::CoordinateSystemType

Coordinate system to use for ply stresses, ply failure indices, ply strength ratios and ply margins of safety calculation.

Enumerator:

CoordinateSystemTypePly	Ply coordinate system.
CoordinateSystemTypeLaminate	Laminate coordinate system.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule

Result enveloping rules.

When there is more than one solutions or loadcases, defines which result to keep and display in the graphical report

Enumerator:

EnvelopeRuleMaxMin	Keep minimum and maximum values.
EnvelopeRuleMin	Keep minimum values.
EnvelopeRuleMax	Keep maximum values.
EnvelopeRuleAbsMax	Keep maximum absolute values.
EnvelopeRuleAbsMin	Keep minimum absolute values.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureModeType

Failure indices mode.

NXLC can compute in-plane ply failure indices and/or interlaminar failure indices

Enumerator:

FailureModeTypeInPlanePly	Ply failure index.
FailureModeTypeInterlaminar	Bonding failure index.
FailureModeTypeBoth	Both failure index type.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilteringType

Filtering rule for the spreadsheet post report.

Enumerator:

FilteringTypeNone	Don't filter any values.
FilteringTypeStressXX	Filter values based on Stress XX component.
FilteringTypeStressYY	Filter values based on Stress YY component.
FilteringTypeStressZZ	Filter values based on Stress ZZ component.
FilteringTypeStressXY	Filter values based on Stress XY component.
FilteringTypeStressZX	Filter values based on Stress ZX component.
FilteringTypeStressYZ	Filter values based on Stress YZ component.
FilteringTypeStressMaxP	Filter values based on the maximum principal stress.
FilteringTypeStressMinP	Filter values based on the minimum principal stress.
FilteringTypeStressMaxS	Filter values based on the maximum shear stress.
FilteringTypeStrainXX	Filter values based on Strain XX component.
FilteringTypeStrainYY	Filter values based on Strain YY component.
FilteringTypeStrainZZ	Filter values based on Strain ZZ component.
FilteringTypeStrainXY	Filter values based on Strain XY component.
FilteringTypeStrainZX	Filter values based on Strain ZX component.
FilteringTypeStrainYZ	Filter values based on Strain YZ component.
FilteringTypeStrainMaxP	Filter values based on the maximum principal strain.
FilteringTypeStrainMinP	Filter values based on the minimum principal strain.
FilteringTypeStrainMaxS	Filter values based on the maximum shear strain.
FilteringTypePlyFailureIndex	Filter values based on the ply failure index.
FilteringTypePlyStrengthRatio	Filter values based on the ply strength ratio.
FilteringTypePlyMarginofSafety	Filter values based on the ply margin of safety.
FilteringTypeBondFailureIndex	Filter values based on the bonding failure index.
FilteringTypeBondStrengthRatio	Filter values based on the bonding strength ratio.
FilteringTypeBondMarginofSafety	Filter values based on the bonding margin of safety.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocationType

(Deprecated) Options for ply stresses calculation when using the solver shell stress resultant as an input for the advance report.

NXLC can compute ply stresses at the bottom, middle or top of each ply.

Deprecated:: Deprecated in NX8.5.0. There is no replacement for this enum. Each ply location is now set separatly thru CAE::LaminateSpreadsheetReportBuilder::PlyBottom , CAE::LaminateSpreadsheetReportBuilder::PlyMiddle and CAE::LaminateSpreadsheetReportBuilder::PlyTop .

Enumerator:

PlyLocationTypeBottom	Compute ply stresses at the bottom of each ply.
PlyLocationTypeMiddle	Compute ply stresses at the middle of each ply.
PlyLocationTypeTop	Compute ply stresses at the top of each ply.
PlyLocationTypeAll	Compute ply stresses at the bottom, middle and top of each ply.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInputType

Solver input type.

Enumerator:

SolverInputTypeShellStress	Use the solver shell stress resultants.
SolverInputTypePlyStress	Use the solver ply stresses.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortingType

Sorting rule for the spreadsheet post report.

Enumerator:

SortingTypeElementId	Sort results using the element id.
SortingTypePlyId	Sort results using the ply id.
SortingTypeStressXX	Sort results using the stress XX component.
SortingTypeStressYY	Sort results using the stress YY component.
SortingTypeStressZZ	Sort results using the stress ZZ component.
SortingTypeStressXY	Sort results using the stress XY component.
SortingTypeStressZX	Sort results using the stress ZX component.
SortingTypeStressYZ	Sort results using the stress YZ component.
SortingTypeStressMaxP	Sort results using the maximum principal stress.
SortingTypeStressMinP	Sort results using the minimum principal stress.
SortingTypeStressMaxS	Sort results using the maximum shear stress.
SortingTypeStrainXX	Sort results using the strain XX component.
SortingTypeStrainYY	Sort results using the strain XX component.
SortingTypeStrainZZ	Sort results using the strain XX component.
SortingTypeStrainXY	Sort results using the strain XX component.
SortingTypeStrainZX	Sort results using the strain XX component.
SortingTypeStrainYZ	Sort results using the strain XX component.
SortingTypeStrainMaxP	Sort results using the maximum principal strain.
SortingTypeStrainMinP	Sort results using the minimum principal strain.
SortingTypeStrainMaxS	Sort results using the maximum shear strain.
SortingTypePlyFailureIndex	Sort results based on the ply failure index.
SortingTypePlyStrengthRatio	Sort results based on the ply strength ratio.
SortingTypePlyMarginofSafety	Sort results based on the ply margin of safety.
SortingTypeBondFailureIndex	Sort results based on the bonding failure index.
SortingTypeBondStrengthRatio	Sort results based on the bonding strength ratio.
SortingTypeBondMarginofSafety	Sort results based on the bonding margin of safety.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrderType

Sorting order : acending or descending.

Enumerator:

SortOrderTypeAscending	Sort ascending.
SortOrderTypeDescending	Sort descending.

enum NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThreshType

The type of threshold used to filter results.

Enumerator:

ThreshTypeAboveTreshold	Filter out results above the specified value.
ThreshTypeBelowTreshold	Filter out results below the specified value.

Member Function Documentation

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::AbsValueFilter ( )

Returns the absolute value filtering option
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::AbsValueSort ( )

Returns the absolute value sorting option
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::DetailedOutput ( )

Returns the detailed output display
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateElementFilterBuilder* NXOpen::CAE::LaminateSpreadsheetReportBuilder::ElementFilter ( )

Returns the element filter
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureIndex ( )

Returns the failure index
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureIndexRule ( )

Returns the failure index summary table enveloping rule
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureModeType NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureMode ( )

Returns the failure mode
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilteringType NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilterType ( )

Returns the filter type to use for detailed output
Created in NX8.0.0.

License requirements : None

NXString NXOpen::CAE::LaminateSpreadsheetReportBuilder::Name ( )

Returns the name of the spreadsheet report
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyBottom ( )

Returns the state of the ply stress calculation at the bottom of each ply
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::LaminatePlyFilterBuilder* NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyFilter ( )

Returns the ply filter
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocationType NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocation ( )

Returns the ply location option for ply stresses calculation from the solver shell stress resultant

Deprecated:: Deprecated in NX8.5.0.

Use CAE::LaminateSpreadsheetReportBuilder::PlyBottom , CAE::LaminateSpreadsheetReportBuilder::PlyMiddle or CAE::LaminateSpreadsheetReportBuilder::PlyTop instead.

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyMiddle ( )

Returns the state of the ply stress calculation at the middle of each ply
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStrainOutput ( )

Returns the ply strains output control
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStrainRule ( )

Returns the ply strains summary table enveloping rule
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::CoordinateSystemType NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressCoordSys ( )

Returns the ply stresses and strains coordinate system
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressMaxP ( )

Returns the ply maximum principal stress and/or strain
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressMaxS ( )

Returns the ply maximum shear stress and/or strain
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressMinP ( )

Returns the ply minimum principal stress and/or strain
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressOutput ( )

Returns the ply stresses output control
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressRule ( )

Returns the ply stresses summary table enveloping rule
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressXX ( )

Returns the ply stress and/or strain XX component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressXY ( )

Returns the ply stress and/or strain XY component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressYY ( )

Returns the ply stress and/or strain YY component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressYZ ( )

Returns the ply stress and/or strain YZ component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressZX ( )

Returns the ply stress and/or strain ZX component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyStressZZ ( )

Returns the ply stress and/or strain ZZ component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyTop ( )

Returns the state of the ply stress calculation at the top of each ply
Created in NX8.5.0.

License requirements : None

double NXOpen::CAE::LaminateSpreadsheetReportBuilder::SafetyFactor ( )

Returns the safety factor
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::SafetyMargin ( )

Returns the margin of safety
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule NXOpen::CAE::LaminateSpreadsheetReportBuilder::SafetyMarginRule ( )

Returns the strength ratio summary table enveloping rule
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetAbsValueFilter ( bool absValueFilter )

Sets the absolute value filtering option
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

absValueFilter absvaluefilter

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetAbsValueSort ( bool absValueSort )

Sets the absolute value sorting option
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

absValueSort absvaluesort

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetDetailedOutput ( bool detailedOutput )

Sets the detailed output display
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

detailedOutput detailedoutput

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetFailureIndex ( bool failureIndex )

Sets the failure index
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

failureIndex failureindex

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetFailureIndexRule ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule failureIndexRule )

Sets the failure index summary table enveloping rule
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

failureIndexRule failureindexrule

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetFailureMode ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::FailureModeType failureMode )

Sets the failure mode
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

failureMode failuremode

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetFilterType ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::FilteringType filterType )

Sets the filter type to use for detailed output
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

filterType filtertype

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetName ( const NXString & name )

Sets the name of the spreadsheet report
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name name

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetName ( const char * name )

Sets the name of the spreadsheet report
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name name

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyBottom ( bool plyBottom )

Sets the state of the ply stress calculation at the bottom of each ply
Created in NX8.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyBottom plybottom

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyLocation ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::PlyLocationType plyLocation )

Sets the ply location option for ply stresses calculation from the solver shell stress resultant

Deprecated:: Deprecated in NX8.5.0.

Use CAE::LaminateSpreadsheetReportBuilder::SetPlyBottom , CAE::LaminateSpreadsheetReportBuilder::SetPlyMiddle or CAE::LaminateSpreadsheetReportBuilder::SetPlyTop instead.

Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyLocation plylocation

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyMiddle ( bool plyMiddle )

Sets the state of the ply stress calculation at the middle of each ply
Created in NX8.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyMiddle plymiddle

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStrainOutput ( bool plyStrainOutput )

Sets the ply strains output control
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStrainOutput plystrainoutput

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStrainRule ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule plyStrainRule )

Sets the ply strains summary table enveloping rule
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStrainRule plystrainrule

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressCoordSys ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::CoordinateSystemType plyStressCoordSys )

Sets the ply stresses and strains coordinate system
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressCoordSys plystresscoordsys

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressMaxP ( bool plyStressMaxP )

Sets the ply maximum principal stress and/or strain
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressMaxP plystressmaxp

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressMaxS ( bool plyStressMaxS )

Sets the ply maximum shear stress and/or strain
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressMaxS plystressmaxs

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressMinP ( bool plyStressMinP )

Sets the ply minimum principal stress and/or strain
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressMinP plystressminp

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressOutput ( bool plyStressOutput )

Sets the ply stresses output control
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressOutput plystressoutput

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressRule ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule plyStressRule )

Sets the ply stresses summary table enveloping rule
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressRule plystressrule

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressXX ( bool plyStressXX )

Sets the ply stress and/or strain XX component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressXX plystressxx

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressXY ( bool plyStressXY )

Sets the ply stress and/or strain XY component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressXY plystressxy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressYY ( bool plyStressYY )

Sets the ply stress and/or strain YY component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressYY plystressyy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressYZ ( bool plyStressYZ )

Sets the ply stress and/or strain YZ component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressYZ plystressyz

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressZX ( bool plyStressZX )

Sets the ply stress and/or strain ZX component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressZX plystresszx

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyStressZZ ( bool plyStressZZ )

Sets the ply stress and/or strain ZZ component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyStressZZ plystresszz

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetPlyTop ( bool plyTop )

Sets the state of the ply stress calculation at the top of each ply
Created in NX8.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

plyTop plytop

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSafetyFactor ( double safetyFactor )

Sets the safety factor
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

safetyFactor safetyfactor

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSafetyMargin ( bool safetyMargin )

Sets the margin of safety
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

safetyMargin safetymargin

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSafetyMarginRule ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule safetyMarginRule )

Sets the strength ratio summary table enveloping rule
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

safetyMarginRule safetymarginrule

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantFx ( bool shellResultantFx )

Sets the shell stress resultant Fx component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantFx shellresultantfx

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantFxy ( bool shellResultantFxy )

Sets the shell stress resultant Fxy component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantFxy shellresultantfxy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantFy ( bool shellResultantFy )

Sets the shell stress resultant Fy component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantFy shellresultantfy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantMx ( bool shellResultantMx )

Sets the shell stress resultant Mx component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantMx shellresultantmx

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantMxy ( bool shellResultantMxy )

Sets the shell stress resultant Mxy component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantMxy shellresultantmxy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantMy ( bool shellResultantMy )

Sets the shell stress resultant My component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantMy shellresultantmy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantQx ( bool shellResultantQx )

Sets the shell stress resultant Qx component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantQx shellresultantqx

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetShellResultantQy ( bool shellResultantQy )

Sets the shell stress resultant Qy component
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

shellResultantQy shellresultantqy

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSolverInput ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInputType solverInput )

Sets the solver input
Created in NX9.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

solverInput solverinput

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSolverPlyStress ( bool solverPlyStress )

Sets the solver ply stresses

Deprecated:: Deprecated in NX9.0.0.

Use CAE::LaminateSpreadsheetReportBuilder::SetSolverInput instead.

Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

solverPlyStress solverplystress

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSolverShellResultant ( bool solverShellResultant )

Sets the solver shell stress resultant

Deprecated:: Deprecated in NX9.0.0.

Use CAE::LaminateSpreadsheetReportBuilder::SetSolverInput instead.

Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

solverShellResultant solvershellresultant

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSortOrder ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrderType sortOrder )

Sets the sorting order
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

sortOrder sortorder

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetSortType ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortingType sortType )

Sets the sorting criteria
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

sortType sorttype

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetStrengthRatio ( bool strengthRatio )

Sets the strength ratio
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

strengthRatio strengthratio

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetStrengthRatioRule ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule strengthRatioRule )

Sets the strength ratio summary table enveloping rule
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

strengthRatioRule strengthratiorule

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetThresholdType ( NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThreshType thresholdType )

Sets the filtering threshold type
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

thresholdType thresholdtype

void NXOpen::CAE::LaminateSpreadsheetReportBuilder::SetThresholdValue ( double thresholdValue )

Sets the filtering threshold value
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

thresholdValue thresholdvalue

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantFx ( )

Returns the shell stress resultant Fx component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantFxy ( )

Returns the shell stress resultant Fxy component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantFy ( )

Returns the shell stress resultant Fy component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantMx ( )

Returns the shell stress resultant Mx component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantMxy ( )

Returns the shell stress resultant Mxy component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantMy ( )

Returns the shell stress resultant My component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantQx ( )

Returns the shell stress resultant Qx component
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::ShellResultantQy ( )

Returns the shell stress resultant Qy component
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInputType NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverInput ( )

Returns the solver input
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverPlyStress ( )

Returns the solver ply stresses

Deprecated:: Deprecated in NX9.0.0.

Use CAE::LaminateSpreadsheetReportBuilder::SolverInput instead.

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::SolverShellResultant ( )

Returns the solver shell stress resultant

Deprecated:: Deprecated in NX9.0.0.

Use CAE::LaminateSpreadsheetReportBuilder::SolverInput instead.

Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrderType NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortOrder ( )

Returns the sorting order
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortingType NXOpen::CAE::LaminateSpreadsheetReportBuilder::SortType ( )

Returns the sorting criteria
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::LaminateSpreadsheetReportBuilder::StrengthRatio ( )

Returns the strength ratio
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::EnvelopeRule NXOpen::CAE::LaminateSpreadsheetReportBuilder::StrengthRatioRule ( )

Returns the strength ratio summary table enveloping rule
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThreshType NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThresholdType ( )

Returns the filtering threshold type
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::LaminateSpreadsheetReportBuilder::ThresholdValue ( )

Returns the filtering threshold value
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_LaminateSpreadsheetReportBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
