Represents a Laminate, which is a specialized kind of CAE::PhysicalPropertyTable. More...

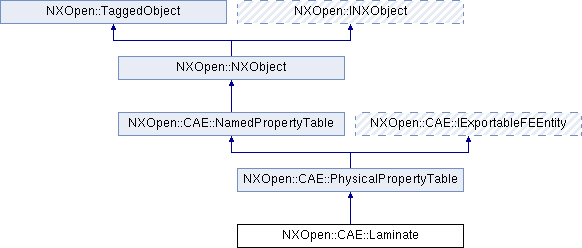

Inheritance diagram for NXOpen::CAE::Laminate:

Public Types
enum	ZoneType { ZoneTypeOrphanElems, ZoneTypeOverlapElems, ZoneTypeRegular, ZoneTypeAll }
	Type of zones to export. More...

Public Member Functions
void	ClearLayup ()
	Removes all the ply groups and plies from the laminate physical Created in NX7.5.0.

void	ComputeZones ()
	Compute zones.

void	ExportInformation (const NXString &csvFilename)
	Export detailed laminate information to a CSV file.

void	ExportInformation (const char *csvFilename)
	Export detailed laminate information to a CSV file.

void	ExportLayup (const NXString &csvFilename)
	Export simple laminate definition to a csv file.

void	ExportLayup (const char *csvFilename)
	Export simple laminate definition to a csv file.

void	ExportZoneInformation (const NXString &csvFilename)
	Export zone information to a CSV file.

void	ExportZoneInformation (const char *csvFilename)
	Export zone information to a CSV file.

void	ExportZonesAsGroups (NXOpen::CAE::Laminate::ZoneType zoneType, int zoneIndex)
	For each zone in the current laminate physical property, create an element group Created in NX7.5.2.

void	ExportZonesAsLaminates (NXOpen::CAE::Laminate::ZoneType zoneType, int zoneIndex)
	For each zone in the current laminate physical property, create an equivalent laminate physical property Created in NX7.5.2.

void	Information (bool detailed)
	Output laminate info to an info window Corresponds to the info button in the Validation section of the Laminate Modeler dialog.

void	Optimize ()
	Perform laminate optimization giving the existing optimization configuration and outputs the results to a csv file.

NXOpen::CAE::PropertyTable *	Parameters ()
	Returns the intrinsic laminate properties that are not solver-specific Created in NX5.0.0.

NXOpen::CAE::LaminatePlyGroupCollection *	PlyGroups ()
	Returns the PlyGroup collection defining the layup of this laminate Created in NX3.0.0.

void	RefreshLinkedGroups ()
	Refresh the laminate linked ply group state Created in NX7.5.0.

void	SetUserDefinedInterLaminarFailureTheory (const NXString &name)
	Sets the user defined interlaminar failure theory name used in an extruded solid laminate Created in NX9.0.0.

void	SetUserDefinedInterLaminarFailureTheory (const char *name)
	Sets the user defined interlaminar failure theory name used in an extruded solid laminate Created in NX9.0.0.

void	SetUserDefinedPlyFailureTheory (const NXString &name)
	Sets the user defined ply failure theory name used in an extruded solid laminate Created in NX9.0.0.

void	SetUserDefinedPlyFailureTheory (const char *name)
	Sets the user defined ply failure theory name used in an extruded solid laminate Created in NX9.0.0.

void	StrengthAnalysis (const NXString &csvFilename)
	Perform a strength analysis on the current laminate definition using the current laminate strength loadcase.

void	StrengthAnalysis (const char *csvFilename)
	Perform a strength analysis on the current laminate definition using the current laminate strength loadcase.

NXOpen::CAE::PropertyTable *	StrengthLoadcase ()
	Returns the loadcase information used for the laminate strength analysis Created in NX8.0.0.

NXString	UserDefinedInterLaminarFailureTheory ()
	Returns the user defined interlaminar failure theory name used in an extruded solid laminate Created in NX9.0.0.

NXString	UserDefinedPlyFailureTheory ()
	Returns the user defined ply failure theory name used in an extruded solid laminate Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAE::PhysicalPropertyTable
virtual std::vector< NXString >	GetSolverCardSyntax ()
	Returns the solver card syntax strings for this entity.

Public Member Functions inherited from NXOpen::CAE::NamedPropertyTable
NXString	DescriptorType ()
	Returns the descriptor name defines the type of the property table in named property table holder Created in NX5.0.0.

int	Label ()
	Returns the label of the named property table holder Created in NX5.0.0.

NXString	LanguageName ()
	Returns the lanugage of the descriptor that defines the type of the property table in named property table holder Created in NX5.0.0.

NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the property table of the named property table holder Created in NX5.0.0.

void	SetLabel (int namedPropertyTableHolderLabel)
	Sets the label of the named property table holder Created in NX5.0.0.

NXString	SolverName ()
	Returns the solver of lanugage of the descriptor that defines the type of the property table in named property table holder Created in NX5.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a Laminate, which is a specialized kind of CAE::PhysicalPropertyTable.

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Laminate::ZoneType

Type of zones to export.

Enumerator:

ZoneTypeOrphanElems	Zone with elements that were not assigned to any zone.
ZoneTypeOverlapElems	Zone with elements that were assigned to more that one layup.
ZoneTypeRegular	Regular valid zone.
ZoneTypeAll	Export all zones.

Member Function Documentation

void NXOpen::CAE::Laminate::ClearLayup ( )

Removes all the ply groups and plies from the laminate physical
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::Laminate::ComputeZones ( )

Compute zones.

Reads the global layups, updates the draping and calculates the zones on the laminate. Existing zones will be overriden.
Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::Laminate::ExportInformation ( const NXString & csvFilename )

Export detailed laminate information to a CSV file.

       Corresponds to the CSV export button in the Validation section of the Laminate Modeler dialog.

Created in NX7.5.1.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters
