Manages the 3d array record
Not support KF.
More...

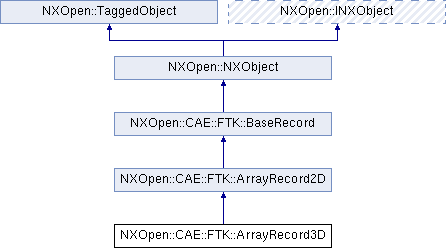

Inheritance diagram for NXOpen::CAE::FTK::ArrayRecord3D:
Public Member Functions | |
| void | SetZCoordinatePoints (const std::vector< double > &zCoordinatePoints) |
| Sets Z-Coordinate points Created in NX7.5.0. | |
| void | SetZCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *zCoordinateUnit) |
| Sets Z-Coordinate unit Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::CAE::FTK::ArrayRecord2D | |
| std::vector< double > | GetComplexData (std::vector< double > &yCoordinateReal, std::vector< double > &yCoordinateImag) |
| Gets complex points data. | |
| NXString | GetLegend () |
| Gets the legend. | |
| std::vector< double > | GetRealData (std::vector< double > &yCoordinatePoints) |
| Gets real points data. | |
| NXString | GetTitle () |
| Gets the title. | |
| NXOpen::CAE::FTK::BaseUnit * | GetXCoordinateUnit () |
| Gets X-Coordinate unit. | |
| NXOpen::CAE::FTK::BaseUnit * | GetYCoordinateUnit () |
| Gets Y-Coordinate unit. | |
| void | SetComplexData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag) |
| Sets complex points data Created in NX9.0.0. | |
| void | SetRealData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinatePoints) |
| Sets real points data Created in NX9.0.0. | |
| void | SetXCoordinatePoints (const std::vector< double > &xCoordinatePoints) |
| Sets X-Coordinate points | |
| void | SetXCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *xCoordinateUnit) |
| Sets X-Coordinate unit Created in NX7.5.0. | |
| void | SetYCoordinatePoints (const std::vector< double > &yCoordinatePoints) |
| Sets Y-Coordinate points, the supplied point data consists of real numbers | |
| void | SetYCoordinatePoints (const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag) |
| Sets Y-Coordinate points, the supplied point data consists of real and imaginary numbers | |
| void | SetYCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *yCoordinateUnit) |
| Sets Y-Coordinate unit Created in NX7.5.0. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::NXObject | |
| enum | AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 } |
| Specifies attribute type. More... | |
| enum | DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual } |
| Specifies the format of the date and time attribute. More... | |
Detailed Description
Manages the 3d array record
Not support KF.
Created in NX7.5.0.
Member Function Documentation
| void NXOpen::CAE::FTK::ArrayRecord3D::SetZCoordinatePoints | ( | const std::vector< double > & | zCoordinatePoints | ) |
Sets Z-Coordinate points
Created in NX7.5.0.
License requirements : nx_ftk ("NX Advanced Graphing")
- Parameters
-
zCoordinatePoints Z-Coordinate data
| void NXOpen::CAE::FTK::ArrayRecord3D::SetZCoordinateUnit | ( | NXOpen::CAE::FTK::BaseUnit * | zCoordinateUnit | ) |
Sets Z-Coordinate unit
Created in NX7.5.0.
License requirements : nx_ftk ("NX Advanced Graphing")
- Parameters
-
zCoordinateUnit Z-Coordinate unit
The documentation for this class was generated from the following file:
- CAE_FTK_ArrayRecord3D.hxx
