Manages the 2d array record
Not support KF. More...

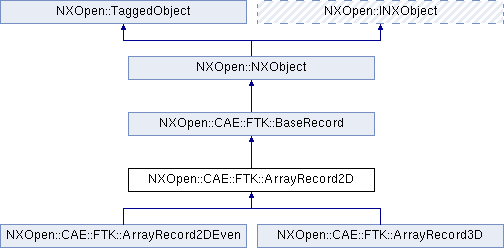

Inheritance diagram for NXOpen::CAE::FTK::ArrayRecord2D:

Public Member Functions
std::vector< double >	GetComplexData (std::vector< double > &yCoordinateReal, std::vector< double > &yCoordinateImag)
	Gets complex points data.

NXString	GetLegend ()
	Gets the legend.

std::vector< double >	GetRealData (std::vector< double > &yCoordinatePoints)
	Gets real points data.

NXString	GetTitle ()
	Gets the title.

NXOpen::CAE::FTK::BaseUnit *	GetXCoordinateUnit ()
	Gets X-Coordinate unit.

NXOpen::CAE::FTK::BaseUnit *	GetYCoordinateUnit ()
	Gets Y-Coordinate unit.

void	SetComplexData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag)
	Sets complex points data Created in NX9.0.0.

void	SetRealData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinatePoints)
	Sets real points data Created in NX9.0.0.

void	SetXCoordinatePoints (const std::vector< double > &xCoordinatePoints)
	Sets X-Coordinate points

void	SetXCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *xCoordinateUnit)
	Sets X-Coordinate unit Created in NX7.5.0.

void	SetYCoordinatePoints (const std::vector< double > &yCoordinatePoints)
	Sets Y-Coordinate points, the supplied point data consists of real numbers

void	SetYCoordinatePoints (const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag)
	Sets Y-Coordinate points, the supplied point data consists of real and imaginary numbers

void	SetYCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *yCoordinateUnit)
	Sets Y-Coordinate unit Created in NX7.5.0.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Manages the 2d array record
Not support KF.

Created in NX7.5.0.

Member Function Documentation

std::vector<double> NXOpen::CAE::FTK::ArrayRecord2D::GetComplexData	(	std::vector< double > &	yCoordinateReal,
		std::vector< double > &	yCoordinateImag
	)

Gets complex points data.

Returns: X-Coordinate data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

yCoordinateReal	Real part of Y-Coordinate data
yCoordinateImag	Imaginary part of Y-Coordinate data

NXString NXOpen::CAE::FTK::ArrayRecord2D::GetLegend ( )

Gets the legend.

Returns: Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

std::vector<double> NXOpen::CAE::FTK::ArrayRecord2D::GetRealData ( std::vector< double > & yCoordinatePoints )

Gets real points data.

Returns: X-Coordinate data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

yCoordinatePoints Y-Coordinate data

NXString NXOpen::CAE::FTK::ArrayRecord2D::GetTitle ( )

Gets the title.

Returns: Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

NXOpen::CAE::FTK::BaseUnit* NXOpen::CAE::FTK::ArrayRecord2D::GetXCoordinateUnit ( )

Gets X-Coordinate unit.

Returns: X-Coordinate unit
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

NXOpen::CAE::FTK::BaseUnit* NXOpen::CAE::FTK::ArrayRecord2D::GetYCoordinateUnit ( )

Gets Y-Coordinate unit.

Returns: Y-Coordinate unit
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

void NXOpen::CAE::FTK::ArrayRecord2D::SetComplexData	(	const std::vector< double > &	xCoordinatePoints,
		const std::vector< double > &	yCoordinateReal,
		const std::vector< double > &	yCoordinateImag
	)

Sets complex points data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xCoordinatePoints	X-Coordinate data
yCoordinateReal	Real part of Y-Coordinate data
yCoordinateImag	Imaginary part of Y-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2D::SetRealData	(	const std::vector< double > &	xCoordinatePoints,
		const std::vector< double > &	yCoordinatePoints
	)

Sets real points data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xCoordinatePoints	X-Coordinate data
yCoordinatePoints	Y-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2D::SetXCoordinatePoints ( const std::vector< double > & xCoordinatePoints )

Sets X-Coordinate points

Deprecated:: Deprecated in NX9.0.0.

Use ArrayRecord2D::SetRealData or ArrayRecord2D::SetComplexData instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xCoordinatePoints X-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2D::SetXCoordinateUnit ( NXOpen::CAE::FTK::BaseUnit * xCoordinateUnit )

Sets X-Coordinate unit
Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xCoordinateUnit X-Coordinate unit

void NXOpen::CAE::FTK::ArrayRecord2D::SetYCoordinatePoints ( const std::vector< double > & yCoordinatePoints )

Sets Y-Coordinate points, the supplied point data consists of real numbers

Deprecated:: Deprecated in NX9.0.0.

Use ArrayRecord2D::SetRealData or ArrayRecord2D::SetComplexData instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

yCoordinatePoints Y-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2D::SetYCoordinatePoints	(	const std::vector< double > &	yCoordinateReal,
		const std::vector< double > &	yCoordinateImag
	)

Sets Y-Coordinate points, the supplied point data consists of real and imaginary numbers

Deprecated:: Deprecated in NX9.0.0.

Use ArrayRecord2D::SetRealData or ArrayRecord2D::SetComplexData instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

yCoordinateReal	Real part of Y-Coordinate data
yCoordinateImag	Imaginary part of Y-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2D::SetYCoordinateUnit ( NXOpen::CAE::FTK::BaseUnit * yCoordinateUnit )

Sets Y-Coordinate unit
Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

yCoordinateUnit Y-Coordinate unit

The documentation for this class was generated from the following file:

CAE_FTK_ArrayRecord2D.hxx
