NXOpen::CAE::FTK::ArrayRecord2DEven Class Reference

Manages the 2d array record with even abscissa data
Not support KF. More...

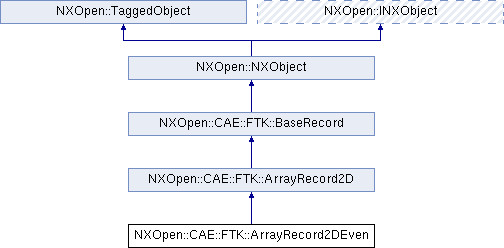

Inheritance diagram for NXOpen::CAE::FTK::ArrayRecord2DEven:

Public Member Functions
std::vector< double >	GetEvenComplexData (double *xMinimum, double *xIncrement, std::vector< double > &yCoordinateImag)
	Gets even complex data.
std::vector< double >	GetEvenRealData (double *xMinimum, double *xIncrement)
	Gets even real data.
void	SetEvenComplexData (double xMinimum, double xIncrement, const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag)
	Sets even complex data Created in NX9.0.0.
void	SetEvenRealData (double xMinimum, double xIncrement, const std::vector< double > &yCoordinatePoints)
	Sets even real data Created in NX9.0.0.
Public Member Functions inherited from NXOpen::CAE::FTK::ArrayRecord2D
std::vector< double >	GetComplexData (std::vector< double > &yCoordinateReal, std::vector< double > &yCoordinateImag)
	Gets complex points data.
NXString	GetLegend ()
	Gets the legend.
std::vector< double >	GetRealData (std::vector< double > &yCoordinatePoints)
	Gets real points data.
NXString	GetTitle ()
	Gets the title.
NXOpen::CAE::FTK::BaseUnit *	GetXCoordinateUnit ()
	Gets X-Coordinate unit.
NXOpen::CAE::FTK::BaseUnit *	GetYCoordinateUnit ()
	Gets Y-Coordinate unit.
void	SetComplexData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag)
	Sets complex points data Created in NX9.0.0.
void	SetRealData (const std::vector< double > &xCoordinatePoints, const std::vector< double > &yCoordinatePoints)
	Sets real points data Created in NX9.0.0.
void	SetXCoordinatePoints (const std::vector< double > &xCoordinatePoints)
	Sets X-Coordinate points
void	SetXCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *xCoordinateUnit)
	Sets X-Coordinate unit Created in NX7.5.0.
void	SetYCoordinatePoints (const std::vector< double > &yCoordinatePoints)
	Sets Y-Coordinate points, the supplied point data consists of real numbers
void	SetYCoordinatePoints (const std::vector< double > &yCoordinateReal, const std::vector< double > &yCoordinateImag)
	Sets Y-Coordinate points, the supplied point data consists of real and imaginary numbers
void	SetYCoordinateUnit (NXOpen::CAE::FTK::BaseUnit *yCoordinateUnit)
	Sets Y-Coordinate unit Created in NX7.5.0.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Manages the 2d array record with even abscissa data
Not support KF.

Created in NX7.5.0.

Member Function Documentation

std::vector<double> NXOpen::CAE::FTK::ArrayRecord2DEven::GetEvenComplexData	(	double *	xMinimum,
		double *	xIncrement,
		std::vector< double > &	yCoordinateImag
	)

Gets even complex data.

Returns

Real part of Y-Coordinate data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xMinimum	Minimum abscissa data value
xIncrement	Abscissa increment
yCoordinateImag	Imaginary part of Y-Coordinate data

std::vector<double> NXOpen::CAE::FTK::ArrayRecord2DEven::GetEvenRealData	(	double *	xMinimum,
		double *	xIncrement
	)

Gets even real data.

Returns

Y-Coordinate data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xMinimum	Minimum abscissa data value
xIncrement	Abscissa increment

void NXOpen::CAE::FTK::ArrayRecord2DEven::SetEvenComplexData	(	double	xMinimum,
		double	xIncrement,
		const std::vector< double > &	yCoordinateReal,
		const std::vector< double > &	yCoordinateImag
	)

Sets even complex data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xMinimum	Minimum abscissa data value
xIncrement	Abscissa increment
yCoordinateReal	Real part of Y-Coordinate data
yCoordinateImag	Imaginary part of Y-Coordinate data

void NXOpen::CAE::FTK::ArrayRecord2DEven::SetEvenRealData	(	double	xMinimum,
		double	xIncrement,
		const std::vector< double > &	yCoordinatePoints
	)

Sets even real data
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

xMinimum	Minimum abscissa data value
xIncrement	Abscissa increment
yCoordinatePoints	Y-Coordinate data

---

The documentation for this class was generated from the following file:

• CAE_FTK_ArrayRecord2DEven.hxx
